Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

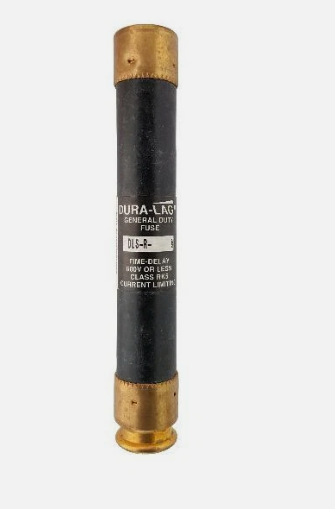

DLS-R-10
DLS-R-10 is a 10A, 600V, Class RK5 dual element time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann Dura-Lag fuse provides industry-standard time-delay performance and high interrupting capacity for demanding power distribution environments. The DLS-R-10 fuse features a dual-element construction for superior overload and short-circuit protection, making it ideal for use in mains, feeders, and branch circuits. It is current-limiting and offers a time-delay of 10 seconds at 500% rated current, ensuring compatibility with motor loads and temporary overloads.
- Amperage: 10A
- Voltage Rating: 600Vac (or less)
- Class: RK5
- Interrupting Rating: 200,000A RMS Symmetrical
- dc Interrupting Rating: 20,000A
- Series/Frame: Dura-Lag DLS-R
- Mounting Type: Ferrule
- Agency Certifications: UL Listed, CSA Certified
- Application: Power distribution system mains, feeders, branch circuits
- Time-Delay: 10 seconds at 500% rated current
- Construction: Dual-element, current-limiting
- Standards: UL 248-12, CSA C22.2 No. 248.12
Specifications
- Part Number: DLS-R-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Dura-Lag
- Type : DLS-R
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 5
