DLN-R-25 - Eaton 25A 250V Class RK5 Dual-Element Time-Delay Fuse, 200kA Interrupt Rating, Ferrule Mount, UL/CSA Certified

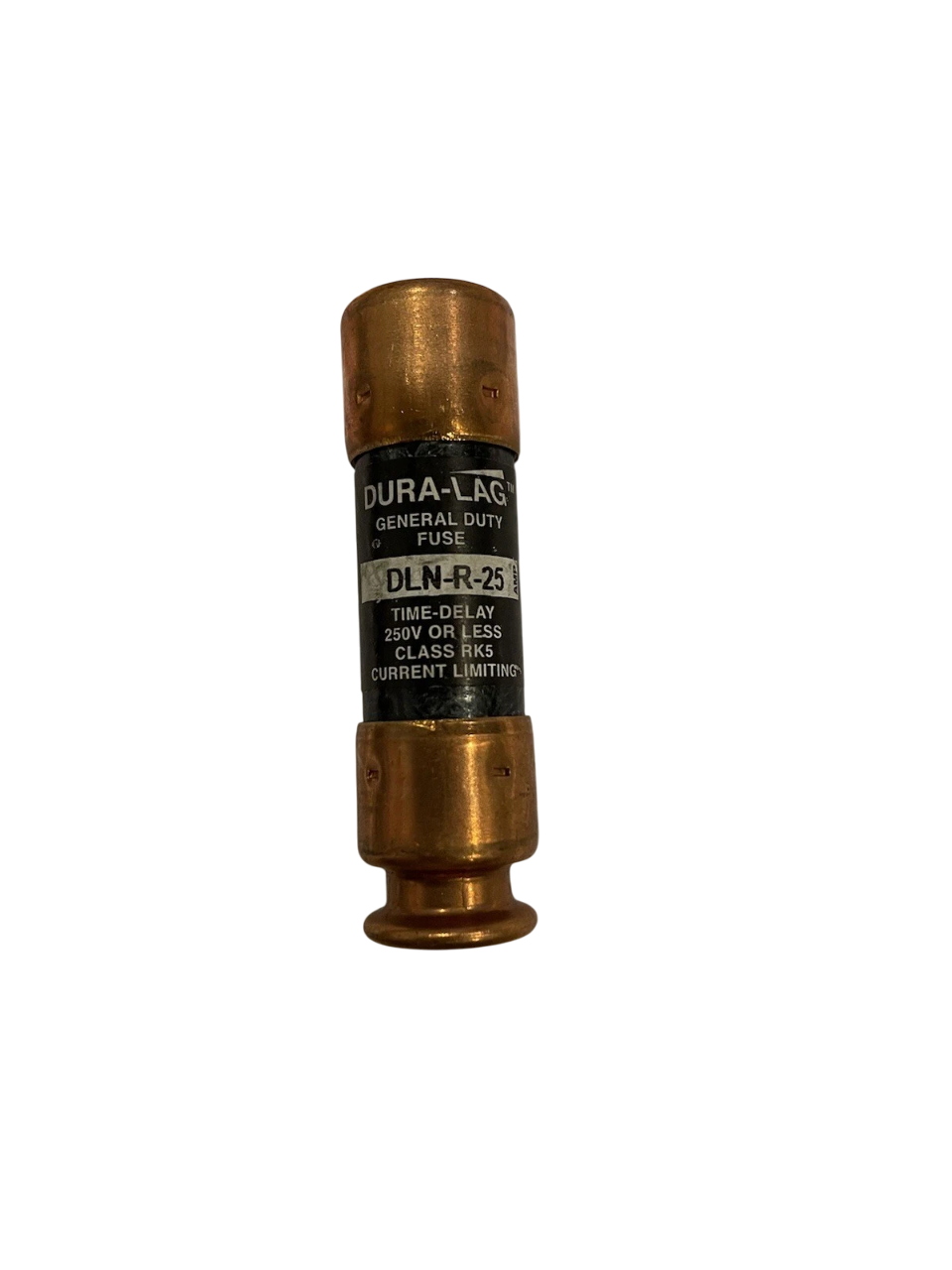

DLN-R-25

DLN-R-25 is a dual-element, time-delay fuse from Eaton, designed for reliable protection of AC power distribution systems, feeders, and branch circuits.

This current-limiting fuse features an industry-standard time-delay of 10 seconds at 500% rated current, making it ideal for circuits with inrush currents such as motors and transformers. The DLN-R-25 is UL and CSA certified, ensuring compliance with North American safety standards, and is rated for 200,000A RMS symmetrical interrupting capacity.

Key Specifications
• Amperage: 25A
• Voltage: 250V AC (or less)
• Poles: Single
• Mounting Type: Ferrule (rejection type)
• Interrupt Rating: 200,000A RMS symmetrical, 20,000A DC
• Series/Frame: DLN-R (Dura-Lag)
• Trip Unit: Dual-element, time-delay (10 seconds minimum at 500% rated current)
• Certifications: UL Listed (Std. 248-12, Class RK5, Guide 198E, File E4273), CSA Certified (C22.2 No. 248.12, Class 1422-02, File 53787)
• Application: AC power distribution system mains, feeders, branch circuits
• Construction: Current-limiting, rejection feature
• Dimensions: 2" x 0.56" (for 1-30A range)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DLN-R-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Dura-Lag
• Type : DLN-R
• Voltage : 250
• Amperage : 25
• AIC rating : 200kA@250V
• Class Rating : RK5
• Barrels : 1

Product Data

• Weight : 5
