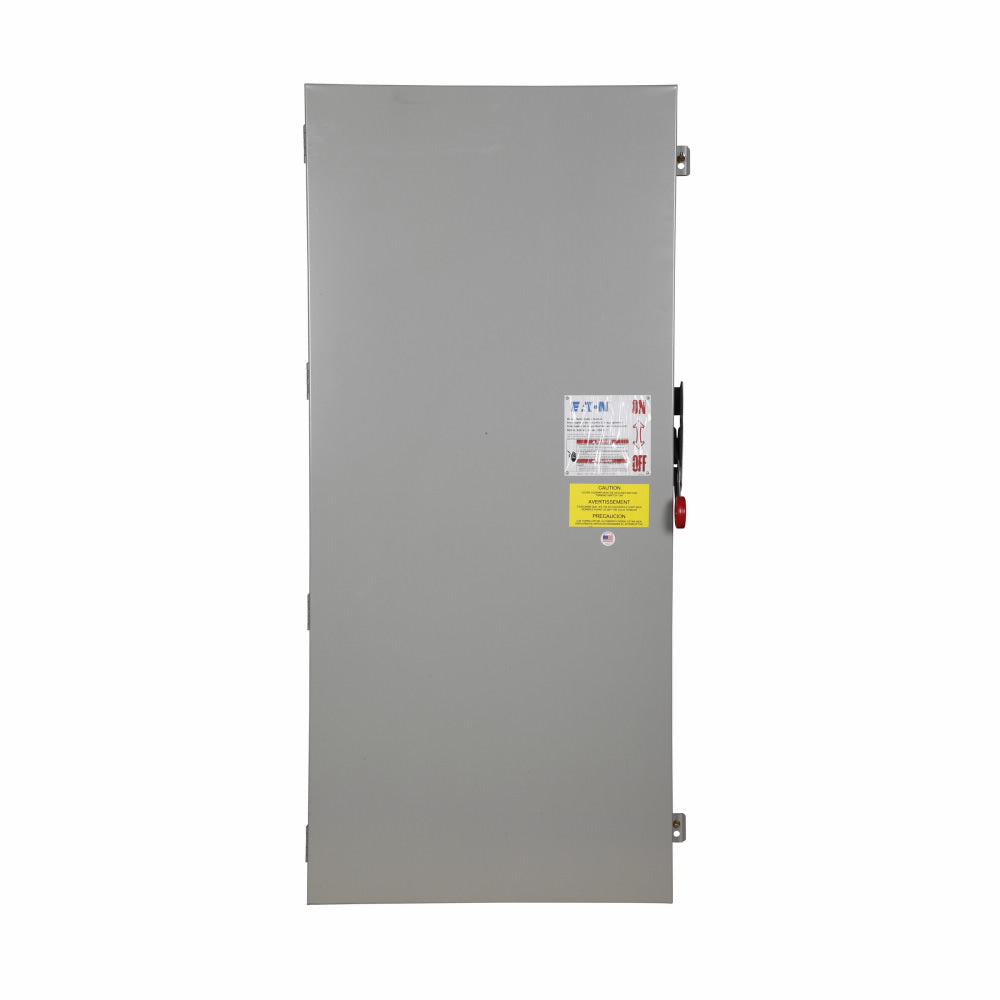

DH367UGK - Cutler Hammer 800A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 1

DH367UGK

DH367UGK is a Cutler Hammer heavy duty non-fusible safety switch designed for demanding industrial applications.This 3-pole, 3-wire single-throw switch is rated for 800 amps and 600 volts AC with a NEMA 1 painted steel enclosure. It features a 200kA interrupting rating at 600V and supports up to 500 HP at 480/600 VAC with time delay. The switch is UL listed and suitable for service entrance use with optional neutral or ground lug kits. Its robust construction ensures reliable operation and safety compliance.

• Amperage: 800A
• Voltage: 600V AC
• Poles: 3
• Type: Single-throw, Non-fusible
• Enclosure: NEMA 1, Painted Steel
• Interrupt Rating: 200kA at 600V
• Horsepower Rating: 500 HP at 480/600 VAC Time Delay
• Phase: 3
• UL Listed
• Suitable for Service Entrance Use
• Dimensions: Approx. 55.82" H x 26.37" W x 14.07" D
• Weight: Approx. 245 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH367UGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SKHA

Product Data

• UPC : 782113589749
• GTIN : 00782113206585
• Country of Origin : United States
• Dimensions : 14.07 in x 55.82 in x 26.37 in (Length/Depth x Height x Width)
• Weight : 245
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
