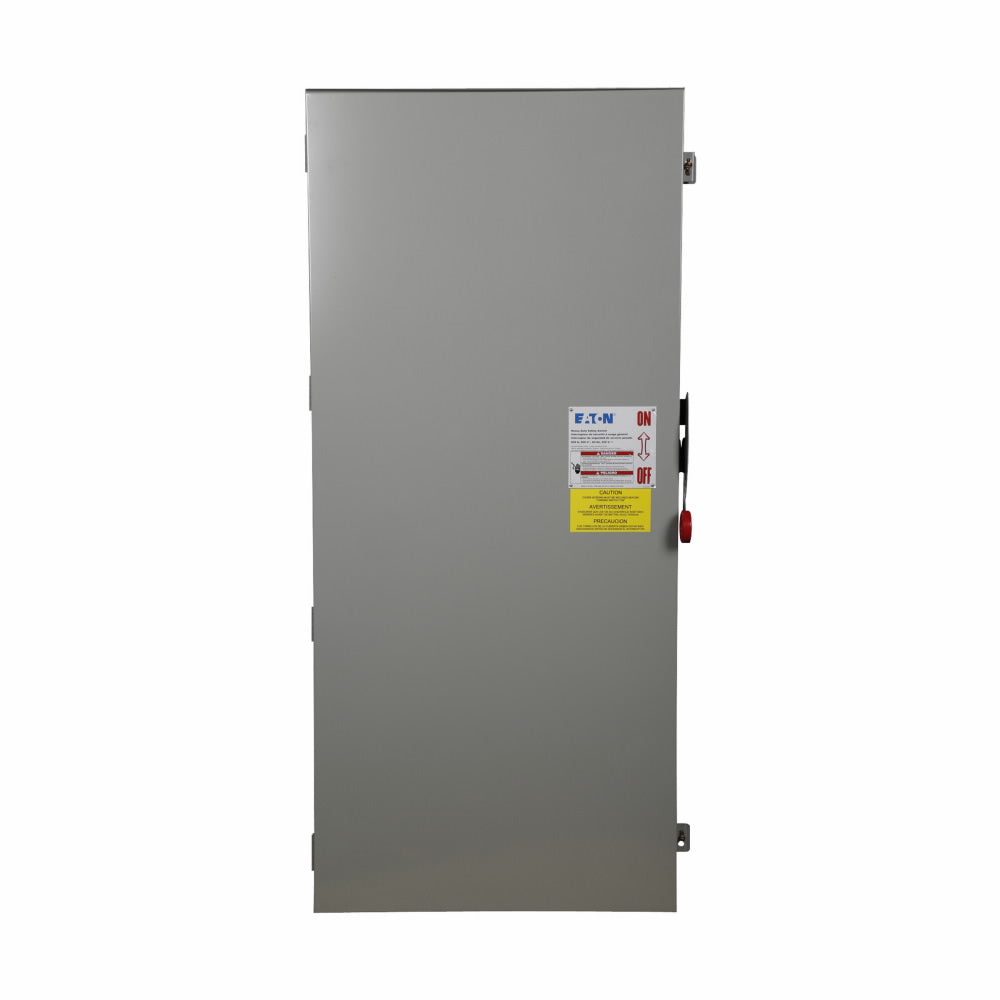

DH367NRK - Cutler Hammer 800A 600V 3P Fusible Safety Switch NEMA 3R

DH367NRK

DH367NRK is a heavy duty single-throw fused safety switch designed for demanding industrial and commercial power distribution applications. This Cutler Hammer DH Series switch features a 3 pole, 4 wire configuration with a neutral, rated for 800 amps at 600 volts AC. The enclosure is constructed from painted galvanized steel and carries a NEMA 3R rating for outdoor use, with Class L fuse provisions and a 100kA interrupt rating. Ideal for main disconnects and service entrance installations, this switch supports up to 500 HP at 480/600V three-phase.

• Part Number: DH367NRK
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: DH Series
• Amperage Rating: 800A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Number of Wires: 4 (with neutral)
• Mounting Type: Wall Mount
• Interrupt Rating: 100kA @ 600V
• Fuse Class: Class L
• Enclosure Rating: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Max HP: 500 HP (3PH @ 480/600V)
• Certifications: UL Listed
• Compliance: NEC 230.62 (C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH367NRK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 100kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : SGHA

Product Data

• UPC : 782113639277
• GTIN : 00782113639277
• Country of Origin : United States
• Dimensions : 57.5 in x 12.38 in x 27.5 in (Length/Depth x Height x Width)
• Weight : 210 lb
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
