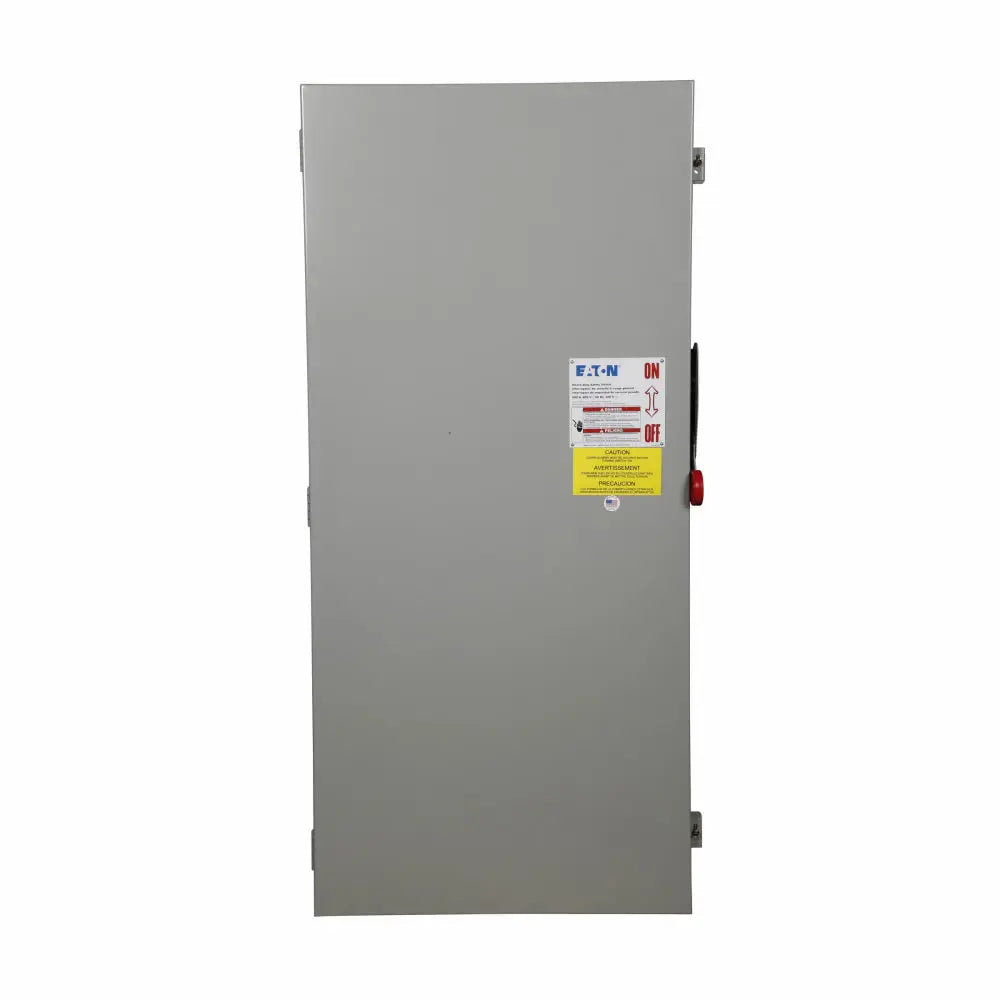

DH366FGK - Cutler Hammer Heavy Duty 3-Pole 600A 600V Fusible Safety Switch Disconnect NEMA 1, Class H, DH Series, UL Listed

DH366FGK

DH366FGK is a Cutler Hammer heavy duty fusible safety switch designed for reliable power distribution and service entrance applications.

This three-pole, three-wire safety switch features a 600A current rating, 600V AC voltage rating, and is housed in a painted steel NEMA 1 enclosure. It is fusible without neutral, accepts Class H fuses, and is suitable for service entrance use with a neutral kit installed. The switch is UL Listed and complies with NEC 230.62 (C) for barrier requirements. Maximum horsepower ratings are 200 HP @ 240V, 400 HP @ 480V, and 500 HP @ 600V (3-phase).

Key Specifications
• Part Number: DH366FGK
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: NEMA 1 (indoor)
• Interrupt Rating: Not specified in available data
• Series/Frame: DH Series
• Trip Unit: Not applicable (manual safety switch)
• Certifications: UL Listed, NEC 230.62 (C) compliant
• Fuse Class: Class H
• Enclosure Material: Painted steel
• Warranty: 1 year from installation or 18 months from shipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH366FGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : TED

Product Data

• UPC : 782113207551
• GTIN : 00782113207551
• Country of Origin : United States
• Dimensions : 58 in x 12 in x 27.5 in (Length/Depth x Height x Width)
• Weight : 155
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
