Product Info
- Manufacturer:Eaton
Description
DH365UGKN

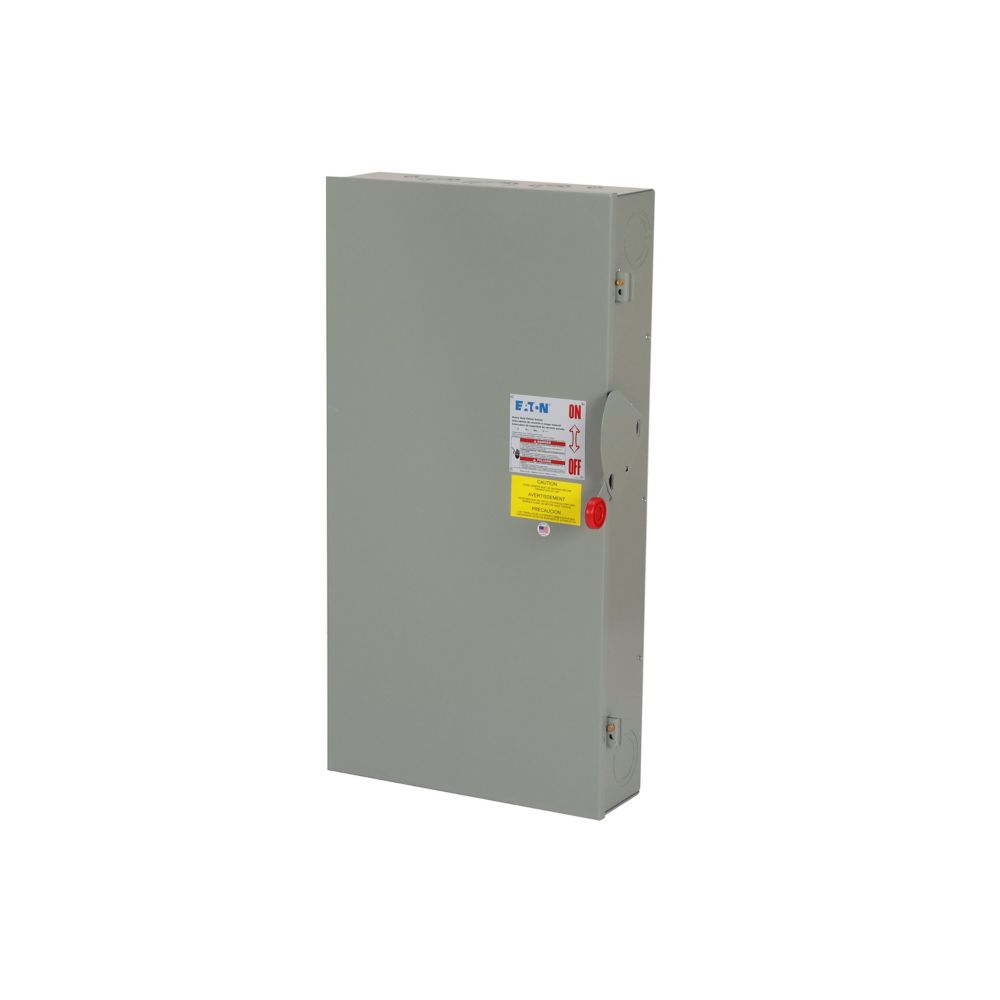

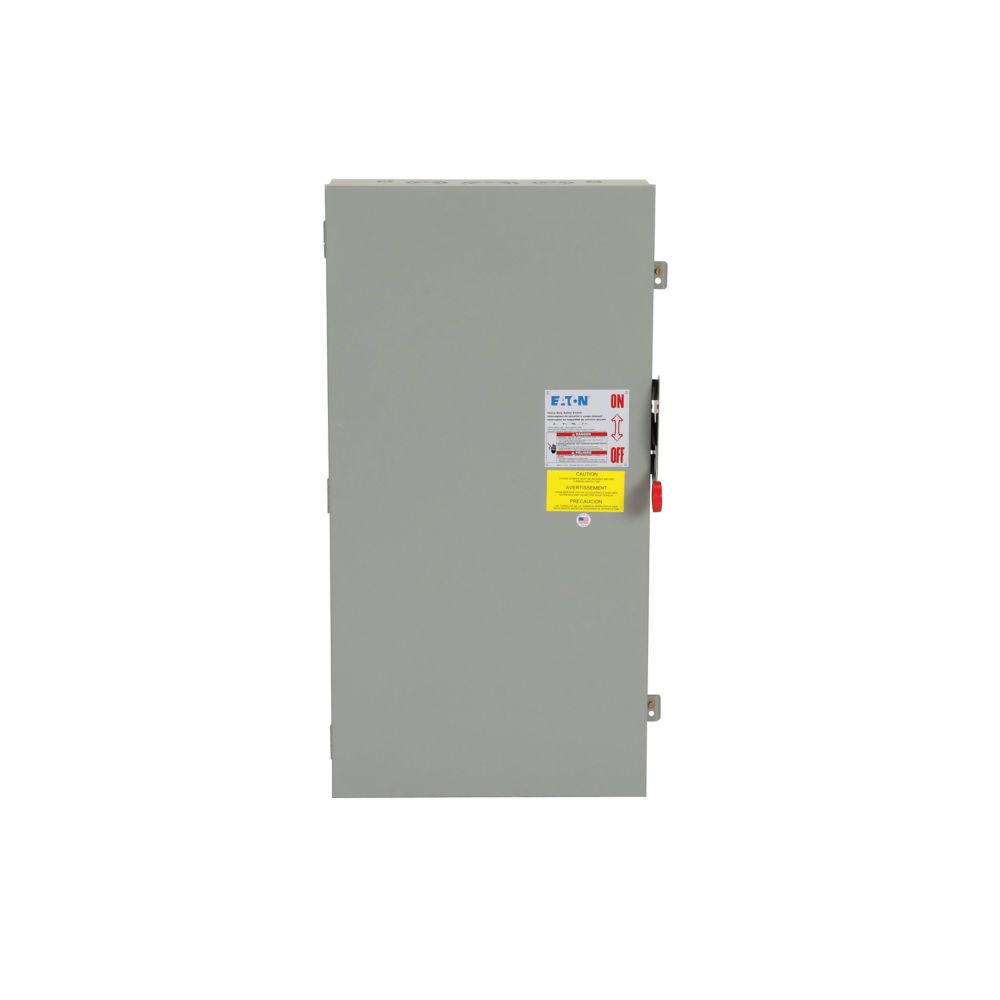

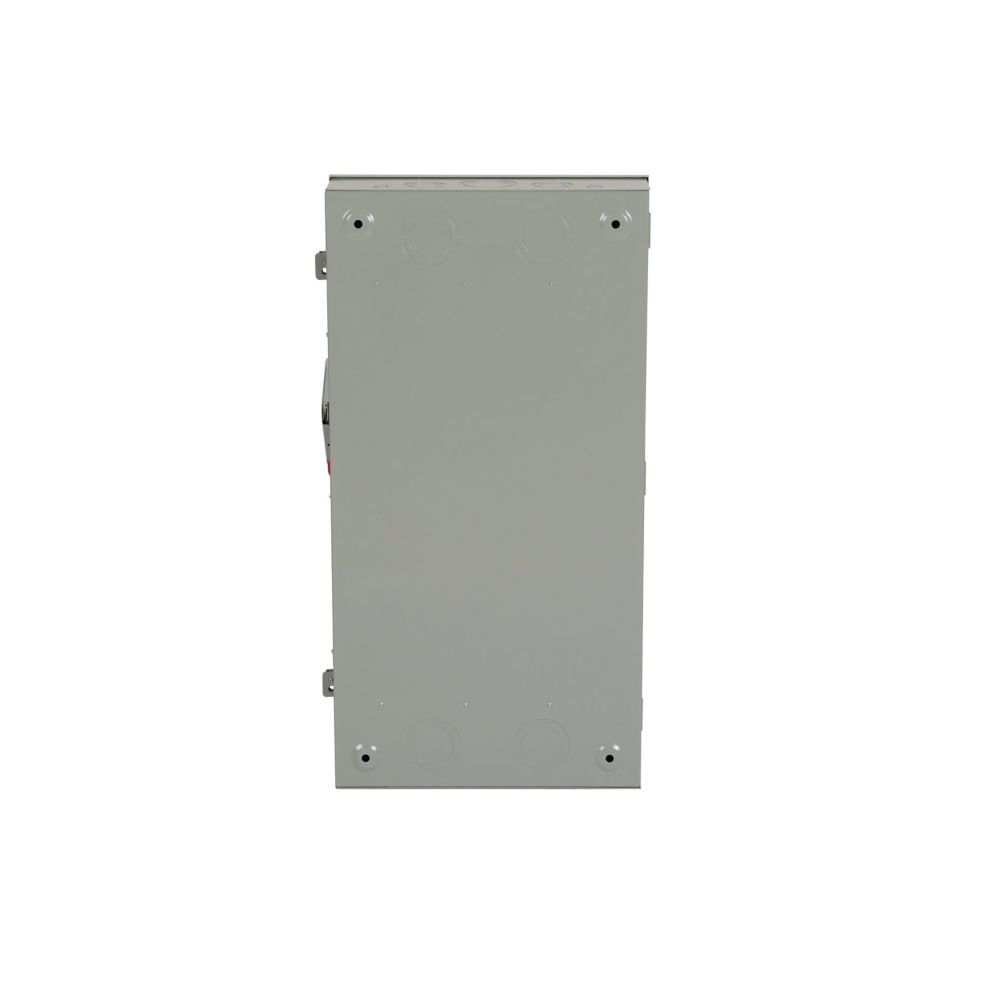

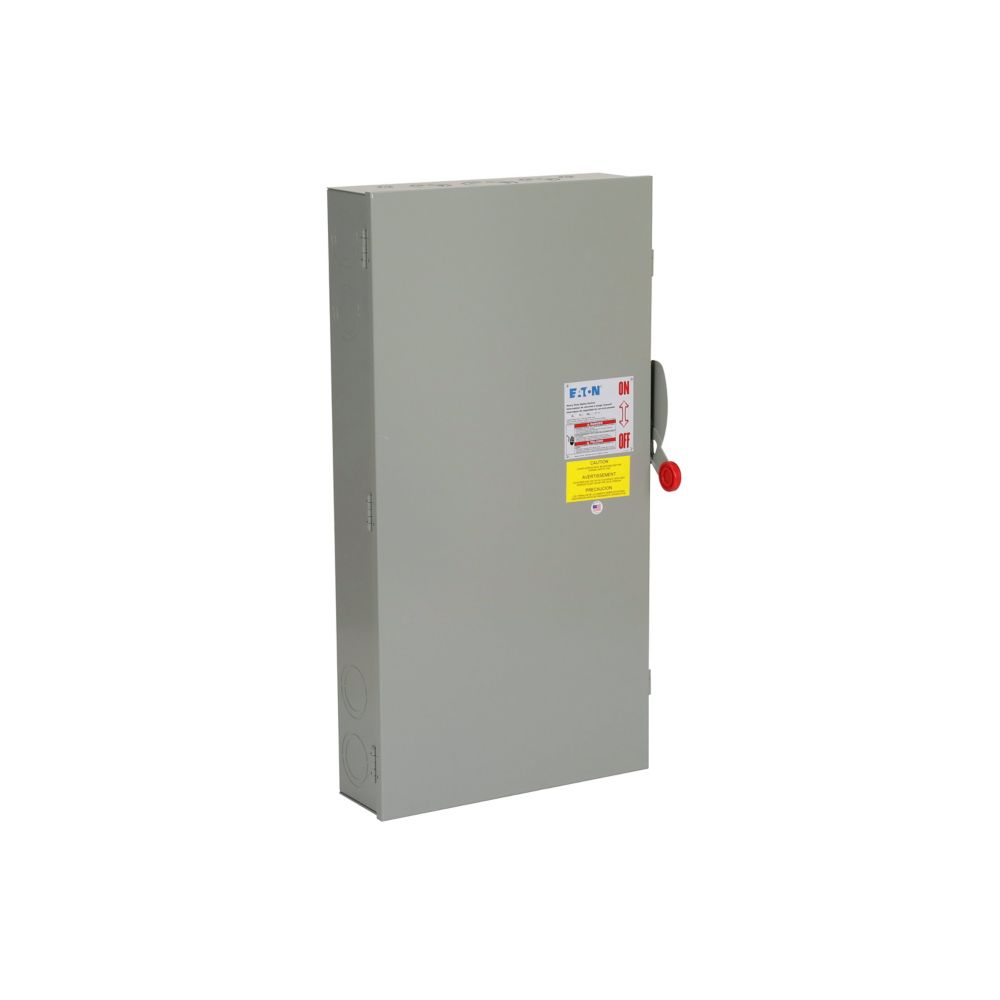

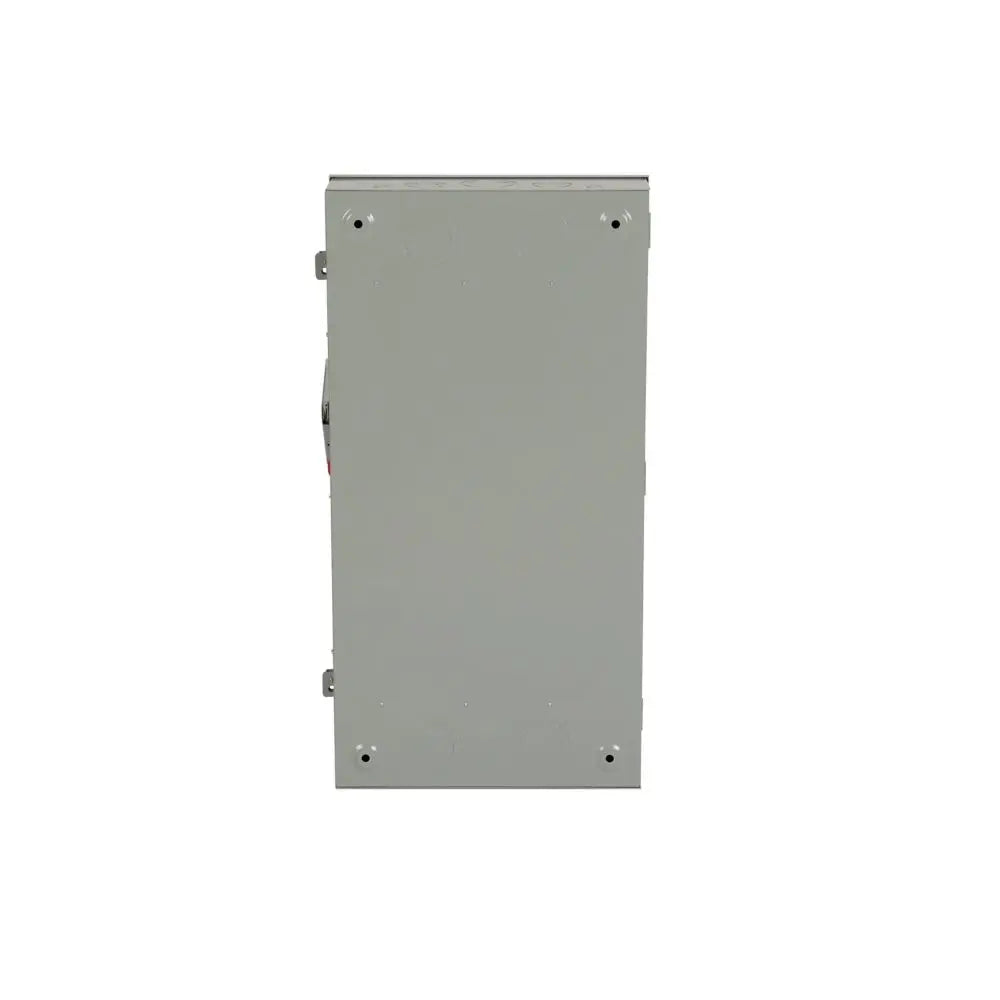

DH365UGKN is a heavy duty, non-fusible safety switch from Eaton Cutler Hammer designed for reliable power distribution and service entrance applications.This 3-pole, single-throw safety switch features a 400 ampere rating and a 600 volt maximum voltage rating. It is housed in a NEMA 1 painted steel enclosure suitable for indoor use. The switch supports up to 350 HP motor load at 600 VAC with time delay and is UL listed for safety and compliance. It includes a solid neutral and meets NEC 230.62 (C) barrier requirements.
- Key Specifications
- Amperage Rating: 400A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure Type: NEMA 1 Painted Steel
- Fuse Configuration: Non-Fusible
- Series/Frame: K Series
- Trip Unit: Single Throw
- Certifications: UL Listed
- Horsepower Rating: Up to 350 HP at 600 VAC
- Compliance: NEC 230.62 (C) Barrier
Specifications
- Part Number: DH365UGKN
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Nema Rating : NEMA 1
- Metal Type : Painted Steel
Product Data
- UPC : 78667918571
- GTIN : 00786679000000
- Country of Origin : United States
- Dimensions : 12.31 in x 44.31 in x 24.12 in (Length/Depth x Height x Width)
- Weight : 115
