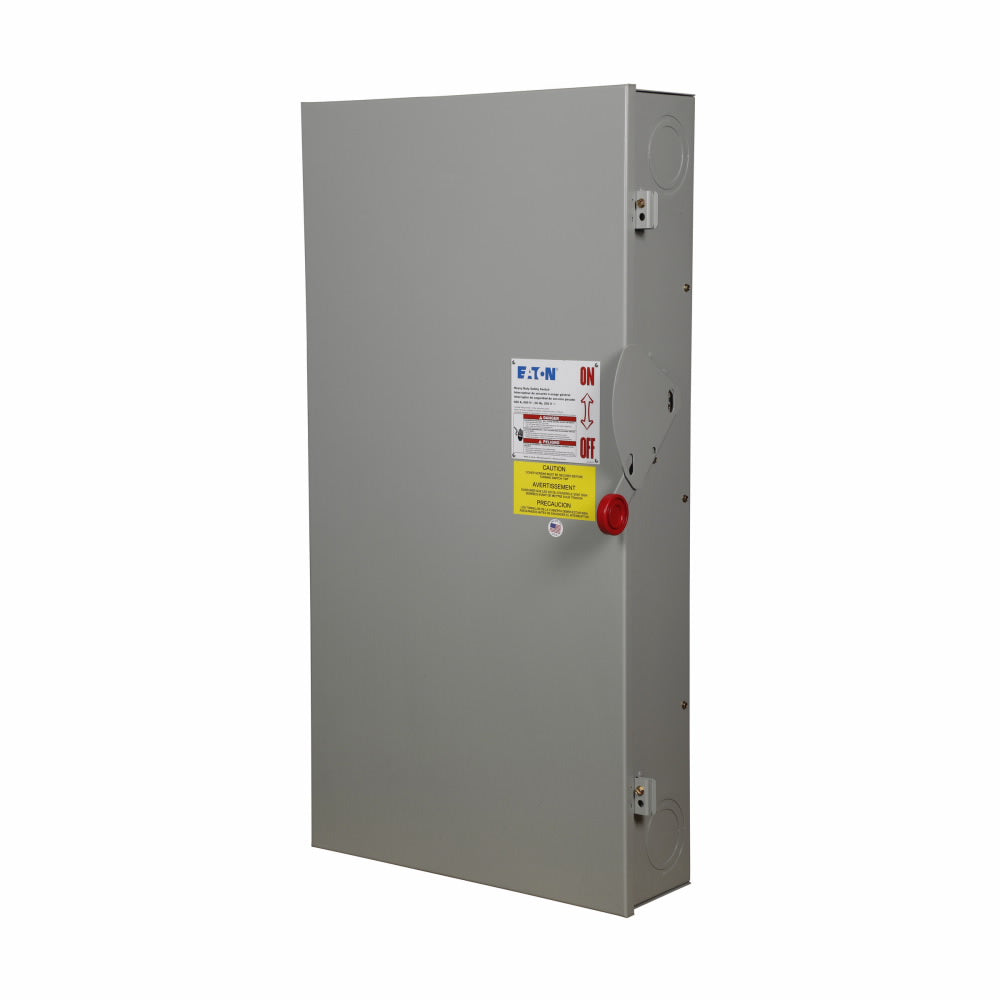

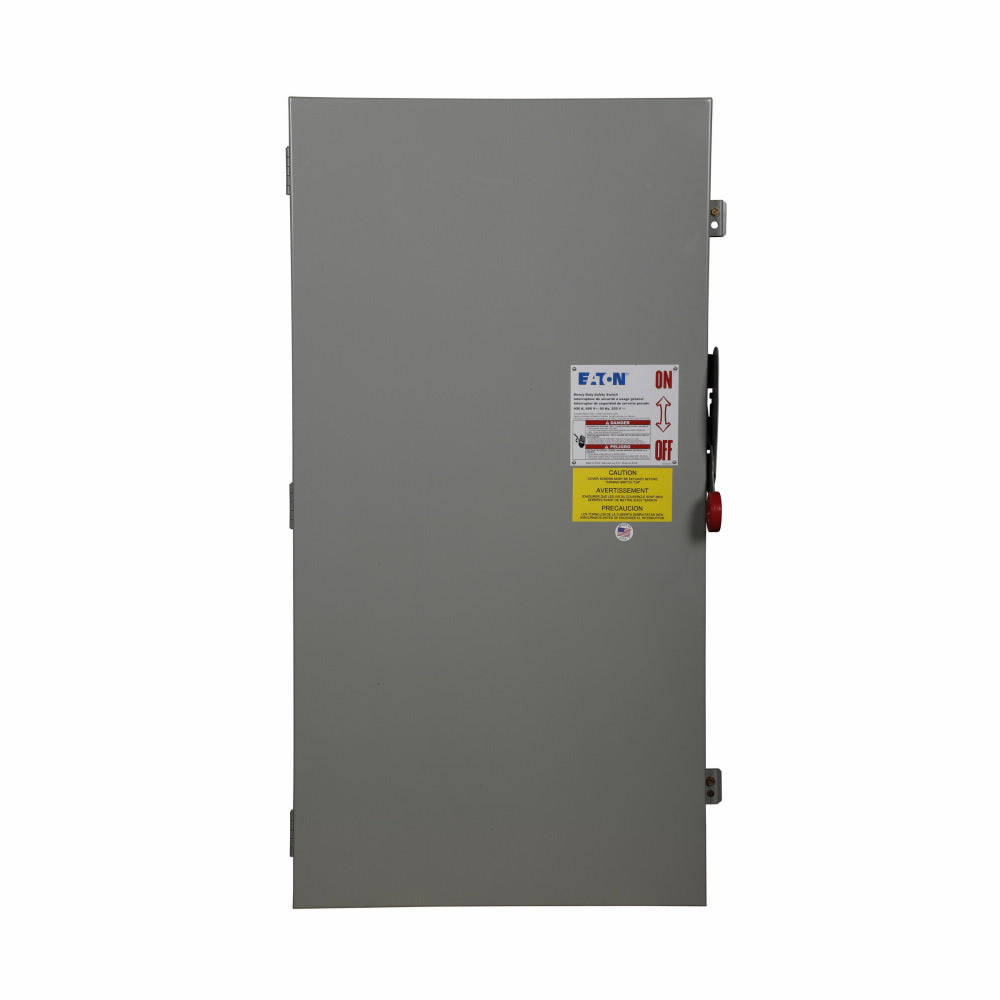

DH365UGK - Cutler Hammer 3 Pole 400 Amp 600 Volt Heavy Duty Non-Fusible Safety Switch, NEMA 1, K Series, 200kA AIC, Single Throw, Painted Steel Enclosure

DH365UGK

DH365UGK is a Cutler Hammer heavy duty non-fusible safety switch designed for reliable service entrance and distribution applications.

This 3-pole, single-throw safety switch features a 400 Amp current rating, 600 Volt AC voltage rating, and a robust painted steel NEMA 1 enclosure. It is part of the K Series and is suitable for use where a non-fusible disconnect is required, offering a high interrupting capacity for enhanced safety and compliance.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: NEMA 1 (indoor)
• Interrupt Rating: 200kA @ 600V
• Series/Frame: K Series
• Trip Unit: Not applicable (non-fusible)
• Certifications: UL Listed
• Enclosure Material: Painted steel
• HP Rating: 125 HP @ 240V, 250 HP @ 480V, 350 HP @ 600V
• Type: Single-throw, non-fusible
• Compliance: NEC 230.62(C) compliant barrier

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH365UGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SKLA

Product Data

• UPC : 782113207223
• GTIN : 00782113207223
• Country of Origin : United States
• Dimensions : 12.31 in x 44.31 in x 24.12 in (Length/Depth x Height x Width)
• Weight : 175
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
