Product Info
- Manufacturer:Eaton
- Sub-Category:Disconnect
Description
DH364UDKW

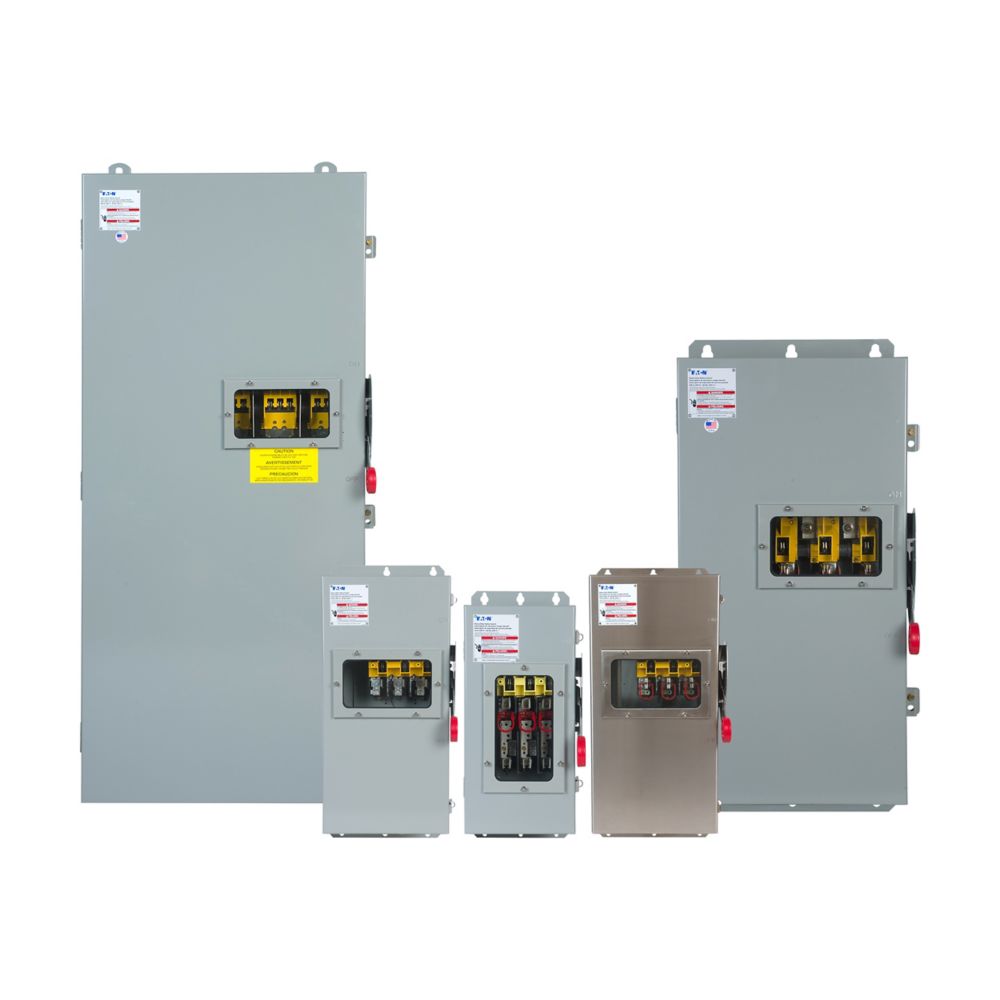

DH364UDKW is a heavy duty non-fusible safety switch from Eaton designed for reliable power distribution and safety applications.This Eaton switch features a 200 ampere rating, 600 volt maximum voltage, and a three-pole, three-wire configuration. It is a single-throw, non-fusible type with an enhanced visible blade for safety and operational clarity. The enclosure is constructed of painted galvanized steel and rated NEMA 12, suitable for indoor use with protection against dust and dripping non-corrosive liquids. The switch supports time delay horsepower ratings up to 150 HP at 600 VAC three-phase. It is UL listed for safety and quality assurance.
- Key Specifications
- Amperage: 200A
- Voltage Rating: 600 V
- Number of Poles: Three-pole
- Type: Single-throw, Non-fusible
- Enclosure: Painted galvanized steel
- NEMA Rating: NEMA 12
- Horsepower Ratings: Up to 150 HP at 600 VAC 3-phase
- Enhanced visible blade
- UL Listed
- Part Number: DH364UDKW
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
- Compatible Frames : TJK
- UPC : 782114140833
- GTIN : 00782114140833
- Country of Origin : United States
- Dimensions : 11.5 in x 34.38 in x 16 in (Length/Depth x Height x Width)
- Weight : 43
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
