DH364NRK - Cutler Hammer 200A 600V 3P Fusible Safety Switch NEMA 3R Class H

Save $1,967.24
SKU: DH364NRK-New
Condition: New
Price:
$1,624.76 $3,592.00
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

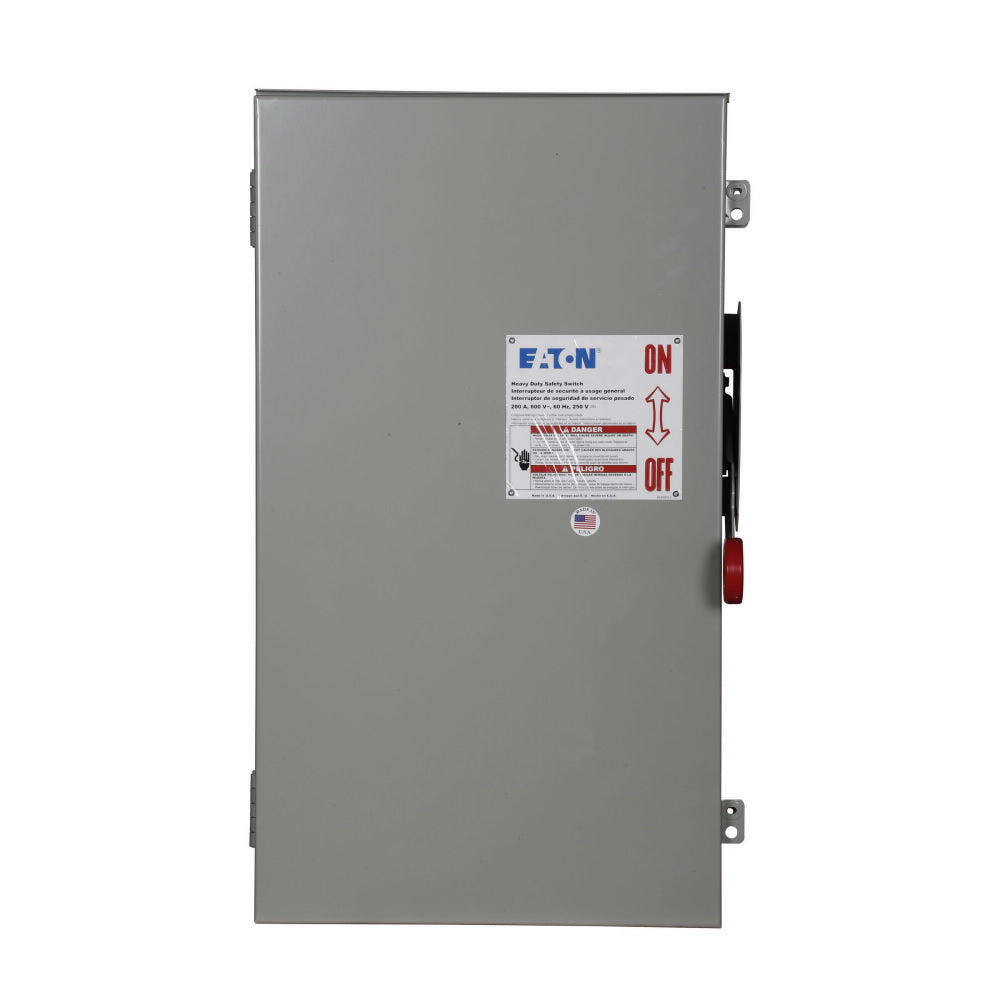

Cutler Hammer DH364NRK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH364NRK Disconnect Switch (Fusible) - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cutler Hammer DH364NRK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH364NRK Disconnect Switch (Fusible) - Essential Electric Supply

Description

DH364NRK


DH364NRK is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding industrial and commercial applications. This Eaton Cutler Hammer DH Series switch features a visible blade, single-throw design, and is rated for 200 amps and 600 volts AC. The unit is constructed with a painted galvanized steel enclosure and is NEMA 3R rated for outdoor and indoor use. It is fusible with neutral and supports Class H fuses, making it suitable for a wide range of electrical systems. The DH364NRK is a three-pole, four-wire switch, ideal for three-phase power distribution. It is horsepower rated for motors up to 150 hp at 480-600V and supports copper and aluminum conductors from #6 to 250 kcmil. The switch is UL Listed and provides a robust solution for service entrance and branch circuit disconnect applications.
  • Part Number: DH364NRK
  • Manufacturer: Cutler Hammer (Eaton)
  • Amperage Rating: 200A
  • Voltage Rating: 600V AC
  • Number of Poles: 3
  • Number of Wires: 4
  • Fuse Class: Class H
  • Fuse Configuration: Fusible with neutral
  • Enclosure Rating: NEMA 3R
  • Enclosure Material: Painted galvanized steel
  • Interrupt Rating: 200kA @ 600V
  • HP Rating: 150 hp (1/3PH @ 480, 600V)
  • Conductor Range: #6-250 kcmil Cu/Al
  • Series/Frame: DH Series
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: DH364NRK
  • Manufacturer : Cutler Hammer
  • Brand : Cutler Hammer
  • Category : Switch
  • Item Subcategory : Disconnect
  • Family : DH Series
  • Type : DH
  • Voltage : 600
  • Amperage : 200
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : NEMA 4X
  • Compatible Frames : THJK

Product Data

  • UPC : 782113206837
  • GTIN : 00782274052403
  • Country of Origin : United States
  • Dimensions : 30 in x 9.5 in x 18 in (Length/Depth x Height x Width)
  • Weight : 52
  • Certification : UL Listed
