DH323NGK - Cutler Hammer 100A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 1 Surface Mount

DH323NGK

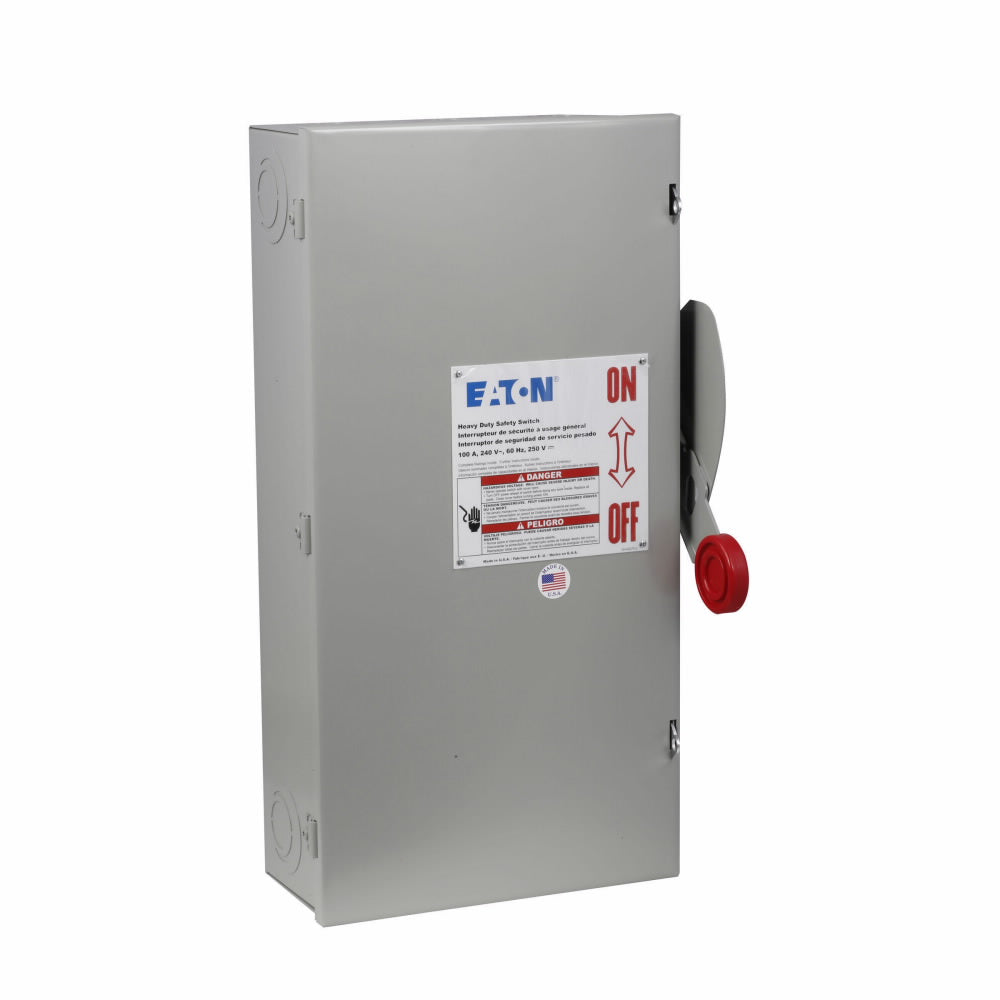

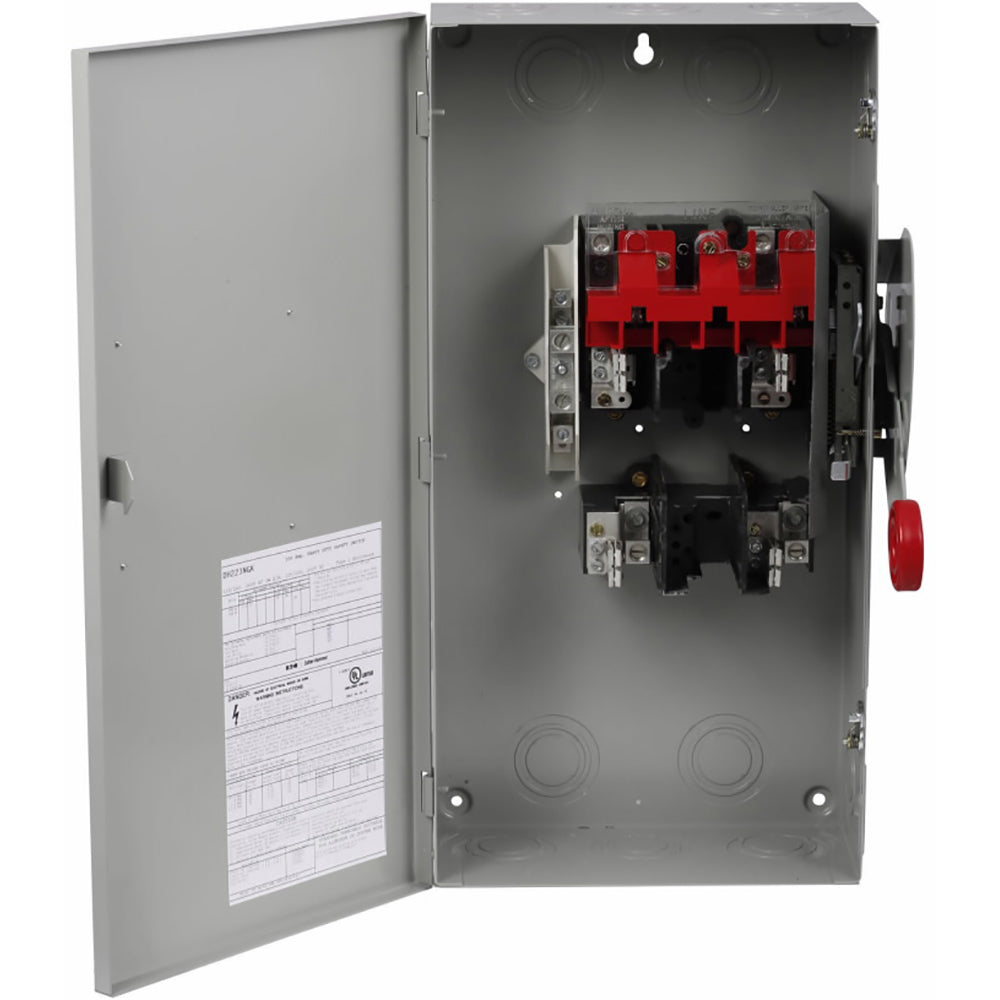

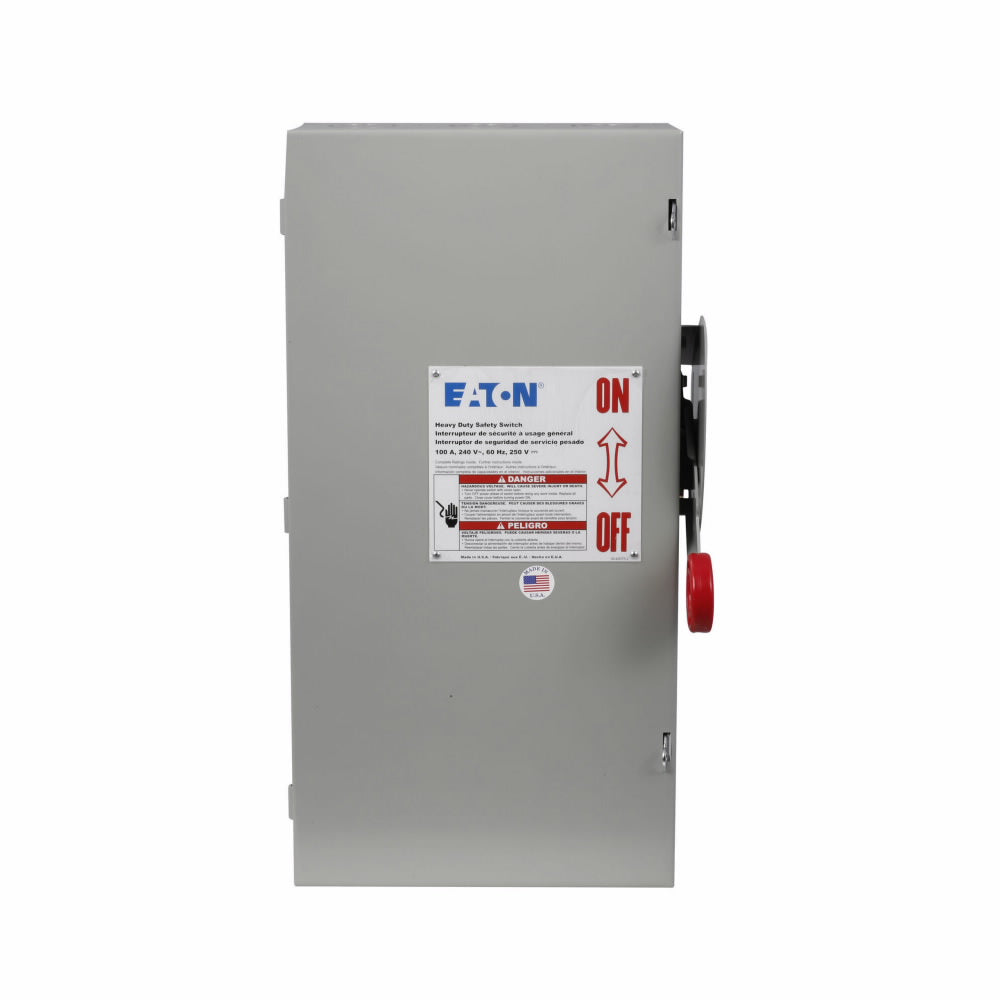

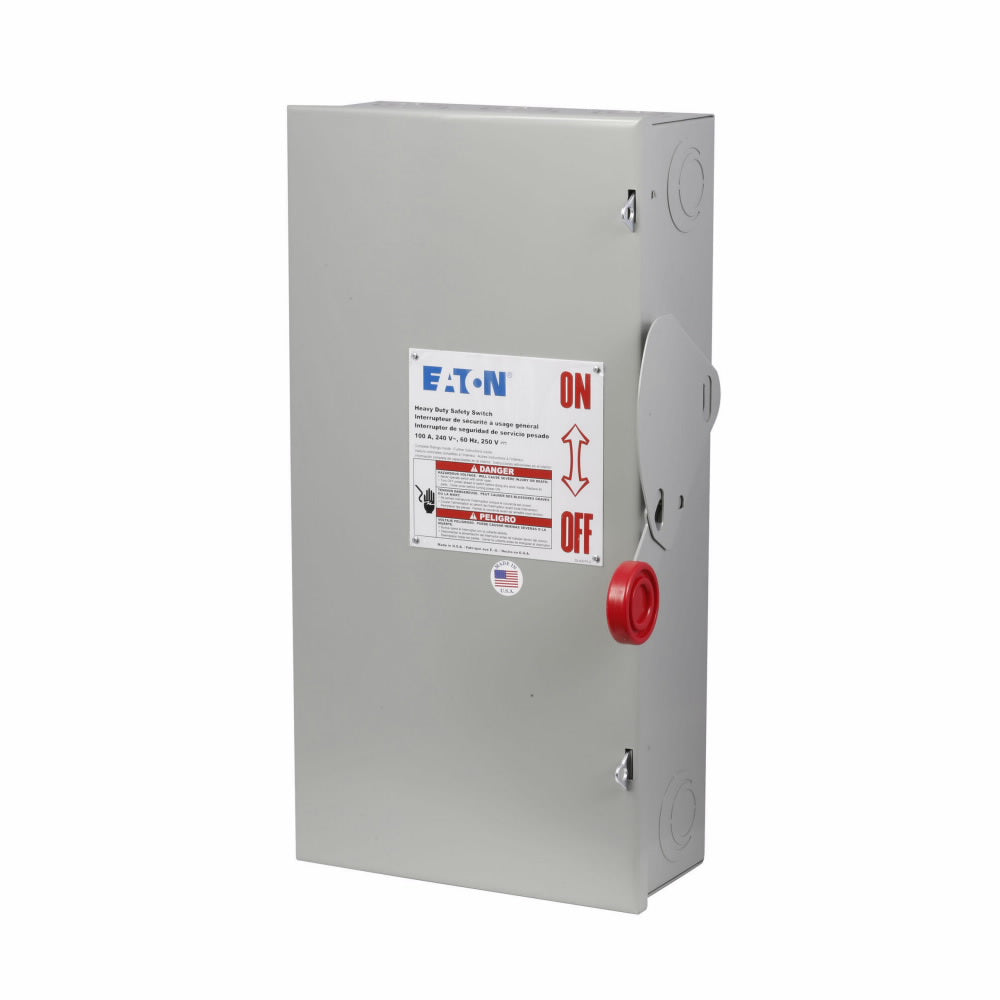

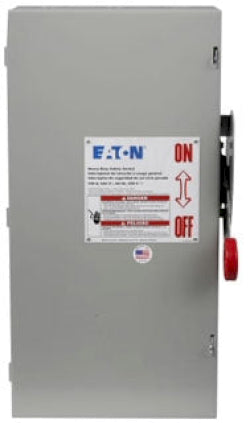

DH323NGK is a Cutler Hammer heavy duty fusible safety switch rated for 100 Amps and 240 Volts AC with 3 poles and 4 wires. DH323NGK features a NEMA 1 painted steel enclosure designed for surface mounting, providing reliable protection for commercial and industrial electrical installations. This single-throw switch includes a solid neutral and uses Class H cartridge fuses for short-circuit and overload protection. It has a mechanically interlocked cover to prevent access during the On position and comes with a palm-fitting red handle and trilingual nameplates. UL listed for safety and performance.

Key Specifications
• Amperage: 100A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Wires: 4 (including neutral)
• Mounting Type: Surface mount
• Interrupting Rating: 100kA
• Enclosure Rating: NEMA 1 painted steel
• Fuse Type: Class H cartridge fuses
• Series/Frame: DH K Series
• Trip Unit: Fusible (single throw)
• Certifications: UL Listed
• Handle: Palm-fitting red handle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH323NGK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SGPA

Product Data

• UPC : 782113206264
• GTIN : 00783164087147
• Country of Origin : United States
• Dimensions : 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
