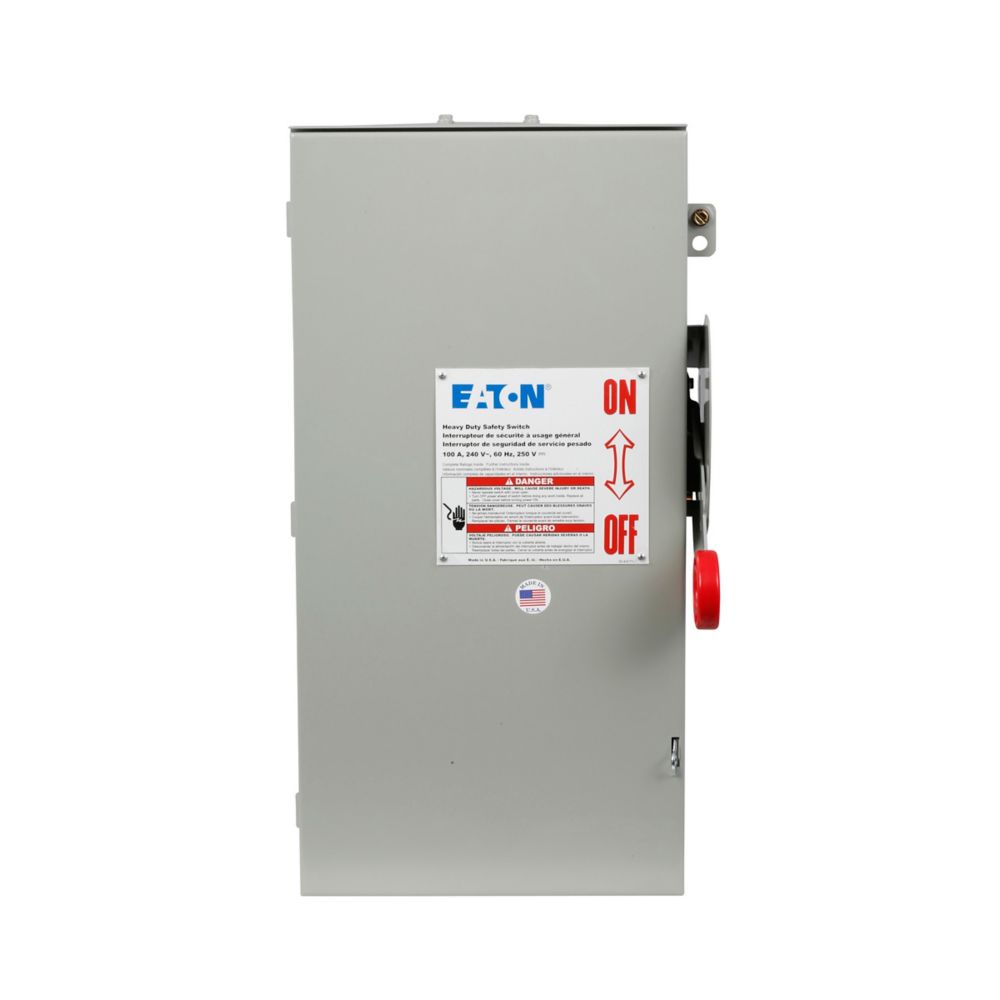

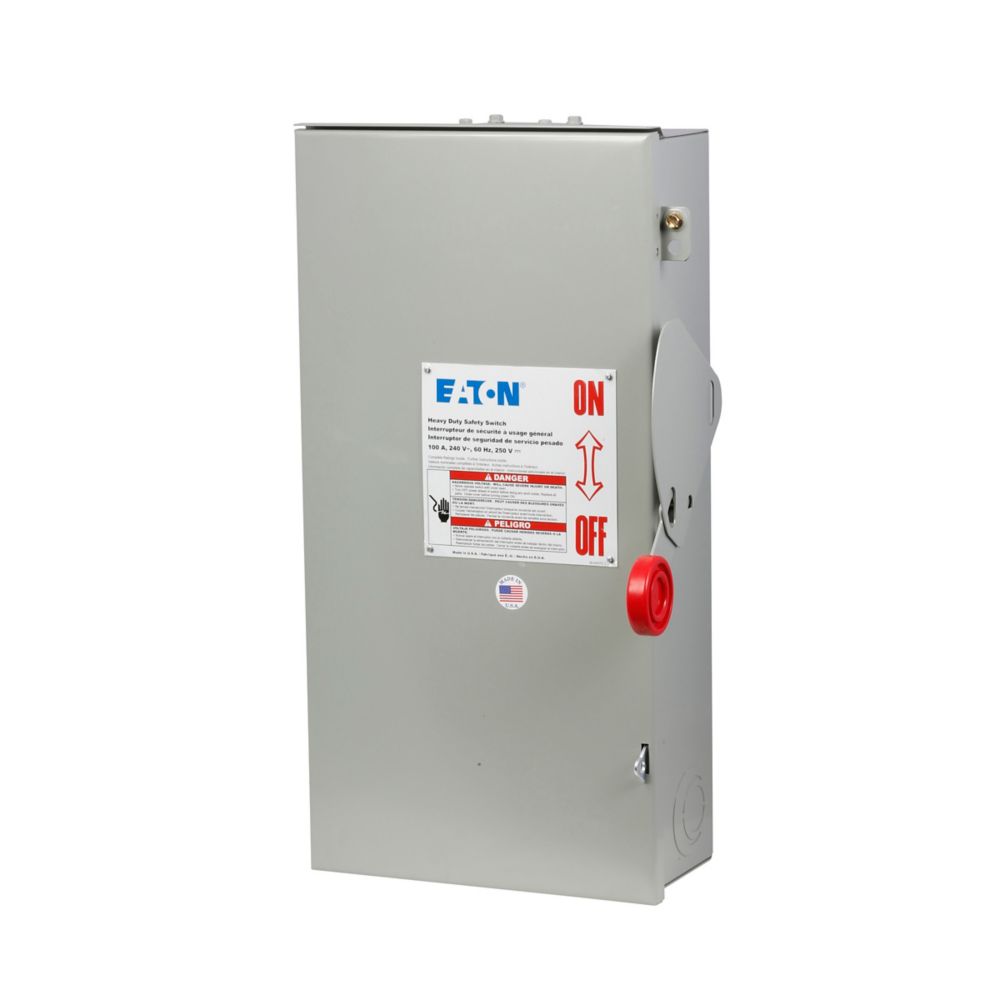

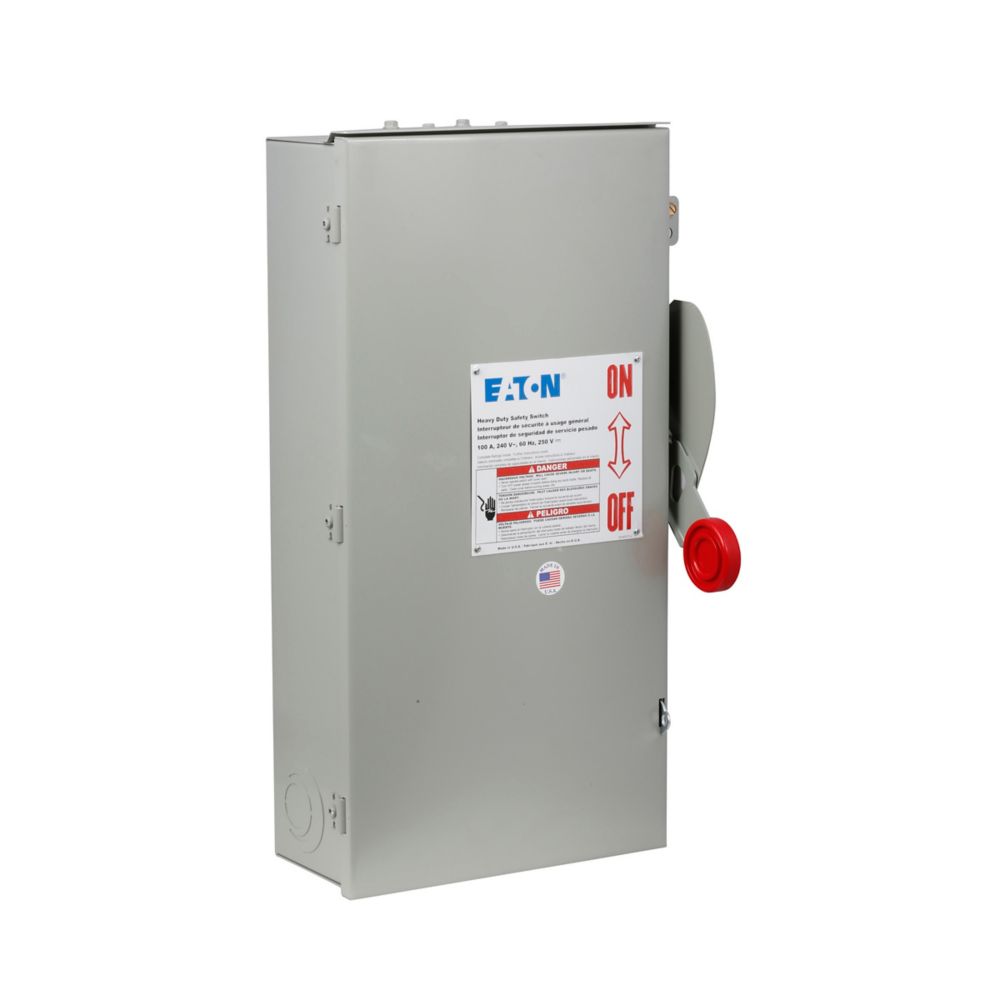

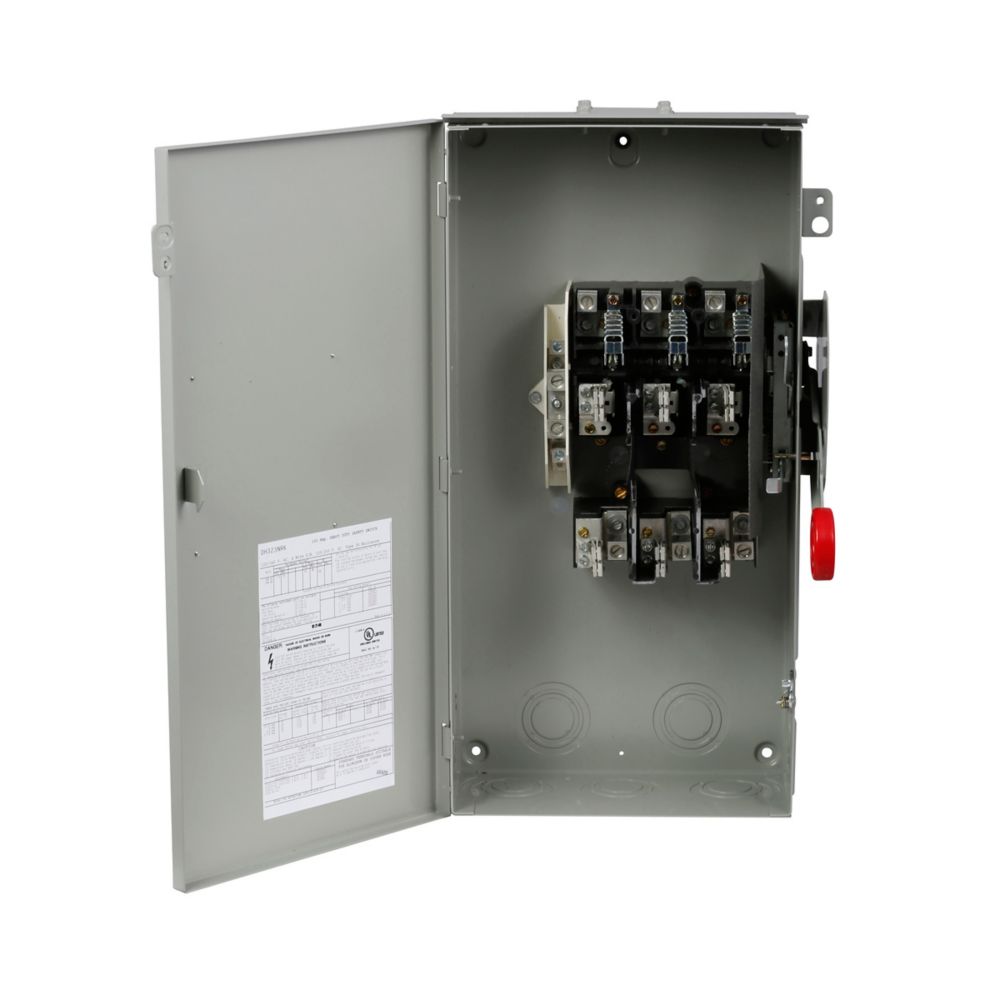

DH323FRK - Eaton 100A 3P Fusible Safety Switch 240VAC 250VDC NEMA 3R

DH323FRK

DH323FRK is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding environments. This Eaton switch features a visible blade, single-throw design, and is rated for 100 amps, 3 poles, and 240VAC/250VDC. Constructed with painted galvanized steel, it offers durability and weather resistance for both indoor and outdoor use. The switch is fusible without neutral and is suitable for a wide range of industrial and commercial applications. Engineered for safety and performance, the DH323FRK provides a clear visual indication of the switch position and is built to withstand harsh conditions. Its robust construction and high interrupting rating make it ideal for critical power distribution needs.

• Part Number: DH323FRK
• Manufacturer: Eaton
• Amperage: 100A
• Voltage: 240VAC, 250VDC
• Poles: 3P
• Mounting Type: NEMA 3R (Rainproof)
• Interrupt Rating: 100kAIC
• Series/Frame: K Series
• Fusible Type: Class H, Without Neutral
• Wire Configuration: 3-Wire
• Construction: Painted Galvanized Steel
• Application: Industrial, Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH323FRK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 1kA@24V
• Configuration : Single
• Nema Rating : NEMA 4X
• Compatible Frames : SGLA

Product Data

• UPC : 078211320625
• GTIN : 00782113206257
• Country of Origin : United States
• Dimensions : 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
• Weight : 25
• Certification : UL Listed
