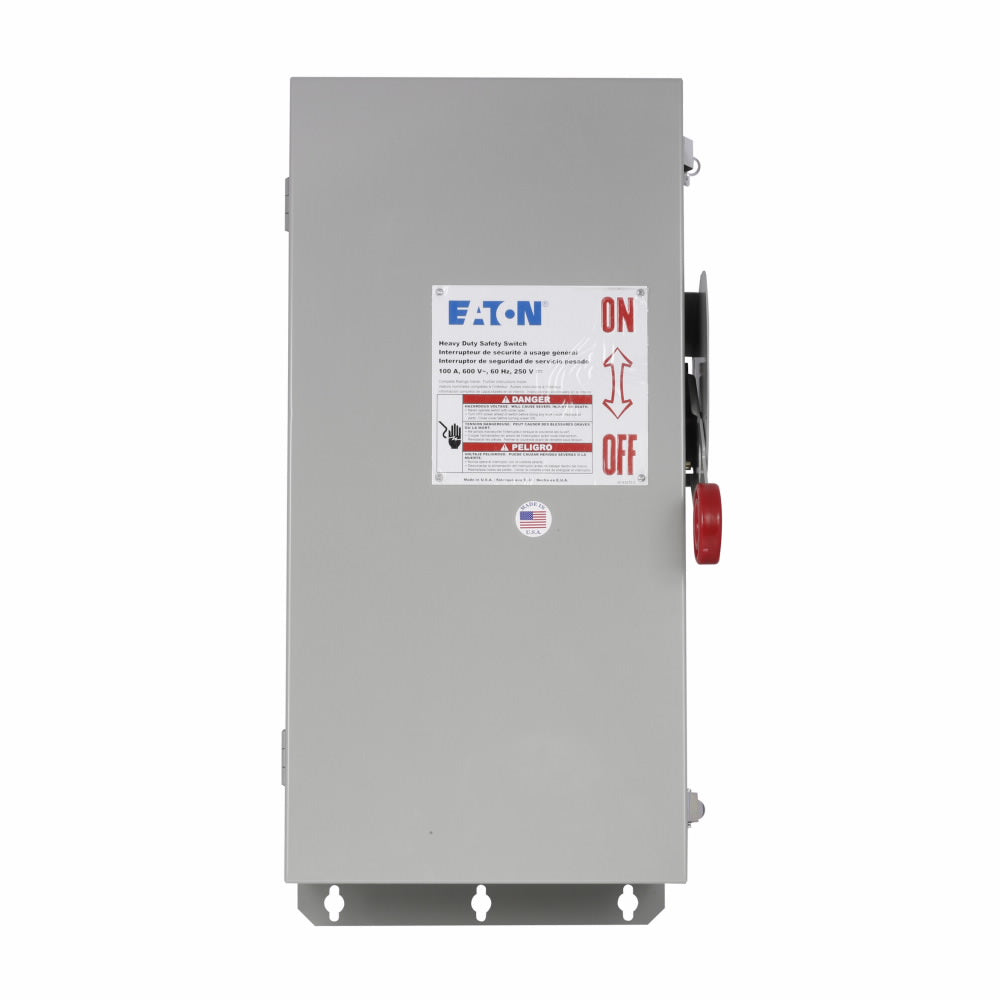

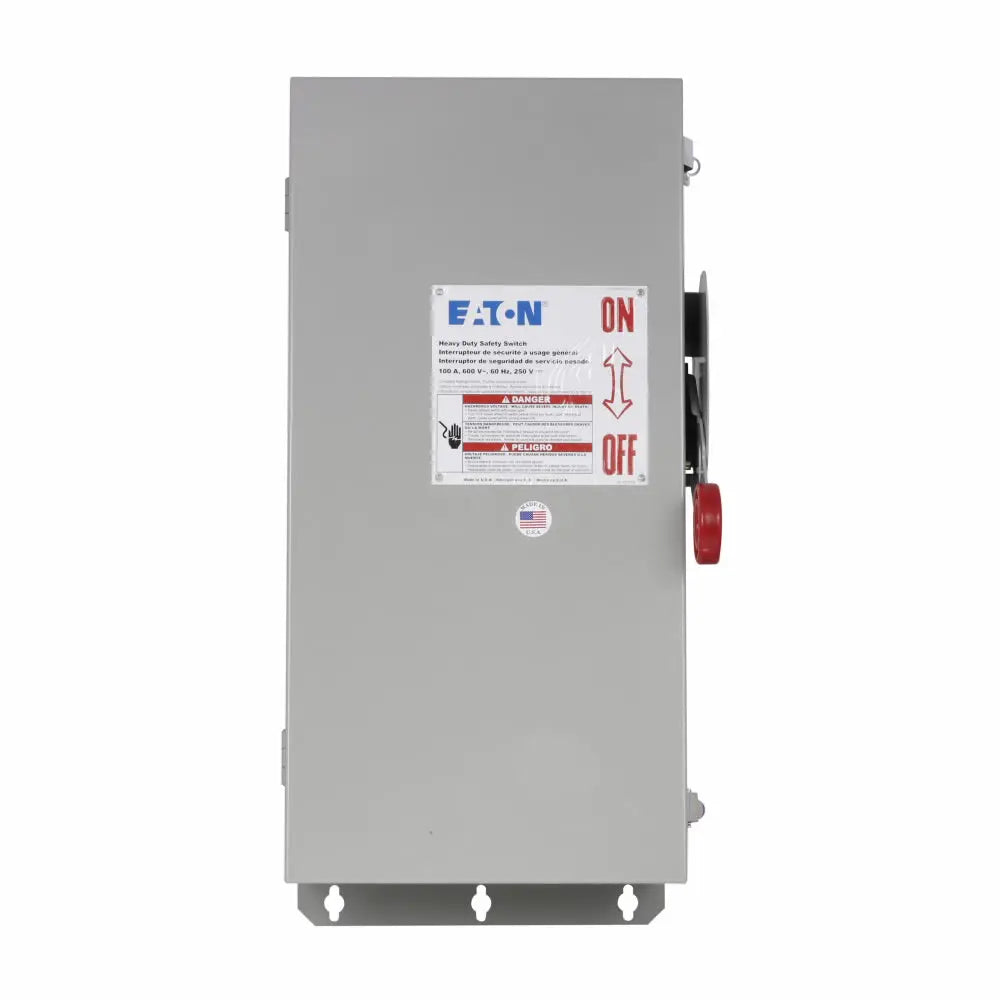

DH323FDK - Eaton Heavy Duty Fusible Safety Switch 100A 240V 3-Pole NEMA 12/3R Painted Galvanized Steel

DH323FDK

DH323FDK is a heavy duty fusible safety switch by Eaton rated at 100 amps, 240 volts, and 3 poles with a NEMA 12/3R enclosure.DH323FDK features a painted galvanized steel enclosure, Class H fuse provision, and supports three-wire connections. It is suitable for service entrance use with optional neutral or ground lug kits and can be field modified for NEMA 3R rainproof requirements. The switch supports maximum horsepower ratings of 7.5, 15/15, and 30/20 hp (1 and 3 phase at standard/TD/250 Vdc). UL listed for safety and reliability.

Key Specifications
• Amperage: 100 A
• Voltage: 240 V
• Poles: 3
• Enclosure Type: NEMA 12/3R
• Enclosure Material: Painted galvanized steel
• Fuse Class: Class H
• Fuse Configuration: Fusible without neutral
• Number of Wires: 3
• Max Horsepower: 7.5, 15/15, 30/20 hp
• Wire Size: #14-1/0 AWG Cu/Al
• Certifications: UL Listed
• Mounting: Surface mount
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DH323FDK
• Manufacturer : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Nema Rating : NEMA 12
• Compatible Frames : SGHA



Product Data

• UPC : 782113206318
• GTIN : 00782113000000
• Country of Origin : United States
• Dimensions : 25.5 in x 9 in x 13.25 in (Length/Depth x Height x Width)
• Weight : 29
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
