Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH321FWK

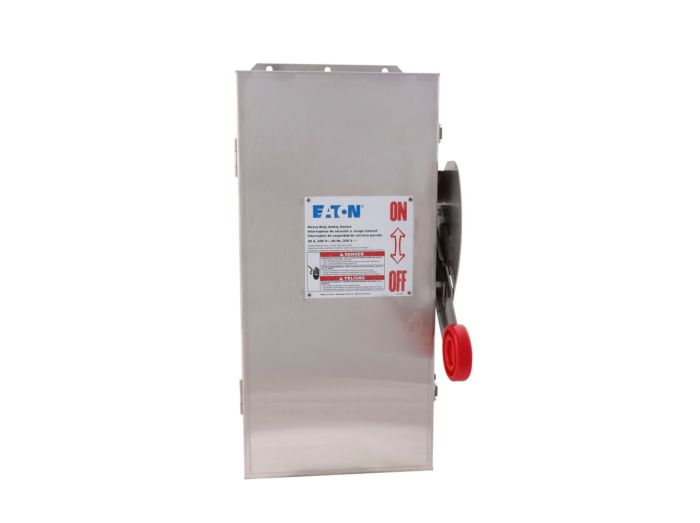

DH321FWK is a Cutler Hammer heavy duty fusible safety switch rated for 30 amps, 3 poles, and 240 volts AC with a NEMA 4X stainless steel enclosure.
This switch features a single-throw design with enhanced visible blade for reliable circuit protection and easy disconnect. It uses Class H fuse clips and is fusible without neutral. The enclosure is 304 stainless steel, suitable for harsh environments, and rated NEMA 4X for corrosion and water resistance. It supports three wires and is designed for heavy-duty industrial applications with a maximum horsepower rating of 7.5 HP at 240V. The switch is suitable for service entrance use with optional neutral or ground lug kits and complies with Eaton's quality standards.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 VAC / 250 VDC
- Number of Poles: 3
- Number of Wires: 3
- Mounting Type: Surface Mount (NEMA 4X Enclosure)
- Interrupt Rating: Class H Fuse Clips
- Enclosure Material: 304 Stainless Steel
- Fuse Configuration: Fusible Without Neutral
- Maximum Horsepower: 7.5 HP at 240V
- Series/Frame: Heavy Duty
- Trip Unit: Single Throw Visible Blade
- Certifications: NEMA 4X Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DH321FWK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Fuse Class : R
- Wire : 3
- Configuration : Single
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 480
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Protection : Solid State
- Compatible Frames : SKLA
Product Data
- UPC : 78211320542
- GTIN : 00782113000000
- Country of Origin : United States
- Dimensions : 20 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
- Weight : 20
