DH265FGK - Eaton 400A 600V 2-Pole Heavy Duty Fusible Safety Switch NEMA 1

DH265FGK

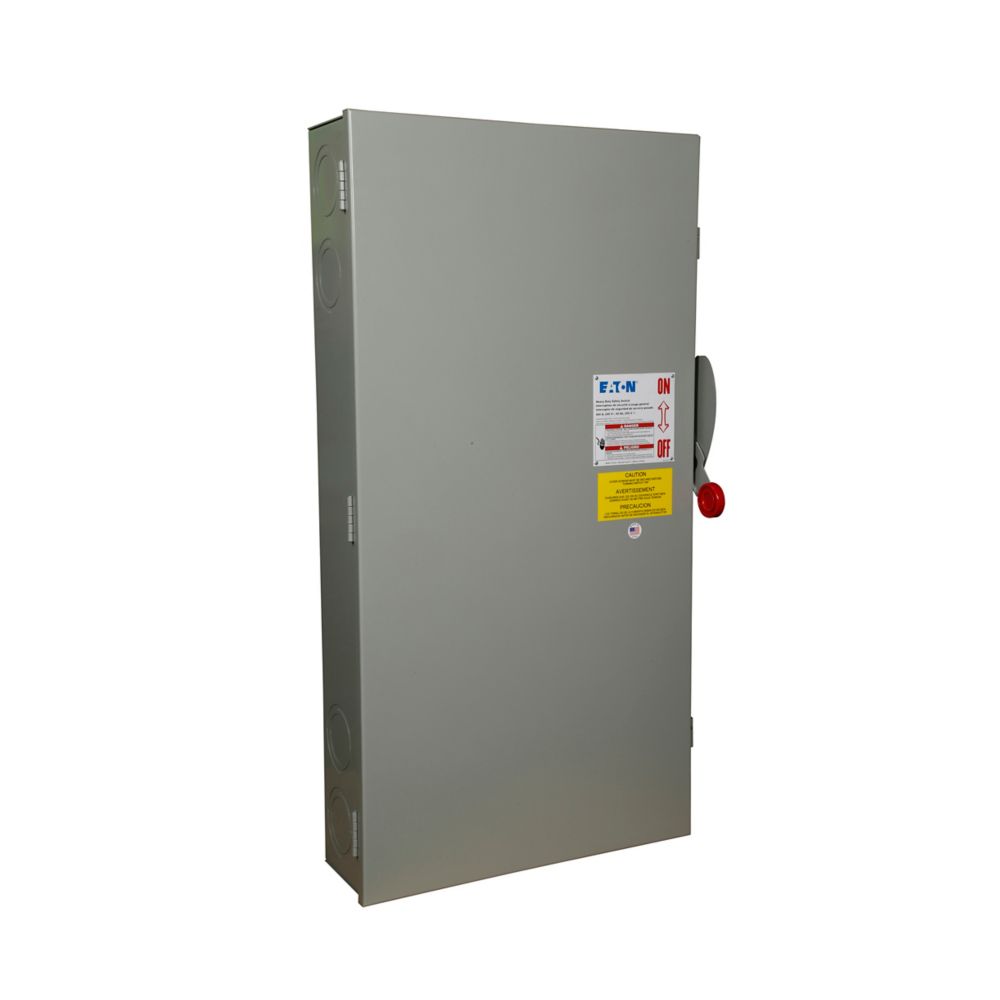

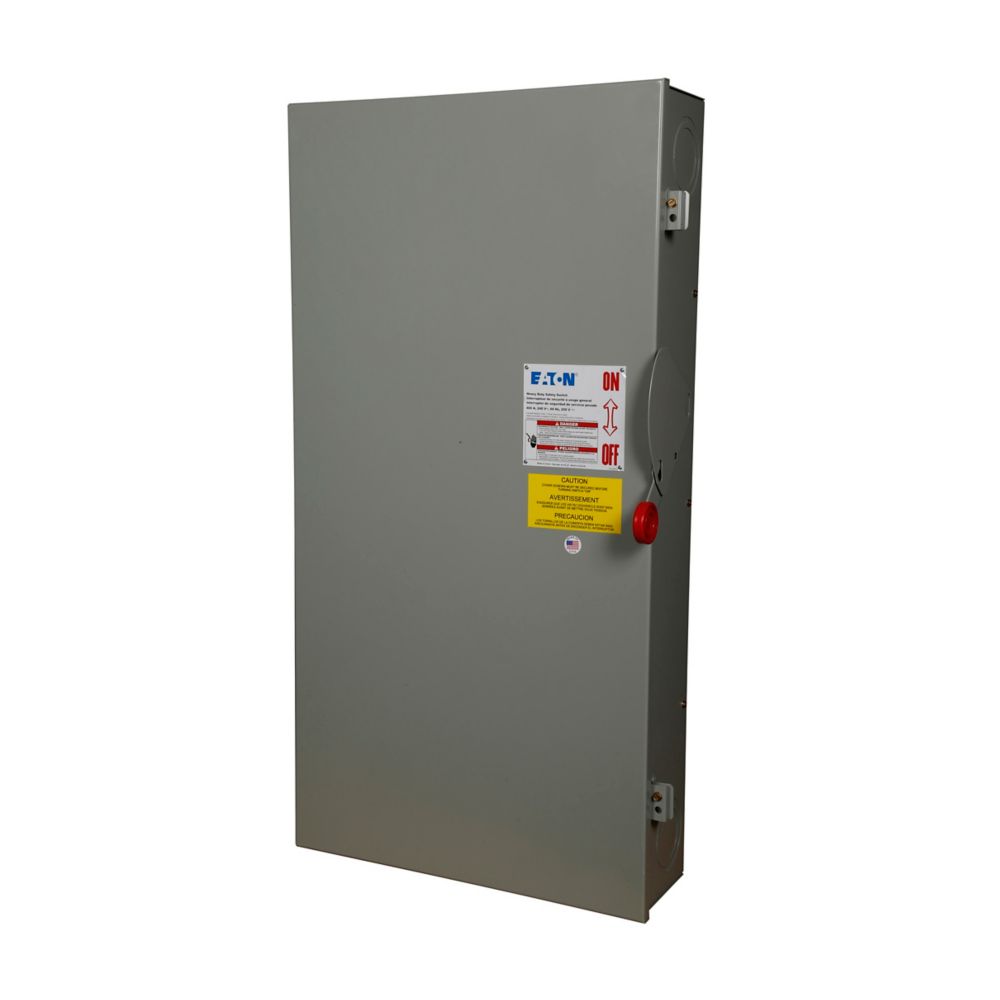

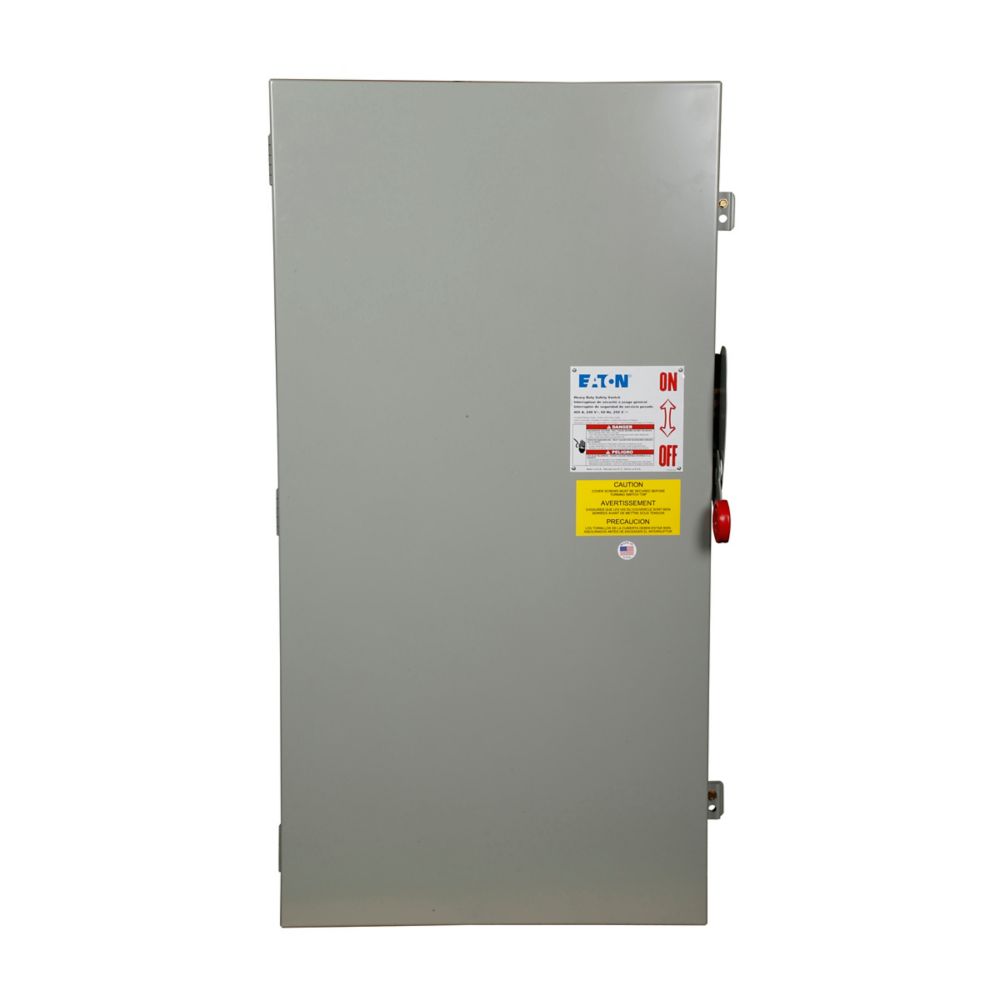

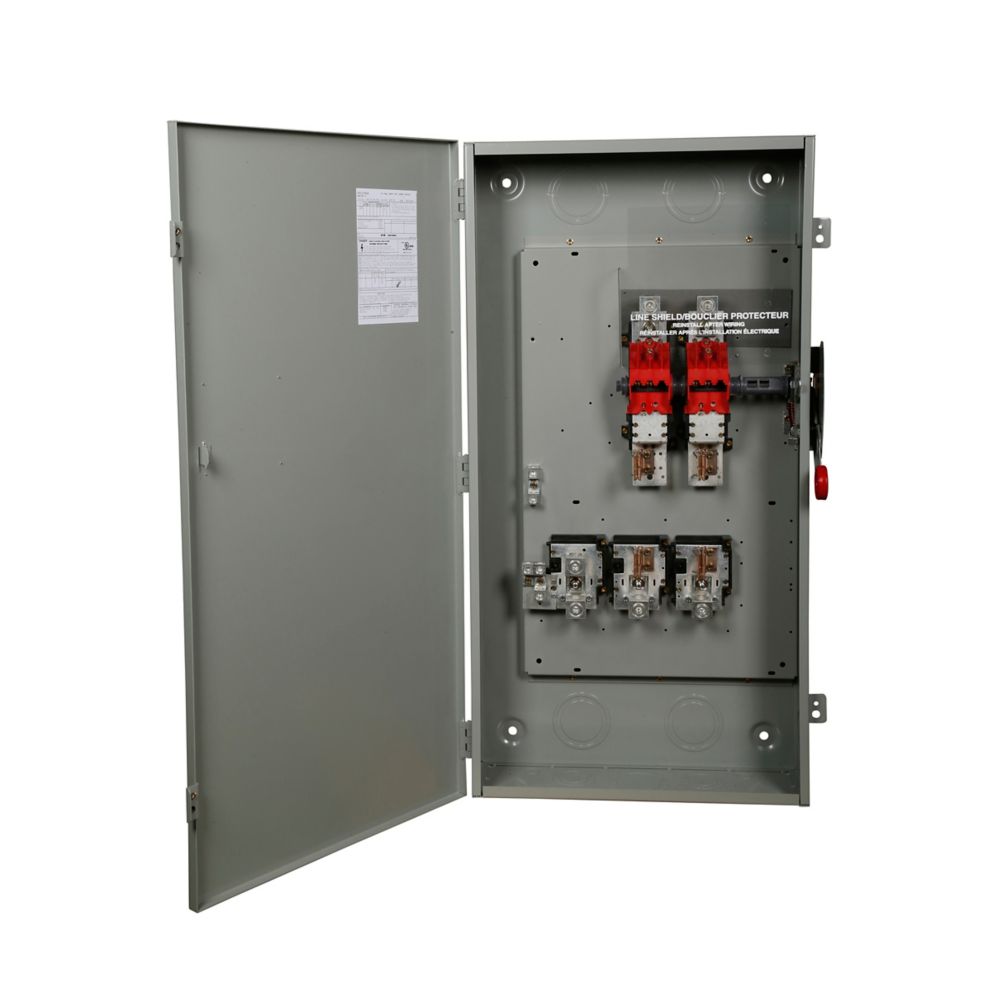

DH265FGK is a heavy duty fusible safety switch by Eaton designed for reliable power distribution and protection.This Eaton DH265FGK safety switch features a 400 ampere rating, 600 volt capacity, and two poles with fusible protection. It is a single throw switch with a NEMA 1 painted steel enclosure, suitable for industrial and commercial applications. The switch supports up to 50 horsepower at 250 VDC and uses Class H fuses for enhanced insulation and safety. It does not include a neutral and is designed for two-wire circuits.

Key Specifications
• Amperage: 400 A
• Voltage: 600 V
• Poles: 2
• Mounting Type: Surface Mount (NEMA 1 enclosure)
• Interrupt Rating: Fusible with Class H fuses
• Series/Frame: Heavy Duty
• Trip Unit: Fusible
• Enclosure Material: Painted Steel
• Maximum Horsepower: 50 HP at 250 VDC
• Number of Wires: 2 (No Neutral)
• Switch Type: Single Throw
• Certifications: Meets Eaton heavy duty safety switch standards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DH265FGK
• Manufacturer : Eaton
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 1
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 100kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Fuse Class : R
• Wire : 4
• Configuration : Single
• Coil Voltage Maximum : 12
• Coil Voltage Minimum : 12
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Protection : Solid State
• Compatible Frames : TB



Product Data

• UPC : 782113207186
• GTIN : 00782113207186
• Country of Origin : United States
• Dimensions : 45.5 in x 10.25 in x 24.38 in (Length/Depth x Height x Width)
• Weight : 110
