Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH263UGK

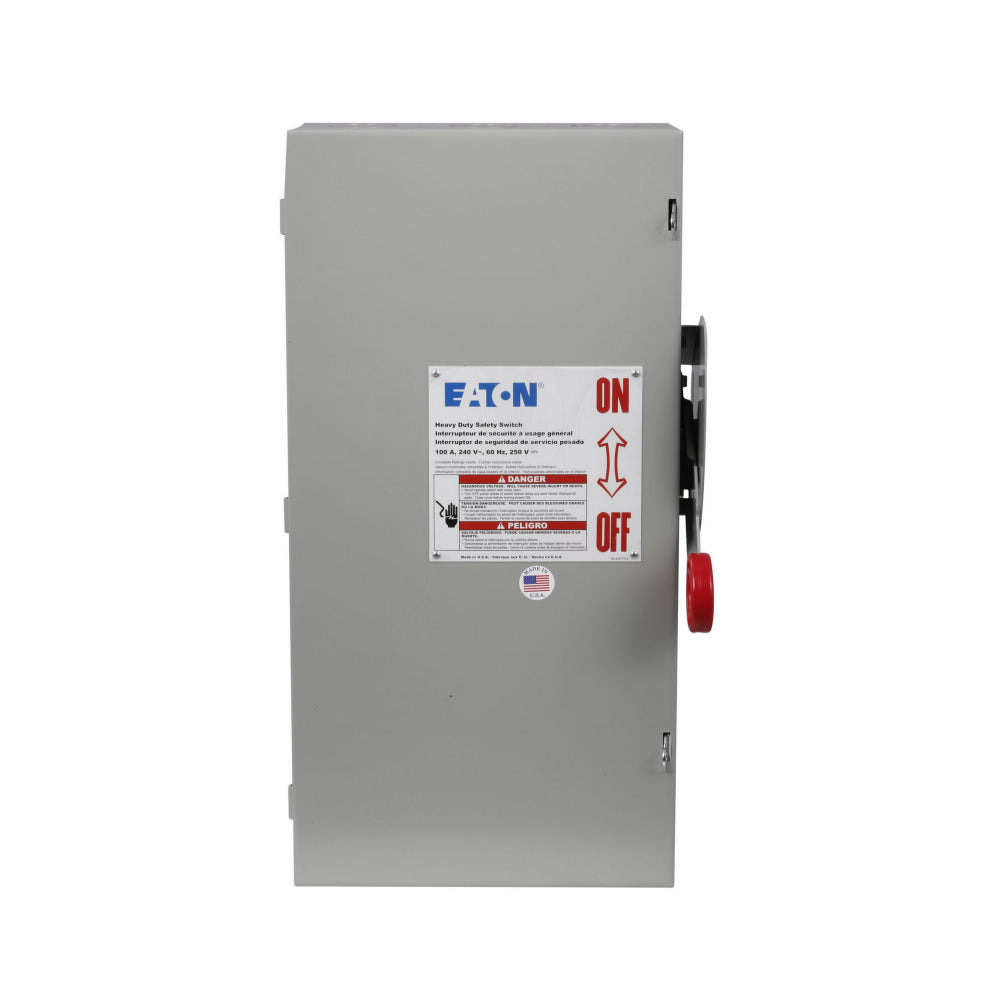

DH263UGK is a Cutler Hammer heavy duty non-fusible safety switch rated for 100 amps and 600 volts with 2 poles and a NEMA 1 enclosure.
This Eaton DH263UGK switch features a single-throw design, painted steel NEMA 1 enclosure, and is suitable for heavy duty applications requiring a 100 amp, 2-pole disconnect. It is non-fusible and supports 600 VAC operation with an interrupt rating of 100kA at 600V. The switch is designed for two-wire connections and provides reliable manual disconnect functionality for industrial and commercial power distribution systems.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 VAC
- Poles: 2
- Mounting Type: Surface Mount
- Interrupt Rating: 100kA at 600V
- Series/Frame: DH Type
- Trip Unit: Non-Fusible
- Enclosure: NEMA 1 Painted Steel
- Number of Wires: 2
- Duty: Heavy Duty
- Certifications: Eaton Selling Policy Warranty
- Part Number: DH263UGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 100
- Poles : 2
- AIC rating : 100kA@600V
- Configuration : Single
- Nema Rating : NEMA 1
- Compatible Frames : TB
- UPC : 782113206394
- GTIN : 00782113206394
- Country of Origin : United States
- Dimensions : 10 in x 21.69 in x 11.13 in (Length/Depth x Height x Width)
- Weight : 22
- Certification : UL Listed
