Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH225NGK

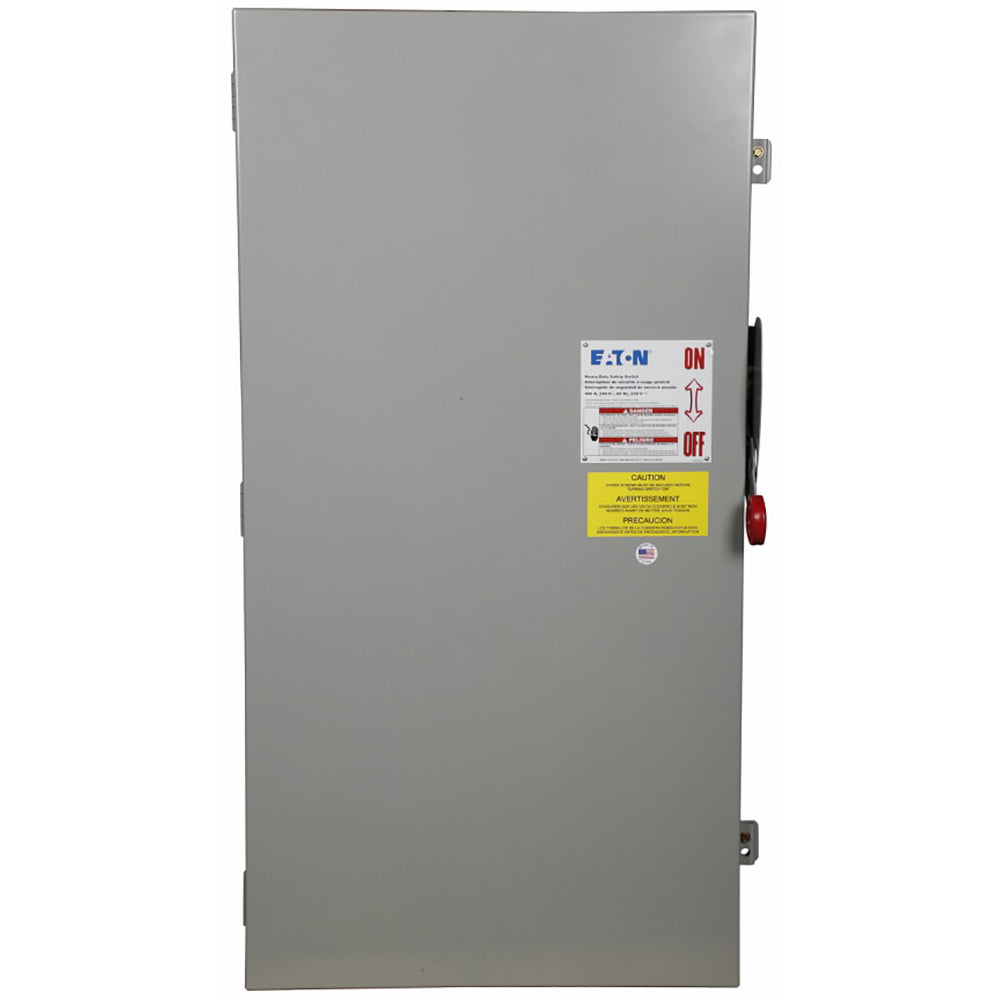

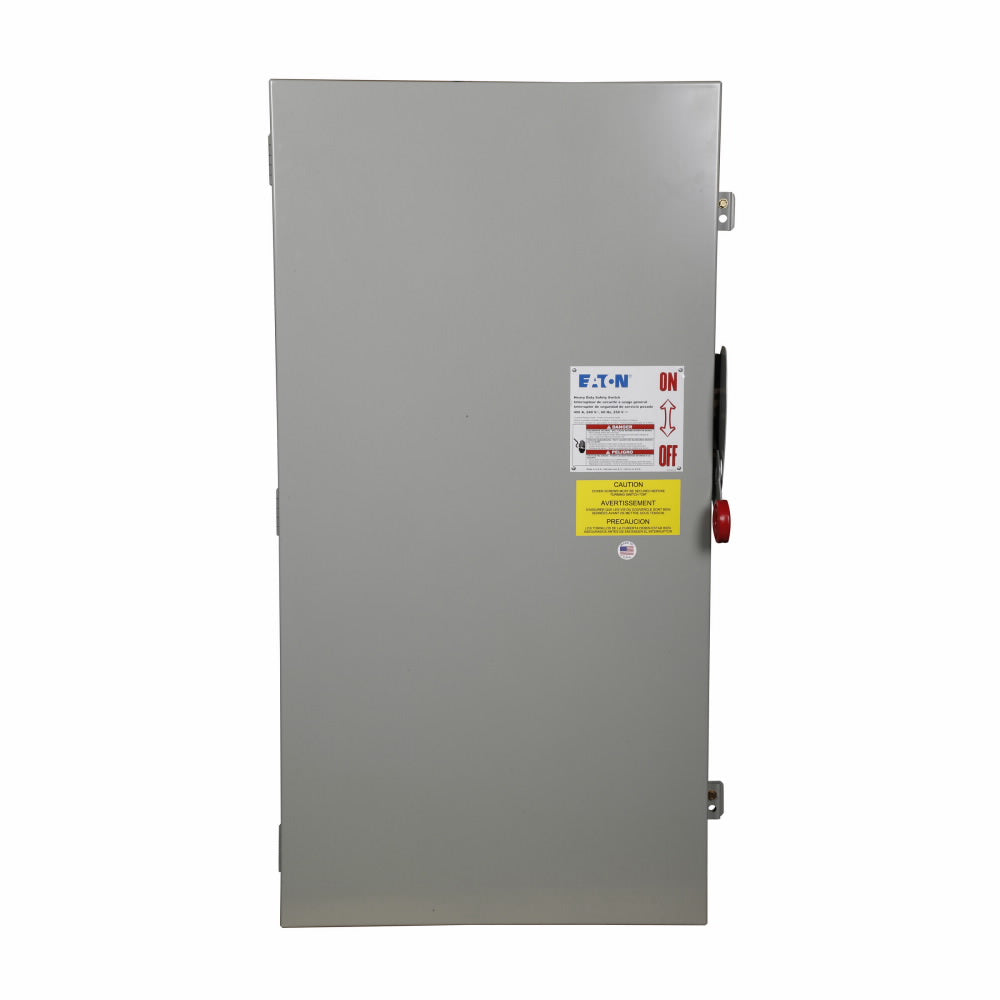

DH225NGK is a Cutler Hammer heavy duty fusible safety switch with neutral, rated for 400 amps and 240 volts, designed for reliable electrical disconnect applications.DH225NGK features a two-pole, single-throw design with enhanced visible blade for safety and ease of operation. It supports Class H fuses, has a NEMA 1 enclosure, and is suitable for 50 to 125 HP motor loads. The switch is constructed for durability and includes a three-wire configuration for neutral connection.
- Amperage: 400 A
- Voltage: 240 VAC
- Poles: 2
- Mounting Type: Surface mount (NEMA 1 enclosure)
- Interrupt Rating: 100 kA at 240 V
- Fuse Class Provision: Class H
- Series/Frame: DH Type
- Trip Unit: Fusible
- Neutral: Included (three-wire)
- Max Horsepower: 50 HP (single phase), 125 HP (three phase)
- Enclosure: Painted steel
- Enhanced visible blade for safety
Specifications
- Part Number: DH225NGK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 240
- Amperage : 400
- Phase : 1
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Nema Rating : NEMA 1
- Compatible Frames : SGPA
Product Data
- UPC : 782113207025
- GTIN : 00782113207025
- Country of Origin : United States
- Dimensions : 7.27 in x 44.74 in x 23.08 in (Length/Depth x Height x Width)
- Weight : 120
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
