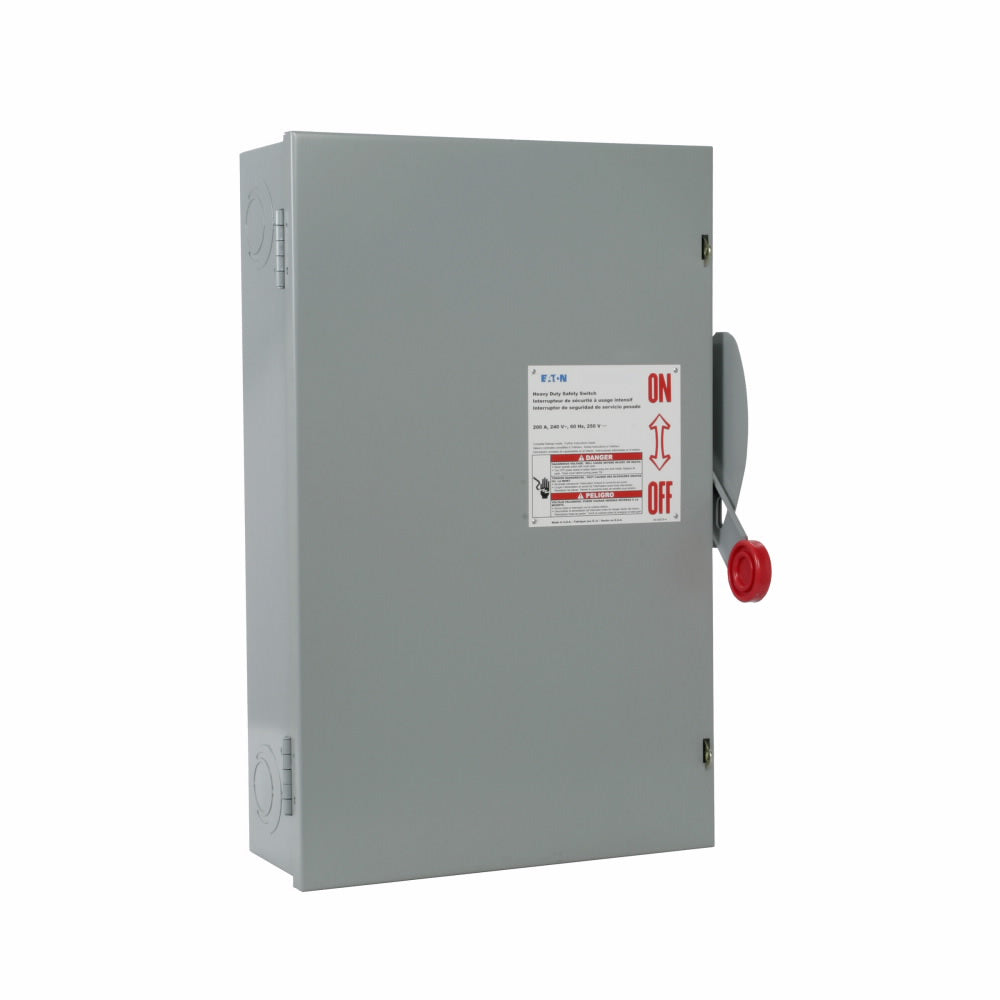

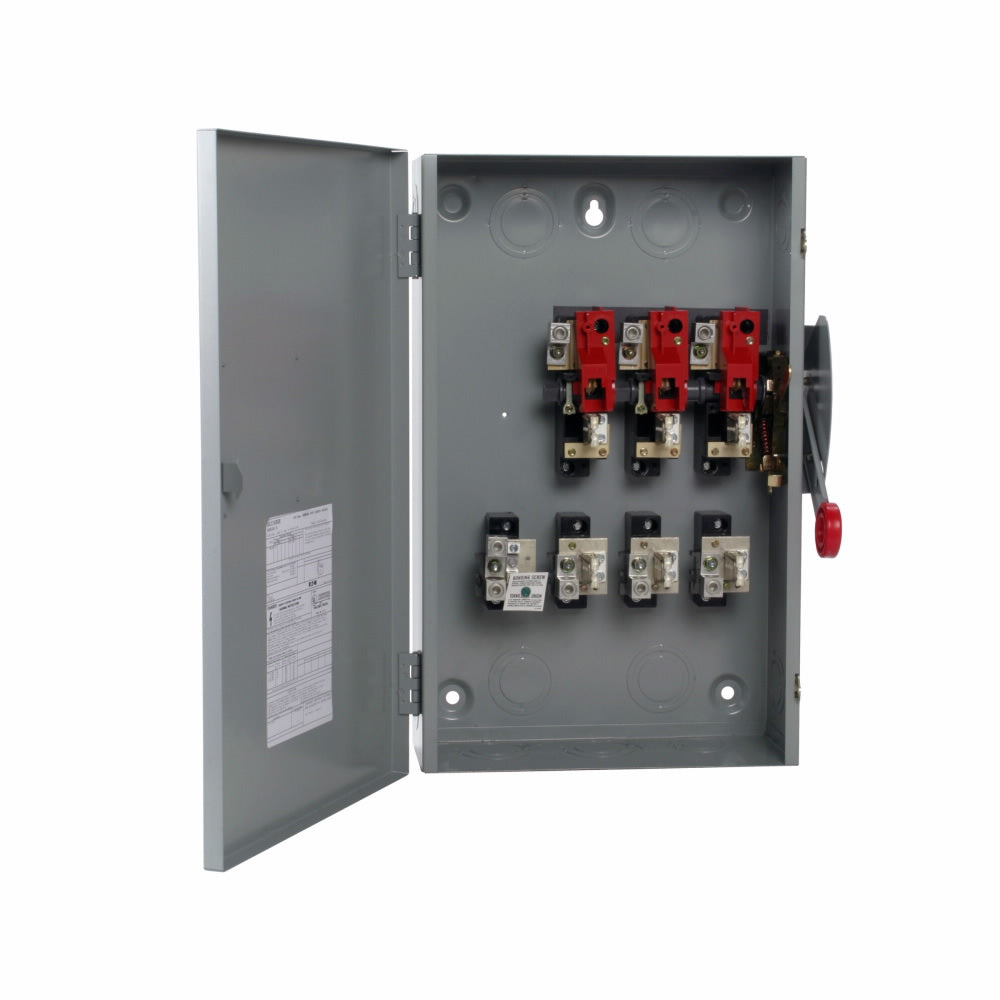

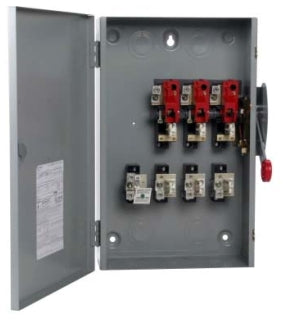

DG324NGK - Cutler Hammer 200 Amp 240 Volt 3-Pole Fusible General Duty Safety Switch NEMA 1

DG324NGK

DG324NGK is a Cutler Hammer 200 Amp, 240 Volt, 3-pole fusible general duty safety switch with a NEMA 1 painted steel enclosure.This switch features a four-wire configuration with Class H cartridge fuses and is fusible with neutral. It has a 100kA interrupting rating at 240V, suitable for general duty applications. The switch includes a double-break mechanism for reliable operation and is UL listed.

• Amperage: 200 Amp
• Voltage: 240 Volt
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 100kA at 240V
• Series/Frame: DG Series
• Fuse Class: Class H
• Switch Style: Fusible with neutral
• Enclosure Rating: NEMA 1 Painted Steel
• Configuration: Four-wire
• Dimensions: Approx. 24.75" H x 16" W x 11.25" D
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DG324NGK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DG Series
• Type : DG
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : THKM

Product Data

• UPC : 782113213538
• GTIN : 00782113213538
• Country of Origin : United States
• Dimensions : 11.25 in x 24.75 in x 16 in (Length/Depth x Height x Width)
• Weight : 48
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
