Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DG321NGB

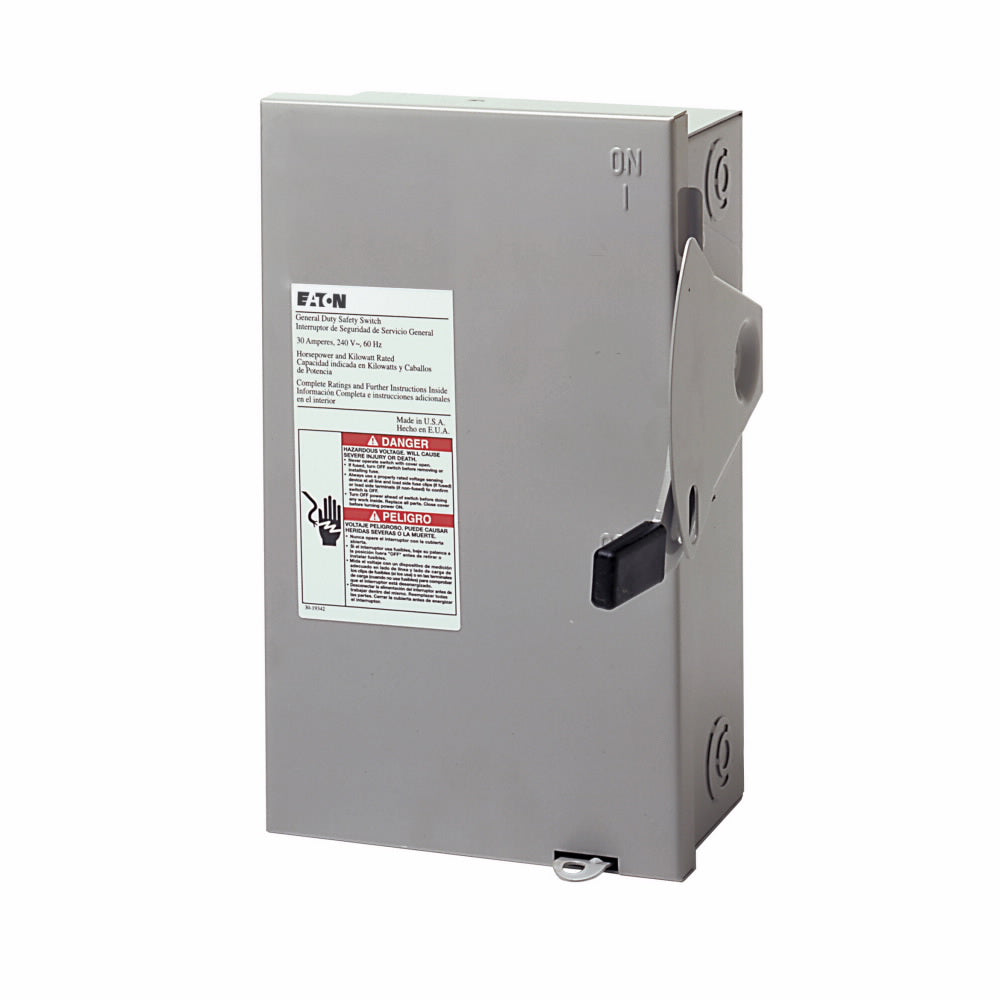

DG321NGB is a Cutler Hammer general duty fusible safety switch rated for 30 amps and 240 volts AC.
This 3-pole, 4-wire safety switch features a painted steel NEMA 1 enclosure and uses Class H cartridge fuses with neutral and ground lugs. It is UL listed and suitable for commercial, light duty motor circuits, residential, and service entrance applications. The switch supports 3 to 7.5 HP motor ratings at 240 VAC and complies with NEC 230.62(C) barrier requirements.
- Key Specifications
- Amperage: 30A
- Voltage: 240V AC
- Poles: 3
- Wires: 4
- Fuse Type: Class H cartridge fuses
- Enclosure: Painted steel, NEMA 1
- Interrupt Rating: 100 kA RMS
- Certifications: UL Listed, UL 98
- Mounting Type: Surface mount
- Trip Unit: Fusible with neutral
- Frame/Series: DG Model, General Duty
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DG321NGB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 782113120201
- GTIN : 00782114357378
- Country of Origin : United States
- Dimensions : 6.88 in x 10.69 in x 6.38 in (Length/Depth x Height x Width)
- Weight : 6
- Certification : NEMA KS-1, UL Listed, UL98
