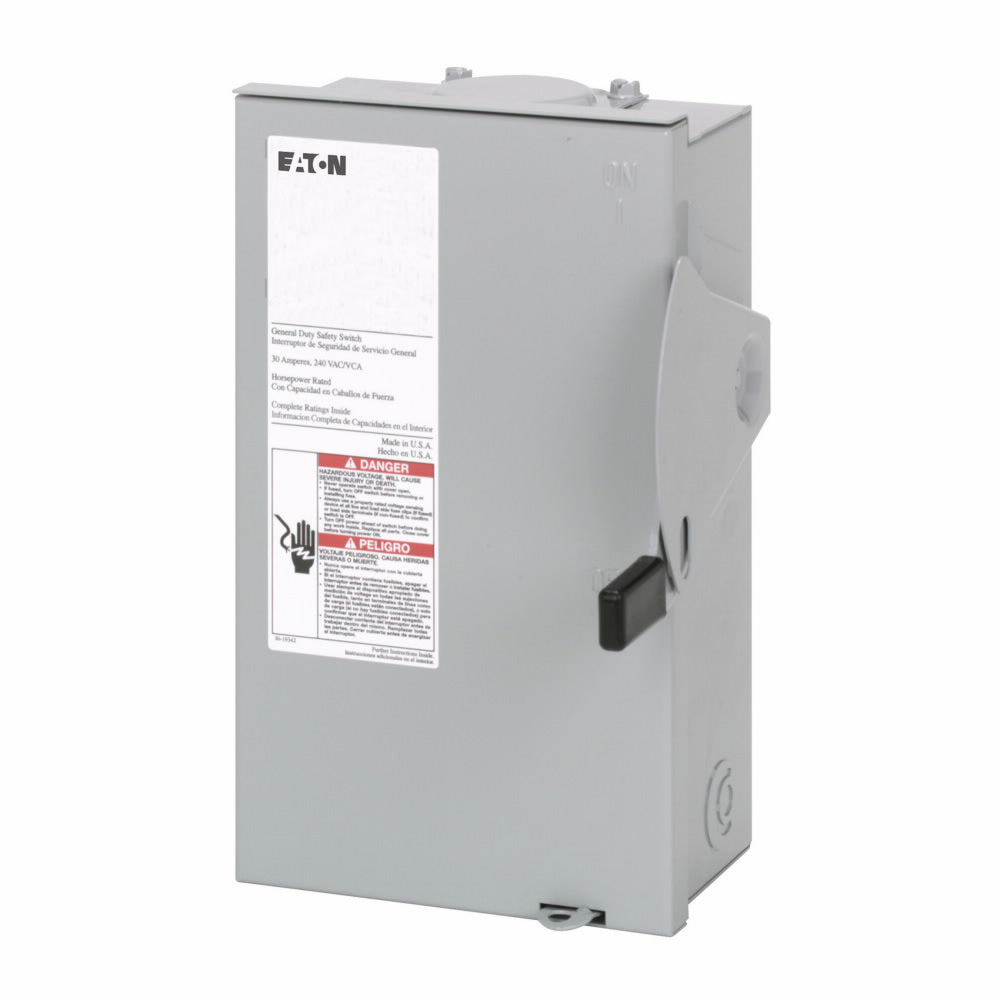

DG221NRB - Cutler Hammer 30A 240V 2-Pole Fusible General Duty Safety Switch NEMA 3R

DG221NRB

DG221NRB is a Cutler Hammer 30 Amp, 240 Volt, 2-Pole fusible general duty safety switch with NEMA 3R enclosure rating.This safety switch features a painted galvanized steel enclosure designed for commercial and residential applications. It is a cartridge fuse type with fusible neutral, supporting Class H fuses. The switch is rated for 30 Amps and 240 Volts AC, with two poles and three wires. It complies with UL 98 and NEC 230.62(C) standards and is UL listed. The NEMA 3R enclosure provides protection against rain and sleet, suitable for outdoor use.

Key Specifications
• Amperage Rating: 30A
• Voltage Rating: 240V AC
• Number of Poles: 2
• Number of Wires: 3
• Fuse Type: Cartridge, Fusible with Neutral
• Fuse Class: Class H
• Enclosure Type: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Certifications: UL Listed, UL 98
• Compliance: NEC 230.62(C) Barrier
• Application: General Duty, Commercial and Residential
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DG221NRB
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DG Series
• Type : DG
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : SKHA



Product Data

• UPC : 782113120317
• GTIN : 00782113120102
• Country of Origin : United States
• Dimensions : 6.88 in x 10.81 in x 6.38 in (Length/Depth x Height x Width)
• Weight : 6
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
