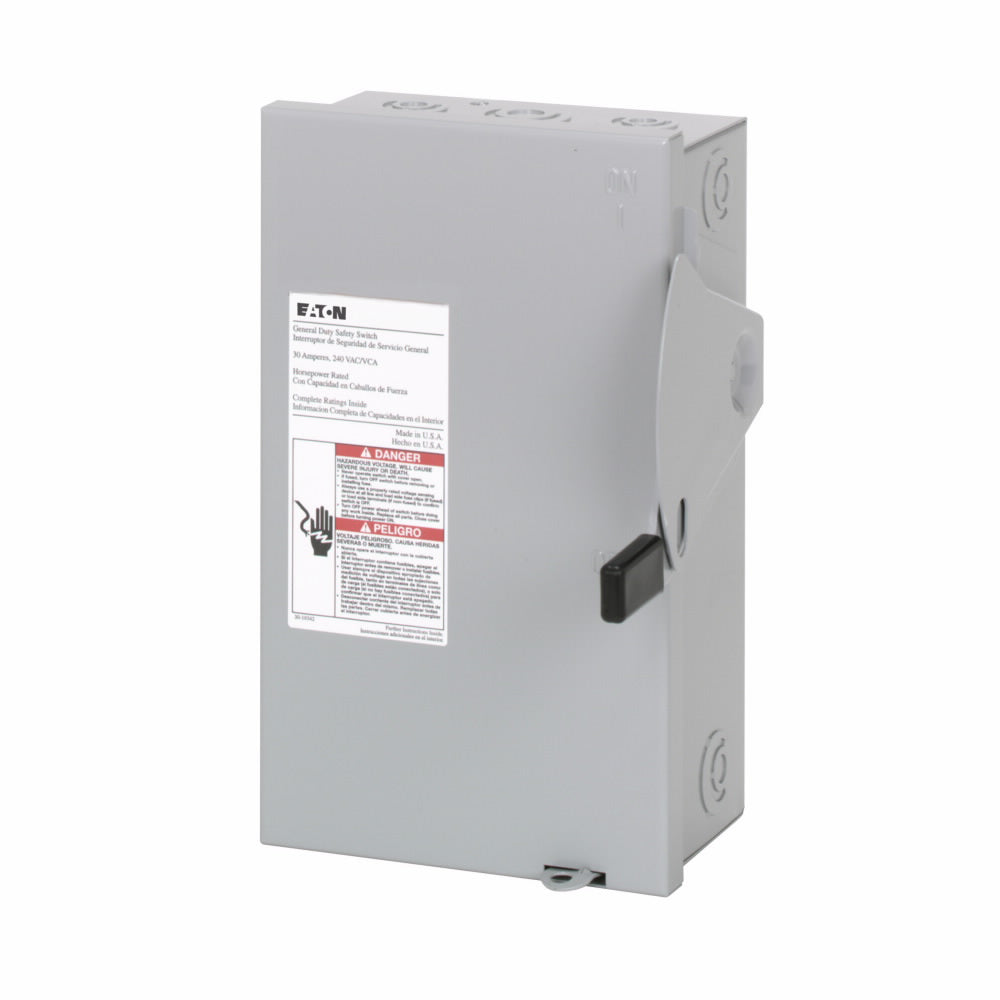

DG221NGB - Cutler Hammer 30A 240V 2-Pole General Duty Fusible Safety Switch NEMA 1

DG221NGB

DG221NGB is a Cutler Hammer general duty fusible safety switch rated for 30 amps and 240 volts with a 2-pole configuration.

This switch features a NEMA 1 painted steel enclosure, two poles, three wires, and uses Class H cartridge fuses with a solid neutral. It is designed for general duty applications and complies with UL listing and NEC 230.62(C) barrier requirements. The switch supports 1-1/2 to 3 hp single-phase and 3 to 7-1/2 hp three-phase motor ratings when dual element fuses are used.

Key Specifications
• Amperage: 30A
• Voltage: 240V AC
• Poles: 2
• Wires: 3
• Fuse Type: Class H cartridge fuses (not included)
• Enclosure: NEMA 1, painted steel
• Mounting Type: Surface mount
• Interrupt Rating: General duty
• Neutral: Solid neutral
• Certifications: UL Listed
• Series/Frame: DG Series
• Trip Unit: Fusible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DG221NGB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DG Series
• Type : DG
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SGLA

Product Data

• UPC : 782113120171
• GTIN : 00785901259497
• Country of Origin : United States
• Dimensions : 6.89 in x 10.23 in x 6.1 in (Length/Depth x Height x Width)
• Weight : 5.5
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
