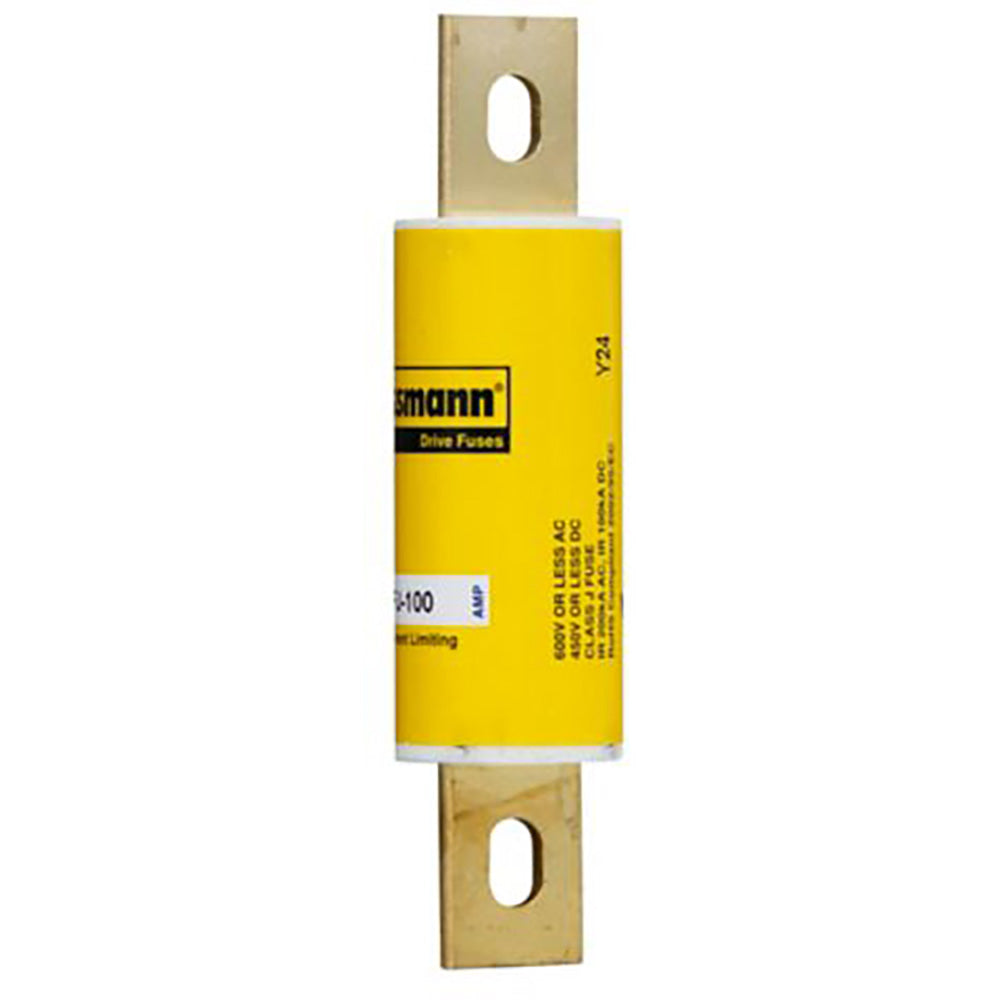

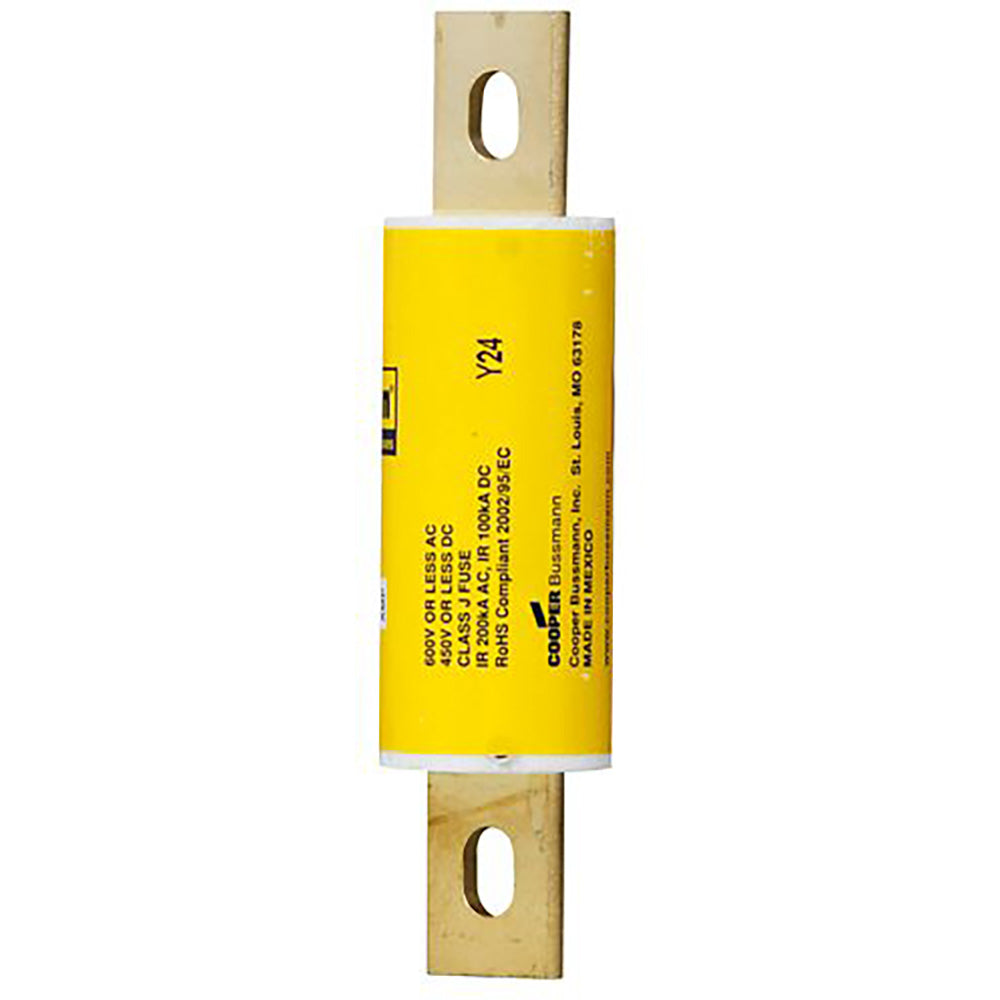

DFJ-90 - Eaton Bussmann 90A 600V AC 450V DC Class J High Speed Clip-Lock Fuse

DFJ-90

DFJ-90 is a high speed, current-limiting fuse from Eaton Bussmann designed for AC and DC drive protection.This Class J fuse features a 90 amp rating, 600 Vac or less and 450 Vdc or less voltage rating, and a 200 kA interrupt rating at 600 Vac (100 kA at 450 Vdc). It uses a melamine tube construction with a clip-lock mounting style and is non-indicating. The DFJ series provides excellent protection for solid state motor controllers and drives with fast-acting characteristics.

• Amperage: 90 A
• Voltage: 600 Vac max, 450 Vdc max
• Interrupt Rating: 200 kAIC at 600 Vac, 100 kAIC at 450 Vdc
• Class: J
• Mounting Type: Clip-lock
• Material: Melamine tube
• Fuse Indicator: Non-indicating
• Series: DFJ
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Body Style: High speed, current limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DFJ-90
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : DFJ Series
• Type : DFJ
• Voltage : 600
• Amperage : 90
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712653404
• GTIN : 00051712653404
• Country of Origin : Mexico
• Dimensions : 4.83 in x 1.19 in x 1.18 in (Length/Depth x Height x Width)
• Weight : 0.31
• Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
