2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

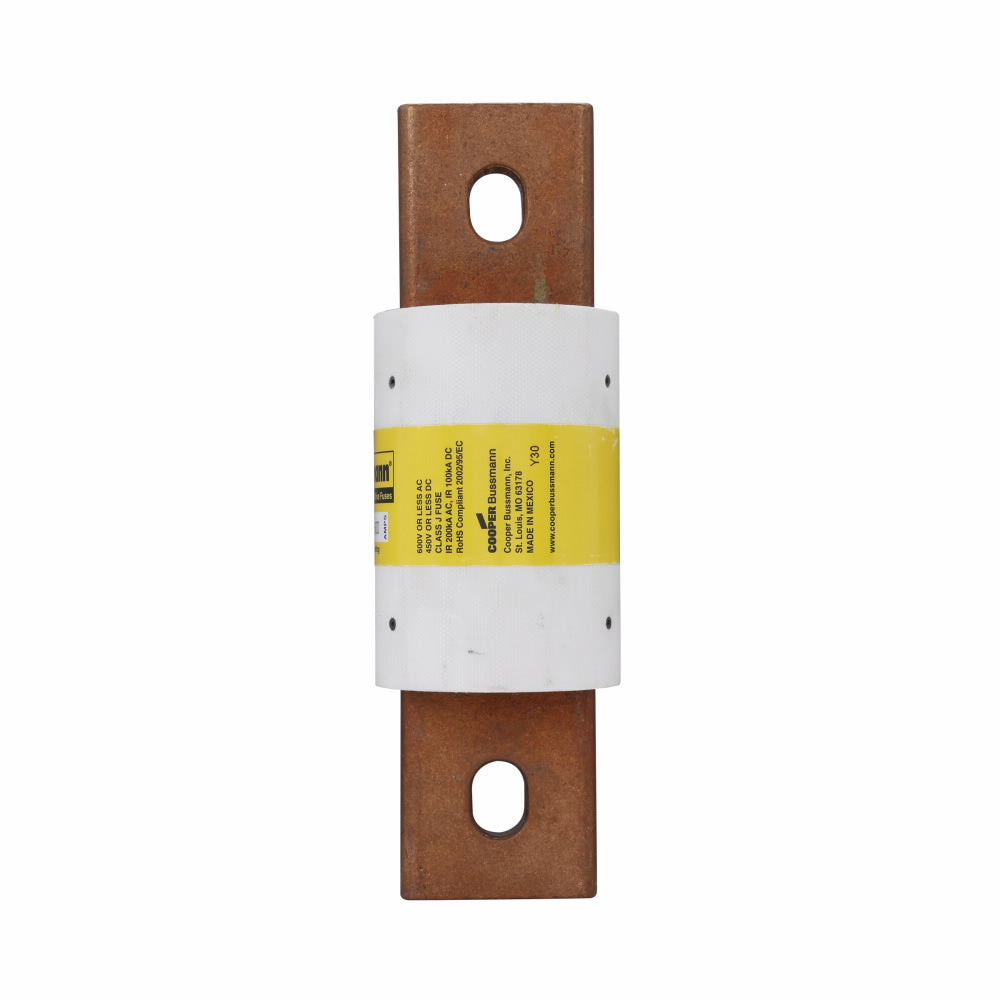

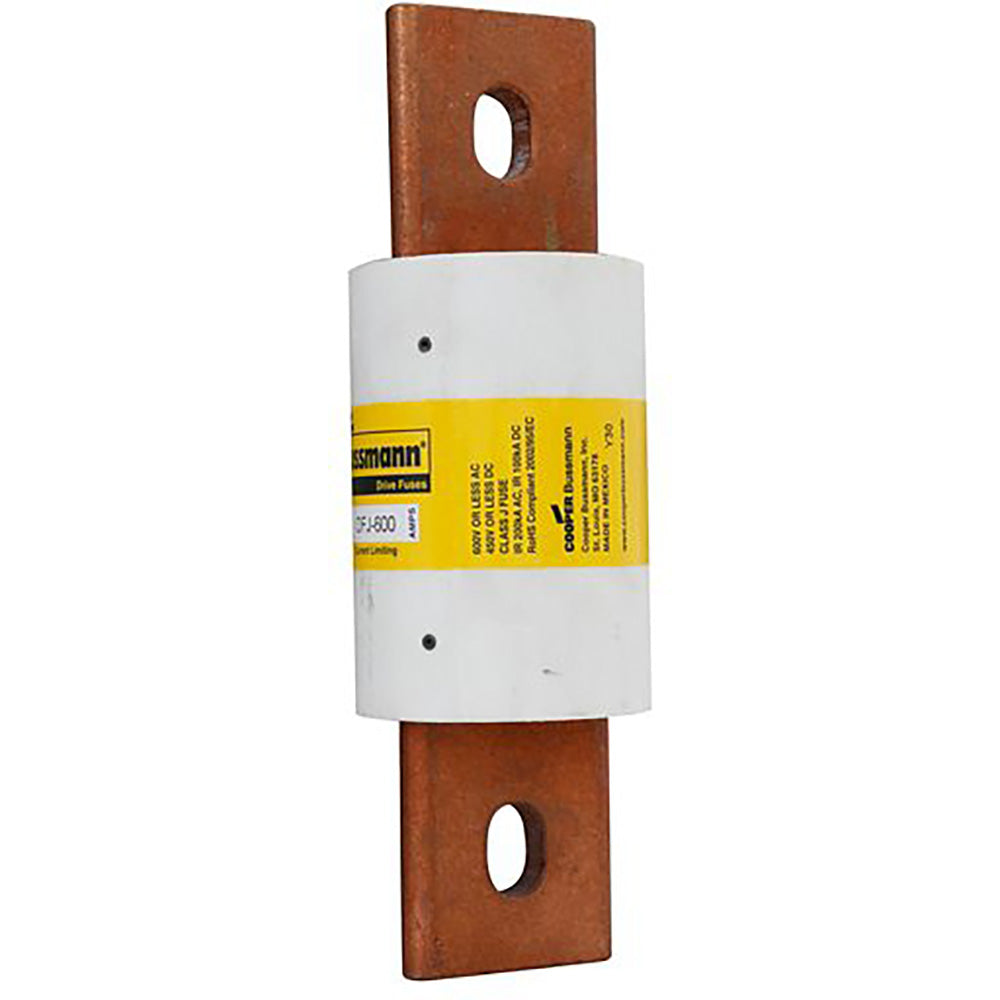

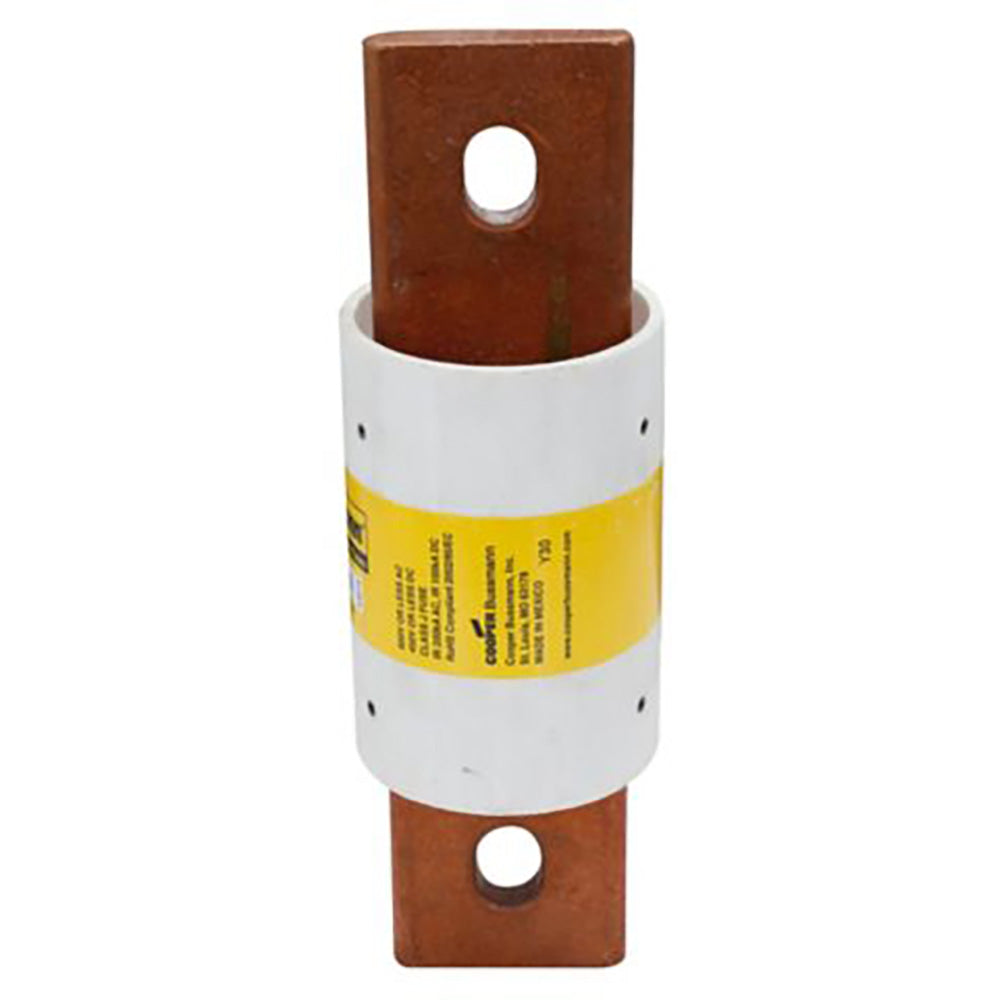

DFJ-600
DFJ-600 is a high-speed, current-limiting Class J drive fuse designed for variable speed drives and electric motor controllers. This fuse delivers rapid response protection with the lowest let-through energy available in its class, making it ideal for coordinating with modern variable frequency drives and industrial control systems. The DFJ-600 utilizes standard Class J dimensions, allowing seamless integration with existing fuse blocks, holders, and switches without modification.
- Amperage Rating: 600A
- Voltage Rating: 450Vdc or less, 600Vac or less
- Interrupt Rating: 200kA RMS Symmetrical at 600Vac, 100kA DC at 450Vdc
- Fuse Type: High-Speed, Current-Limiting
- Class: Class J
- Mounting: Bolt-on terminal connection
- Physical Dimensions: 2.50 inches diameter x 8.00 inches length
- Certifications: cULus Listed (File No. JDDZ.E4273), UL 248-8, CSA C22.2 No. 248.8, RoHS Compliant, CE Marked
- Agency Approvals: UL and CSA certified for Class J fuses
Specifications
- Part Number: DFJ-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 05171265399
- GTIN : 00051712653992
- Dimensions : 9 in x 2 in x 3 in (Length/Depth x Height x Width)
- Weight : 1.39
