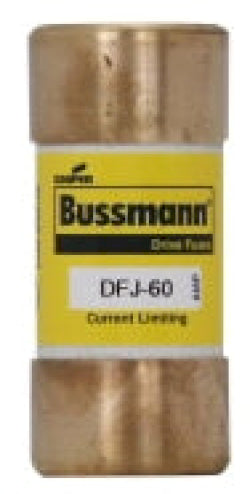

DFJ-60 - Eaton Bussmann Class J High Speed Fuse 60A 600VAC 450VDC 200kAIC Clip-Lock

DFJ-60

DFJ-60 is a Bussmann series high speed Class J fuse rated for 60 amps, 600 VAC, and 450 VDC with a 200 kA interrupt rating at 600 VAC and 100 kA at 450 VDC. It features a melamine tube and clip-lock connection for secure mounting.DFJ-60 provides fast-acting, current-limiting protection ideal for AC and DC drives and controllers, ensuring maximum protection for power semiconductor devices. It is non-indicating and UL listed with CSA certification, compliant with CE and RoHS standards.

• Amperage: 60 A
• Voltage Rating: 600 VAC, 450 VDC
• Interrupt Rating: 200 kAIC at 600 VAC, 100 kAIC at 450 VDC
• Class: J
• Fuse Type: High Speed, Current Limiting
• Connection: Clip-lock
• Material: Melamine Tube
• Fuse Indicator: Non Indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Mounting Type: Holder

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DFJ-60
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : DFJ Series
• Type : DFJ
• Voltage : 600
• Amperage : 60
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712653374
• GTIN : 00051712653374
• Country of Origin : Mexico
• Dimensions : 1 in x 2.4 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
