Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

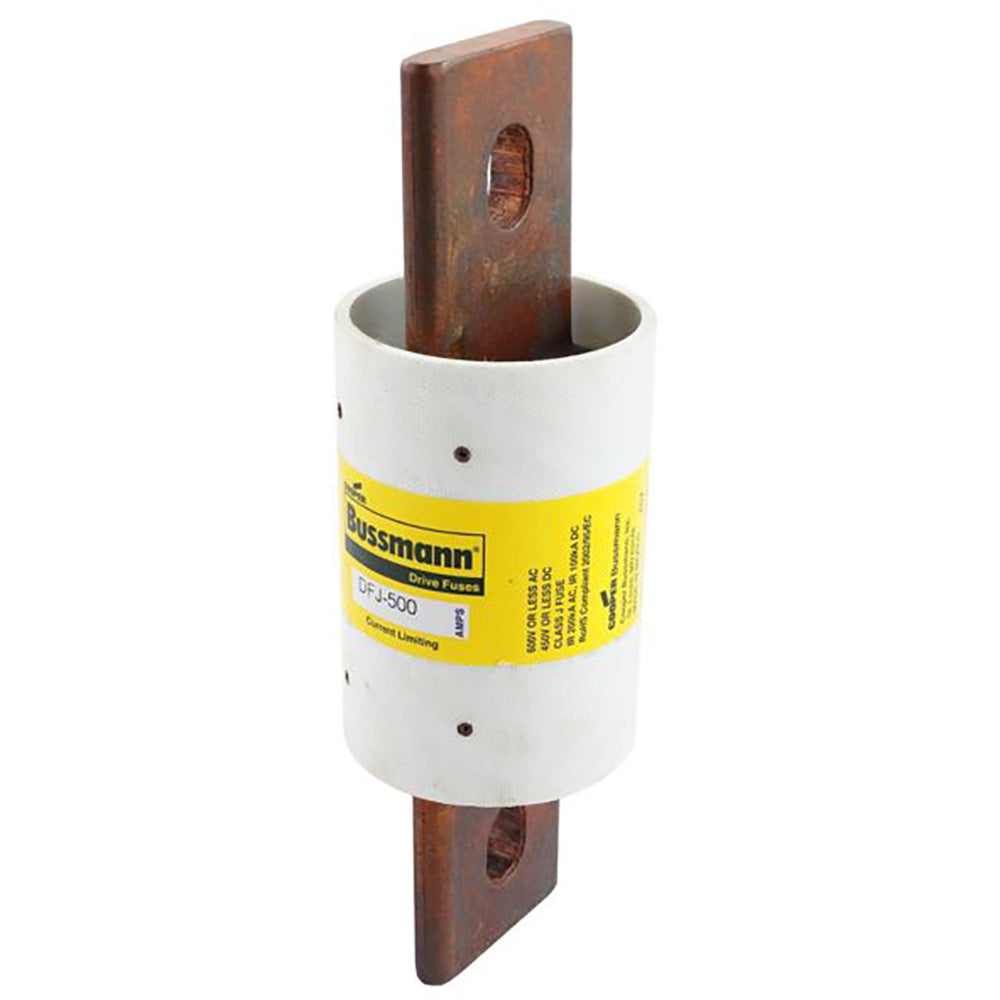

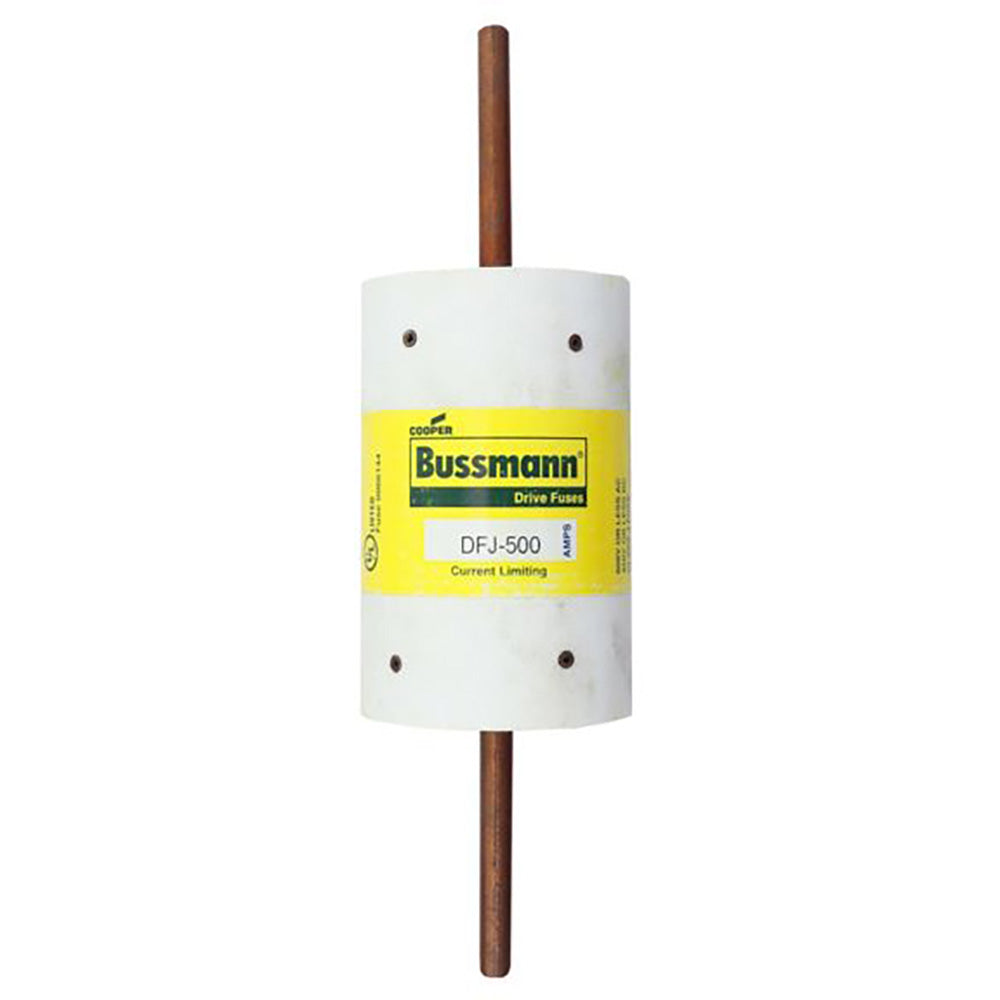

DFJ-500
DFJ-500 is a high speed, current-limiting fuse designed for maximum protection in AC and DC drive applications. This fuse provides reliable circuit protection for variable speed drives and electric controllers. The Eaton Bussmann series DFJ-500 is a Class J high speed fuse with a 500A current rating, suitable for use up to 600VAC or 450VDC. It features a clip lock terminal type and is non-indicating. The fuse is engineered for fast-acting, current-limiting performance and is compatible with standard Class J fuse blocks and holders.
- 500A current rating
- 600VAC / 450VDC voltage rating
- 200kA RMS symmetrical interrupting rating at 600VAC
- 100kA interrupting rating at 450VDC
- Clip lock terminal type
- Class J high speed fuse
- Non-indicating
- cULus Listed
- UL 248-8 compliant
- CSA C22.2 No. 248.8 compliant
- RoHS compliant
- CE marked
Specifications
- Part Number: DFJ-500
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : DFJ Series
- Type : DFJ
- Voltage : 600
- Amperage : 500
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712653985
- GTIN : 00051712653985
- Dimensions : 8.28 in x 2.65 in x 2.71 in (Length/Depth x Height x Width)
- Weight : 1.39
