Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
DFJ-400

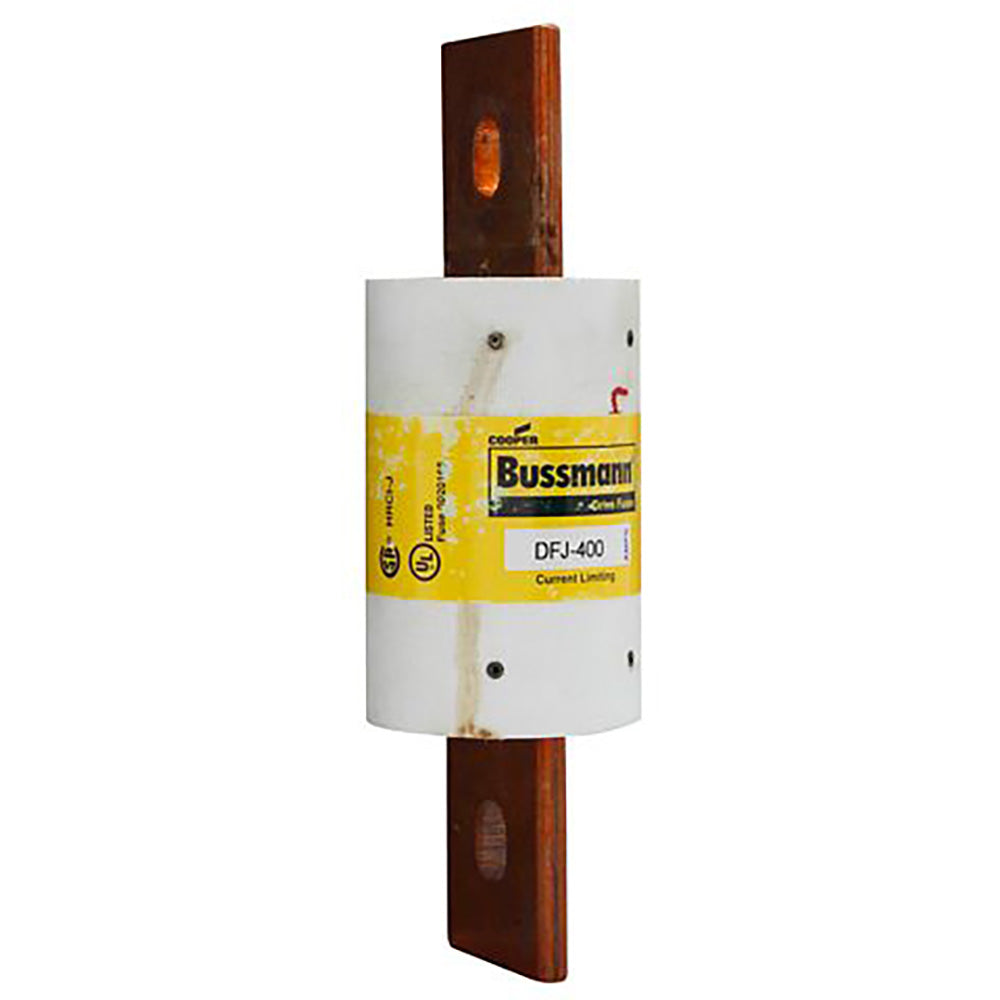

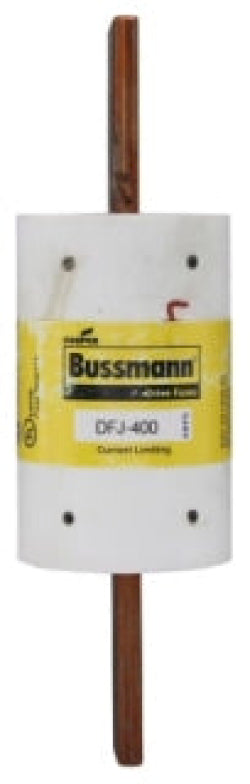

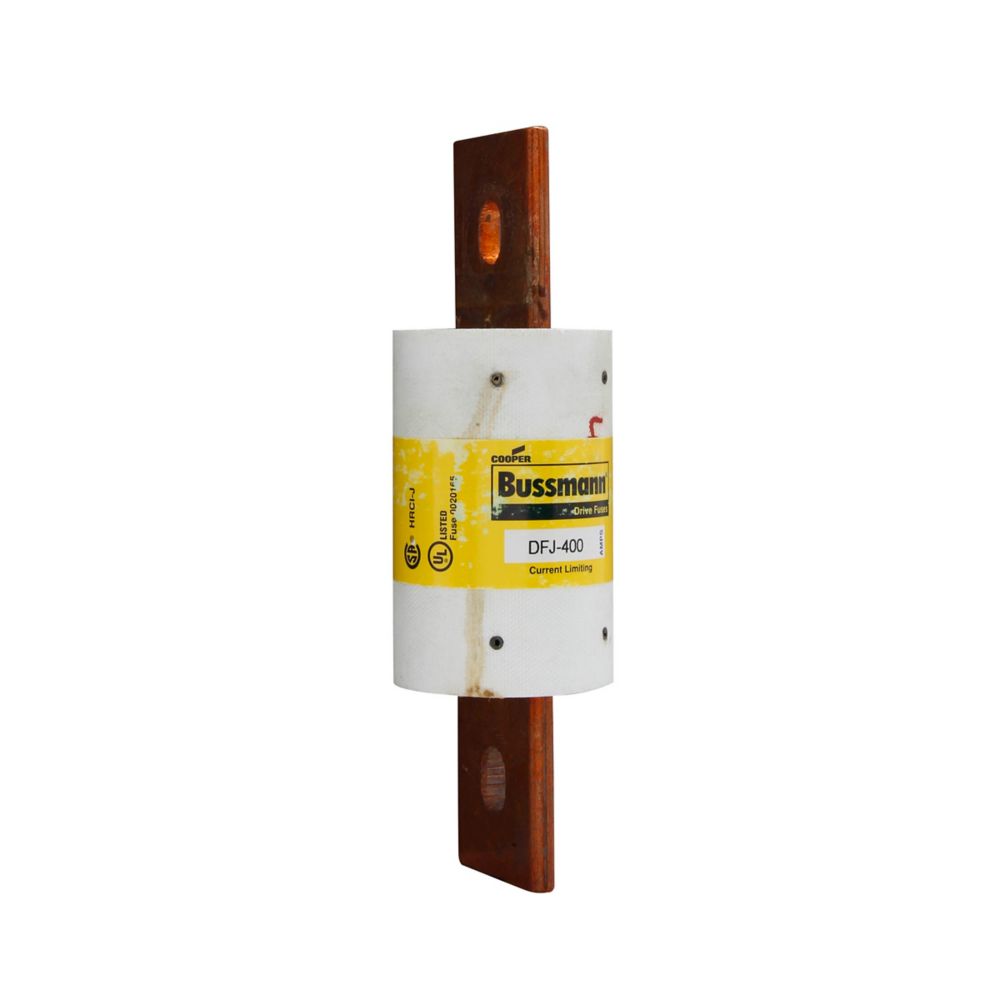

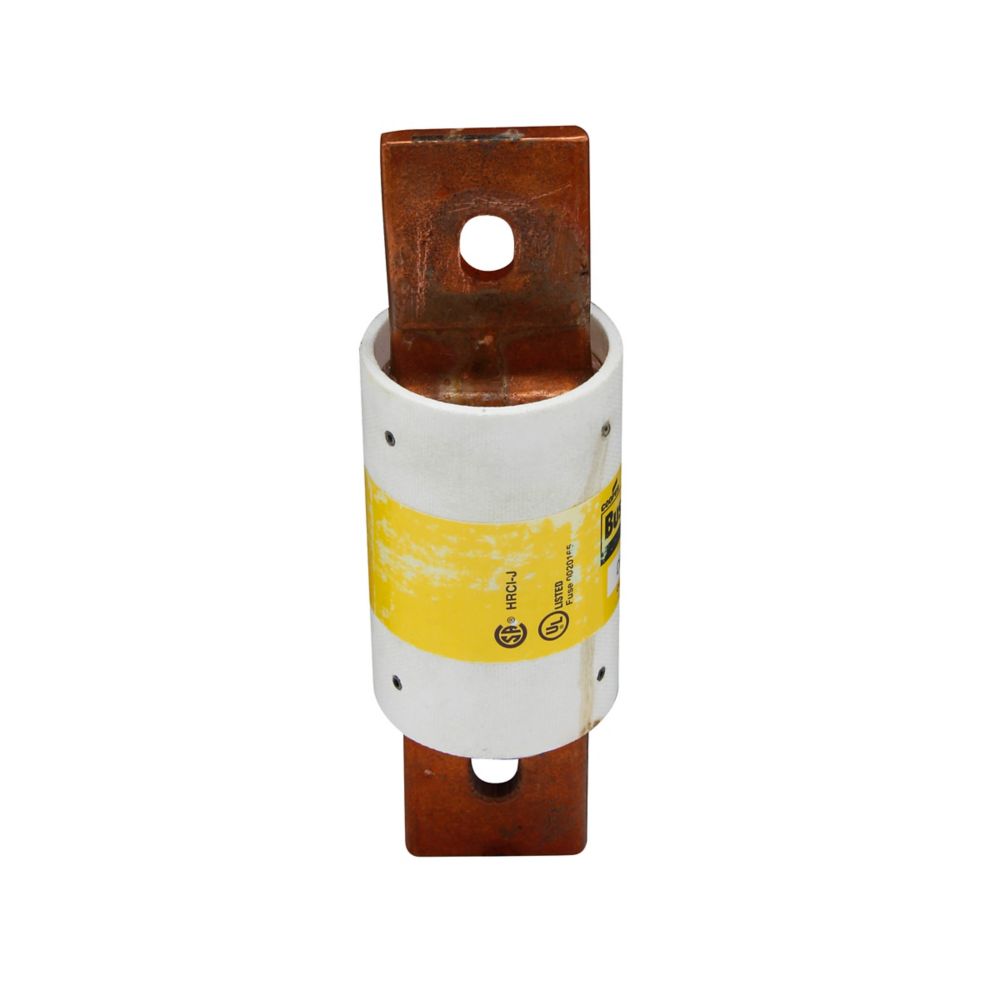

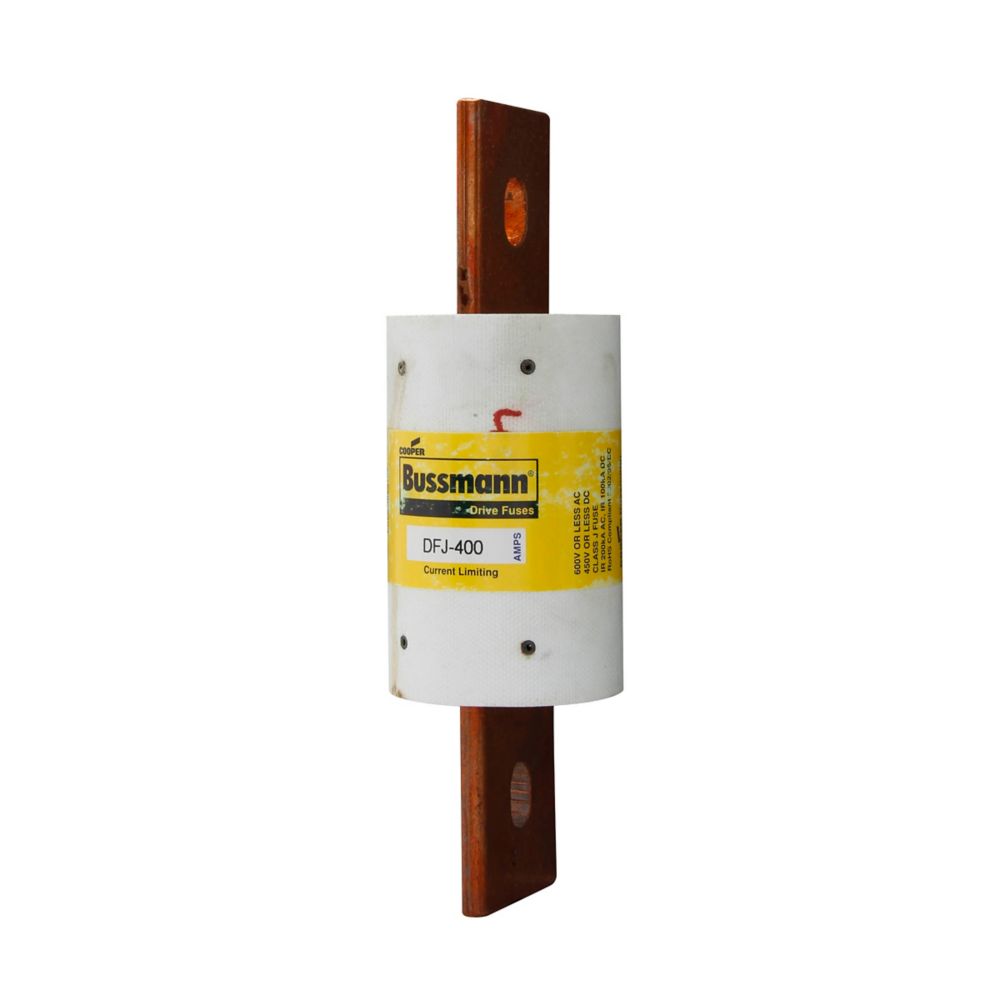

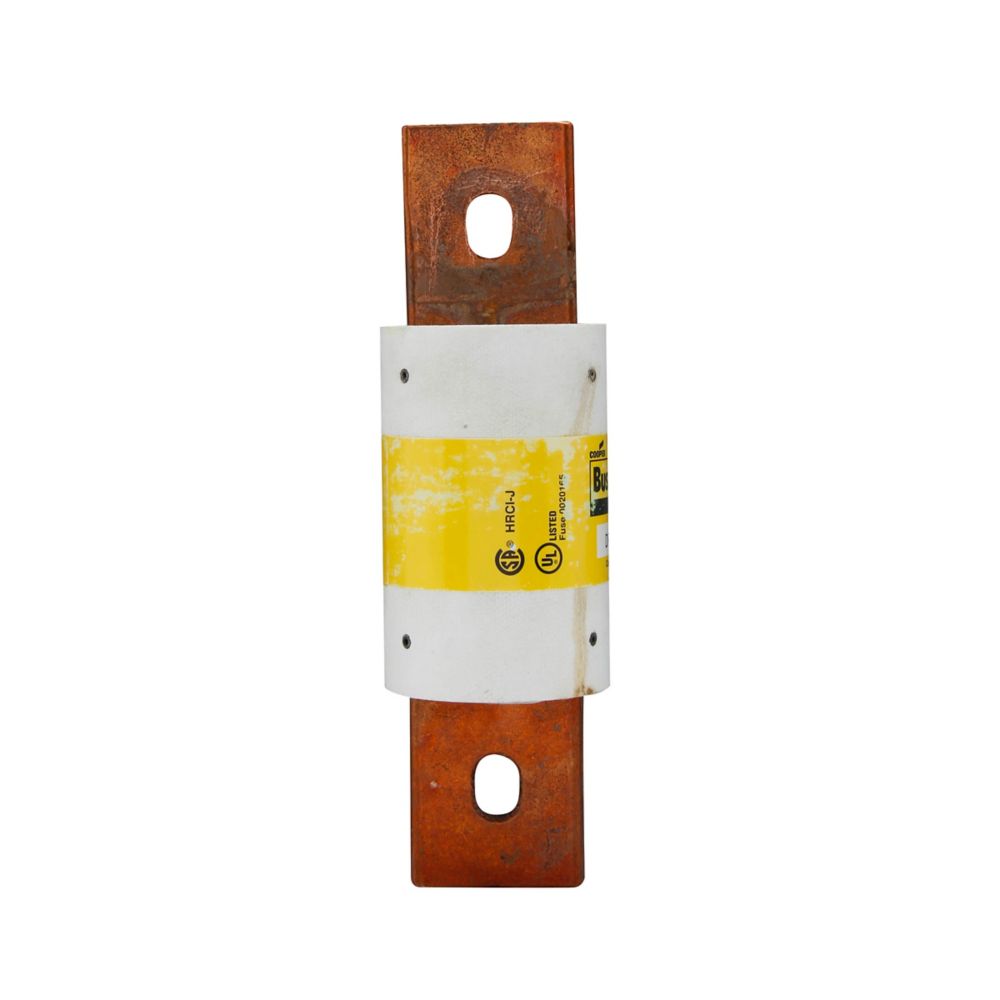

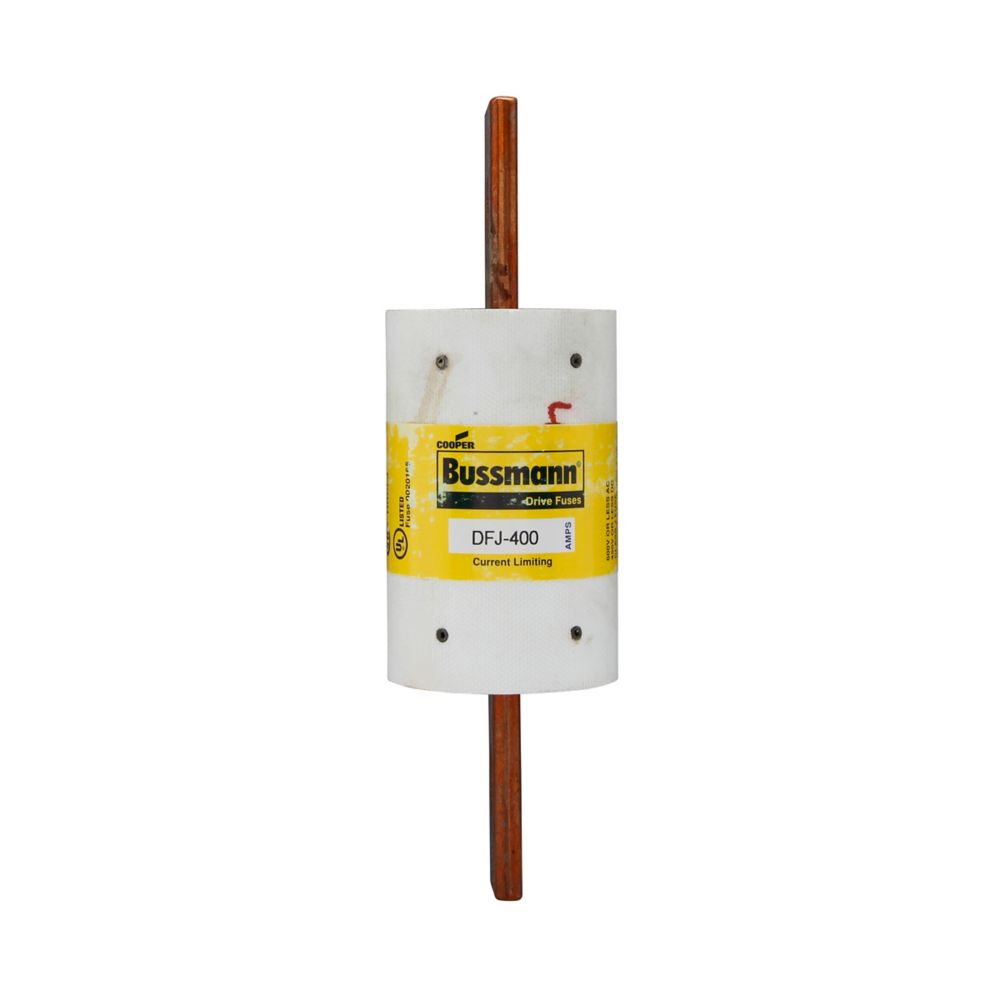

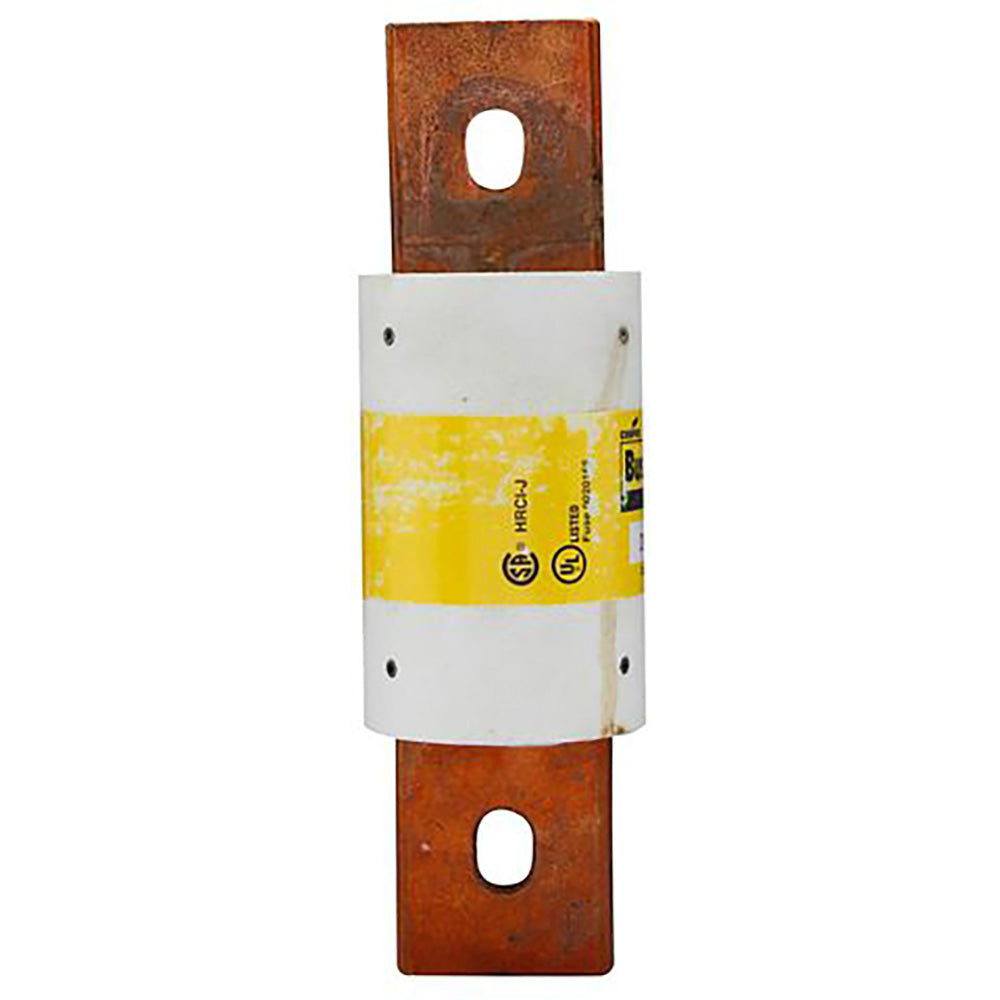

DFJ-400 is a high speed, current-limiting fuse designed for maximum protection in AC and DC drive applications. This Eaton Bussmann series fuse features a 400A current rating, 600VAC and 450VDC voltage ratings, and a 200kAIC interrupt rating at 600VAC, 100kAIC at 450VDC. The fuse is non-indicating and uses a clip-lock mounting style for secure installation. Engineered for solid state motor controllers and power semiconductors, the DFJ-400 offers excellent cycling ability and compact size. Its melamine tube construction ensures durability and reliable performance in demanding environments.
- Part Number: DFJ-400
- Manufacturer: Eaton
- Amperage Rating: 400A
- Voltage Rating: 600VAC, 450VDC
- Interrupt Rating: 200kAIC at 600VAC, 100kAIC at 450VDC
- Mounting Type: Clip-Lock
- Series: Bussmann DFJ Class J
- Fuse Indicator: Non-Indicating
- Material: Melamine Tube
- UL Listed: Yes
- CSA Certified: Yes
- Compliance: CE Marked, RoHS Compliant
Specifications
- Part Number: DFJ-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : DFJ Series
- Type : DFJ
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712653961
- GTIN : 00051712653961
- Country of Origin : Mexico
- Dimensions : 2.13 in x 7.5 in x 2.13 in (Length/Depth x Height x Width)
- Weight : 1.55
- Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
