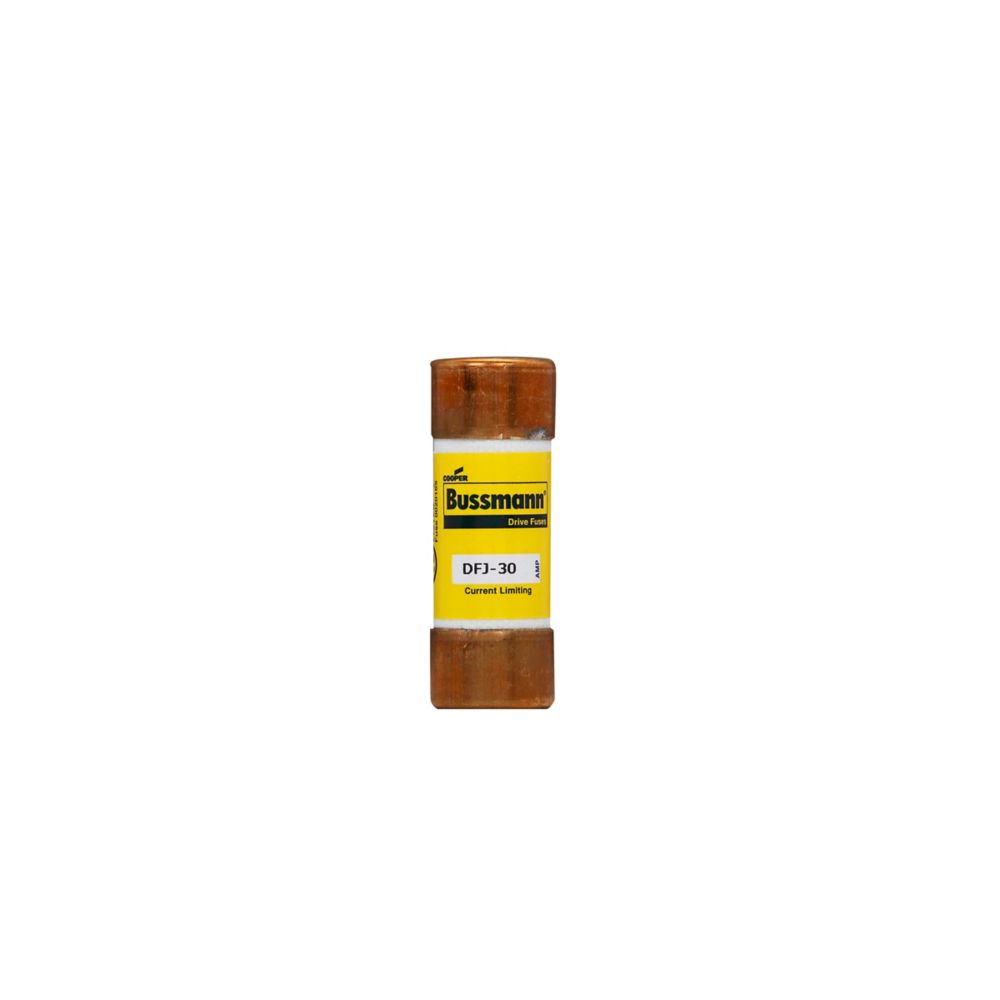

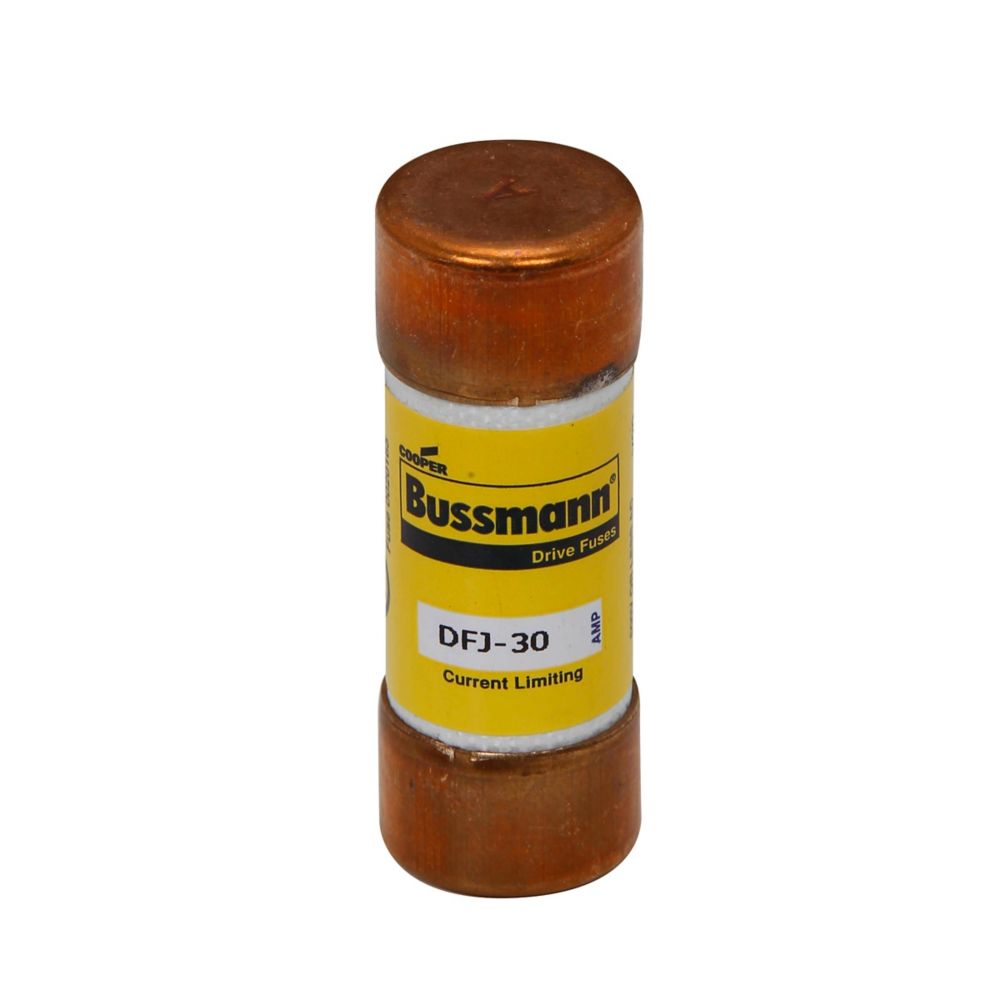

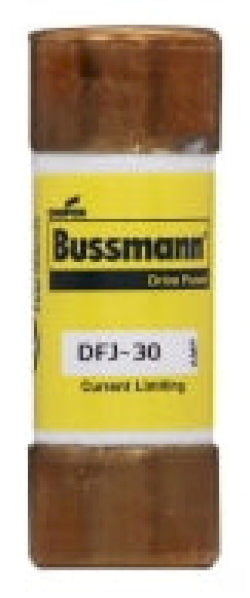

DFJ-30 - Eaton Bussmann 30A 600V Class J High Speed Fuse, Clip-Lock, Melamine Tube, 200kAIC AC, 100kAIC DC

DFJ-30

DFJ-30 is a high speed Class J fuse from Eaton Bussmann designed for protection of power semiconductors and solid state motor controllers.This 30 Amp fuse is rated for 600 Vac or less and 450 Vdc or less, featuring a 200,000 AIC interrupt rating at 600 Vac and 100,000 AIC at 450 Vdc. It uses a clip-lock connection and a melamine tube construction, providing excellent cycling ability and current limiting protection.

• Amperage: 30 A
• Voltage: 600 Vac / 450 Vdc
• Interrupt Rating: 200 kAIC AC / 100 kAIC DC
• Class: J
• Mounting Type: Clip-lock
• Material: Melamine tube
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Designed for solid state motor controllers
• Compact size: 0.74 in x 2.27 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DFJ-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : DFJ Series
• Type : DFJ
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712653329
• GTIN : 00051712653329
• Country of Origin : Mexico
• Dimensions : 0.74 in x 2.27 in x 0.74 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
