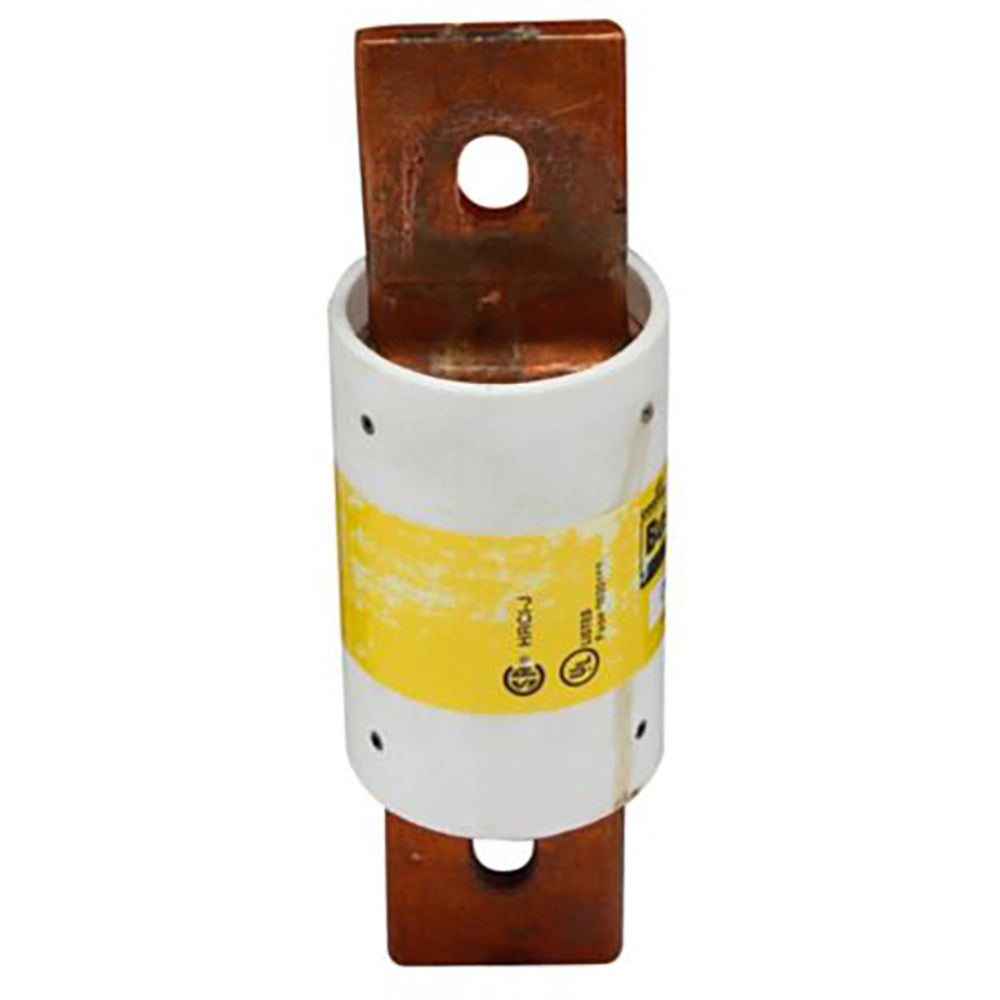

DFJ-250 - Eaton Bussmann 250A 600VAC Class J High Speed Fuse 1 Pole Clip-Lock 200kAIC

DFJ-250

DFJ-250 is an Eaton Bussmann series high speed Class J fuse designed for reliable protection in AC and DC circuits.This 250 amp fuse is rated for 600 VAC or less and 450 VDC or less, with a high interrupting rating of 200 kAIC at 600 VAC and 100 kAIC at 450 VDC. It features a clip-lock connection and a melamine tube construction, providing excellent cycling ability and current limiting protection ideal for solid state motor controllers and power semiconductor protection. The fuse is UL listed, CSA certified, and RoHS compliant.

Key Specifications
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC / 450 VDC
• Interrupting Rating: 200 kAIC at 600 VAC, 100 kAIC at 450 VDC
• Class: J High Speed
• Poles: 1
• Connection Type: Clip-lock
• Material: Melamine tube
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Physical Size: Approx. 2.13 in x 7.5 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DFJ-250
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : DFJ Series
• Type : DFJ
• Voltage : 600
• Amperage : 250
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712653480
• GTIN : 00051712653480
• Country of Origin : Mexico
• Dimensions : 2.13 in x 7.5 in x 2.13 in (Length/Depth x Height x Width)
• Weight : 1.55
• Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
