Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
DFJ-200

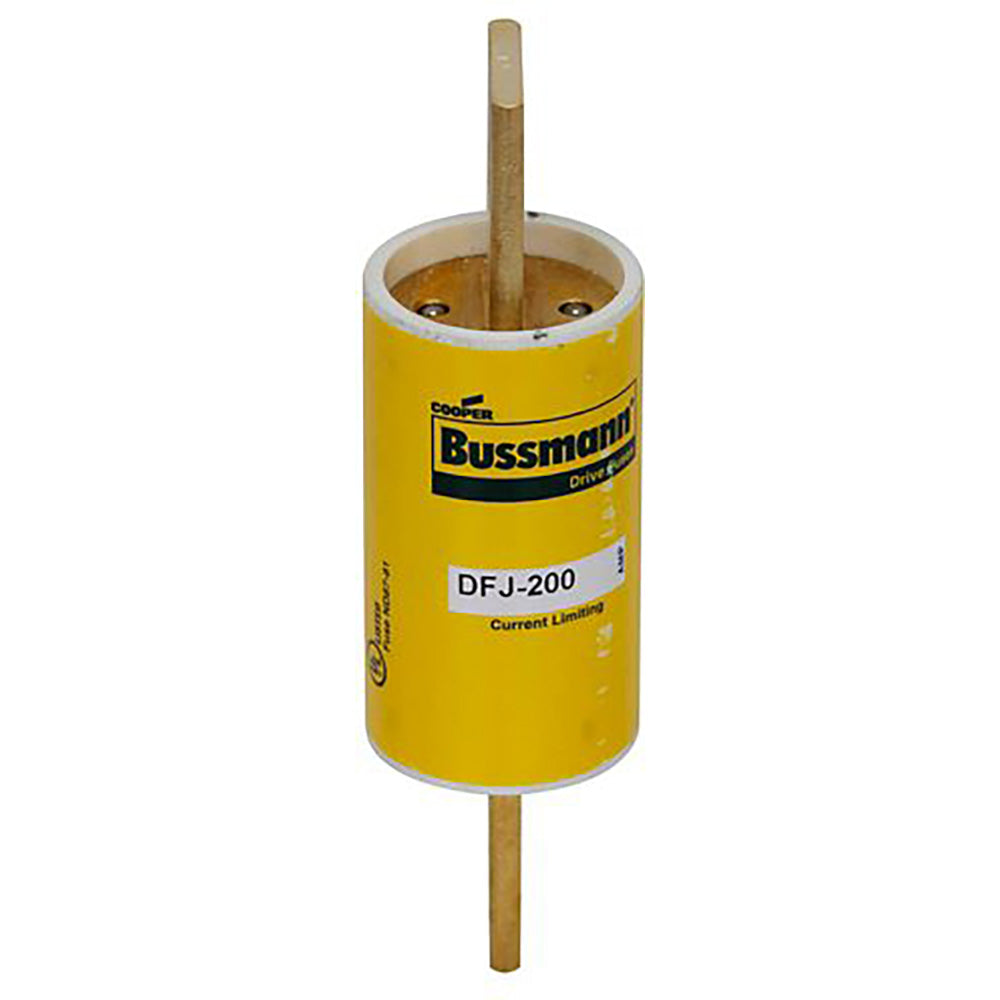

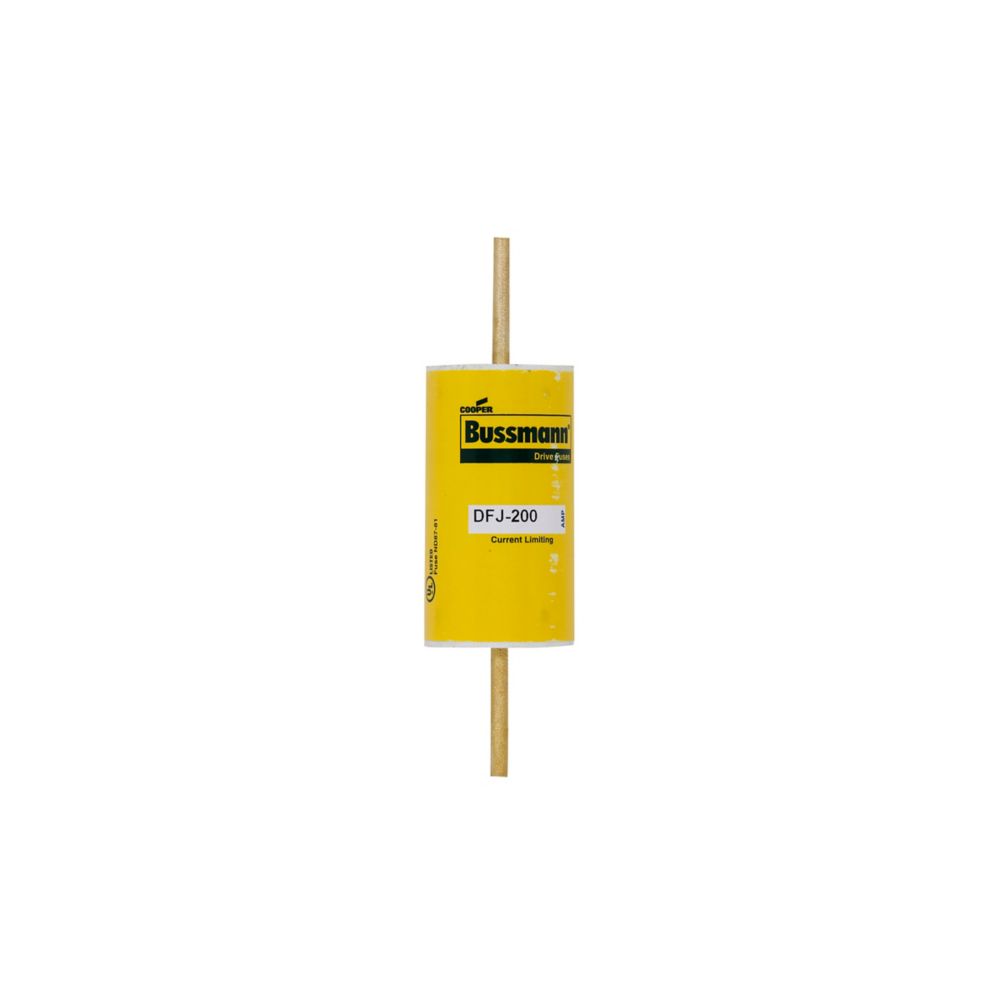

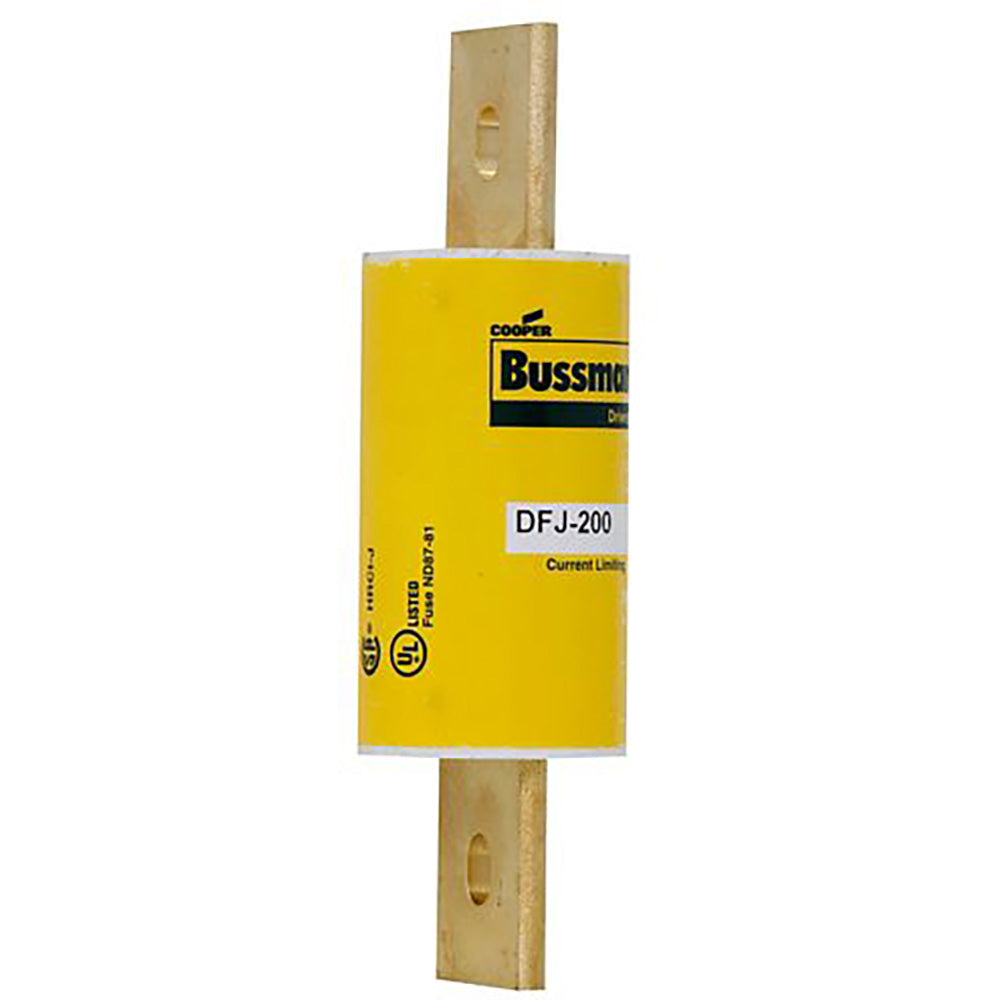

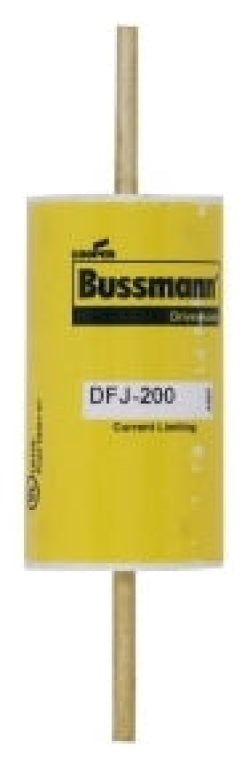

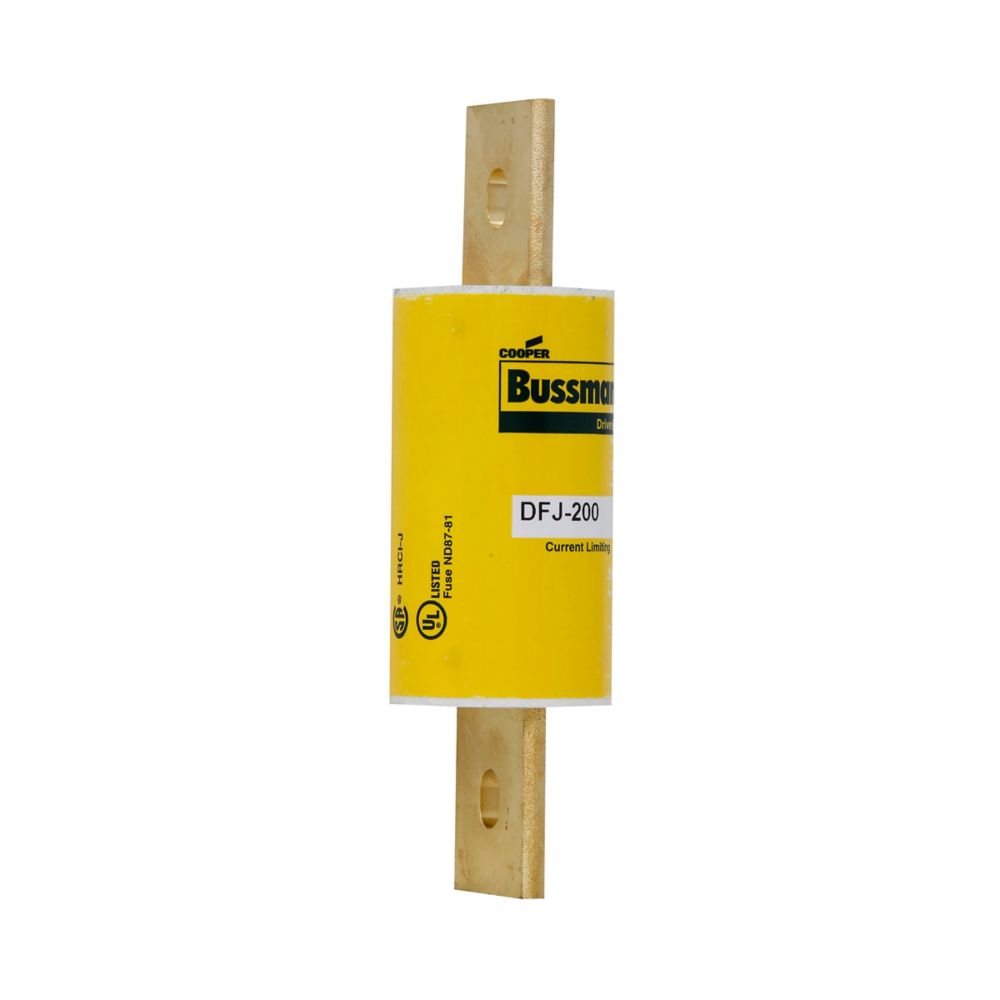

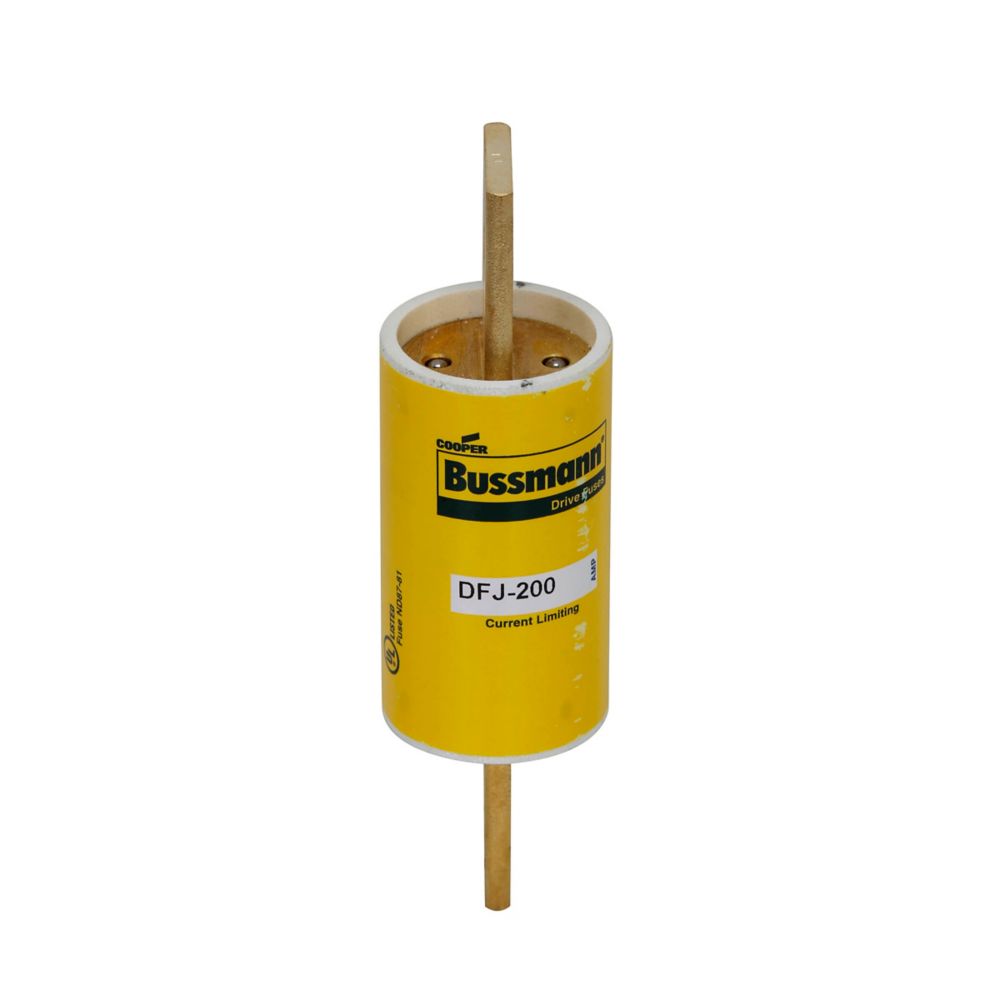

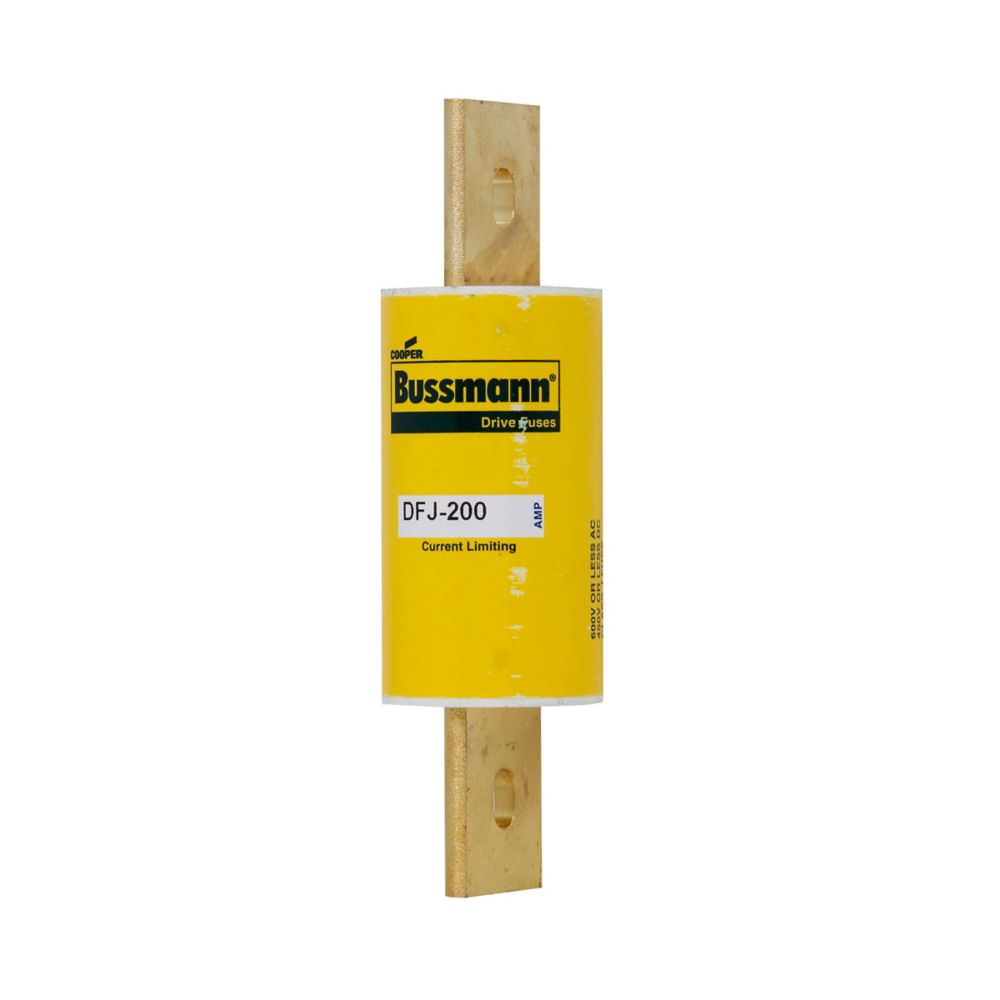

DFJ-200 is a 200 amp, 600 volt AC Class J high speed current-limiting fuse from Eaton Bussmann designed for maximum protection of AC and DC drives.This DFJ series fuse features high interrupting ratings of 200 kA at 600 VAC and 100 kA at 450 VDC, making it suitable for solid state motor controllers and drive applications. It is a non-indicating, blade-type fuse with excellent cycling ability and compact size, ensuring reliable and fast-acting protection.
- Amperage: 200A
- Voltage Rating: 600 VAC / 450 VDC
- Fuse Type: Class J High Speed Current-Limiting
- Interrupt Rating: 200 kA at 600 VAC, 100 kA at 450 VDC
- Mounting Type: Blade
- Material: Melamine
- Non-Indicating
- Designed for Solid State Motor Controllers
- Compact Size: 1.63 inch Diameter
- Excellent Cycling Ability
- Series: Bussmann DFJ
- Certifications: UL Listed
Specifications
- Part Number: DFJ-200
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : DFJ Series
- Type : DFJ
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712653466
- GTIN : 00051712653466
- Dimensions : 6 in x 1 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.645
- Certification : CE, UL, CSA
