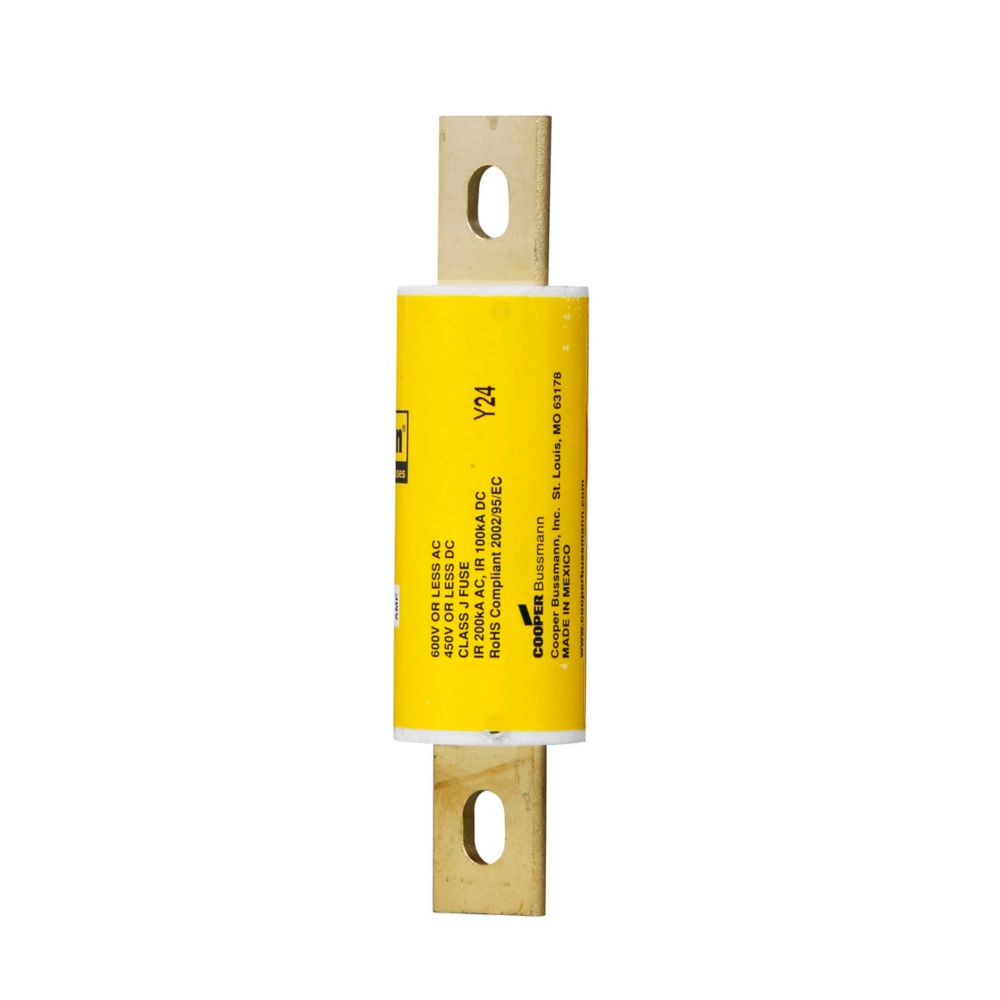

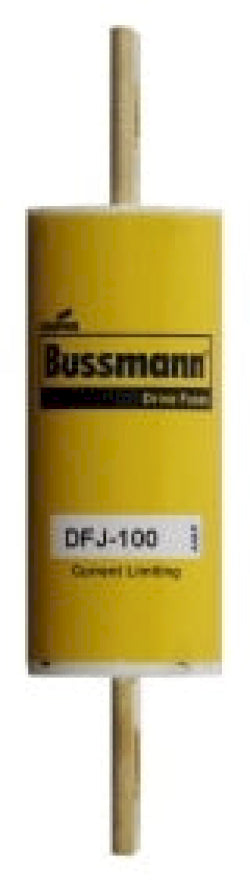

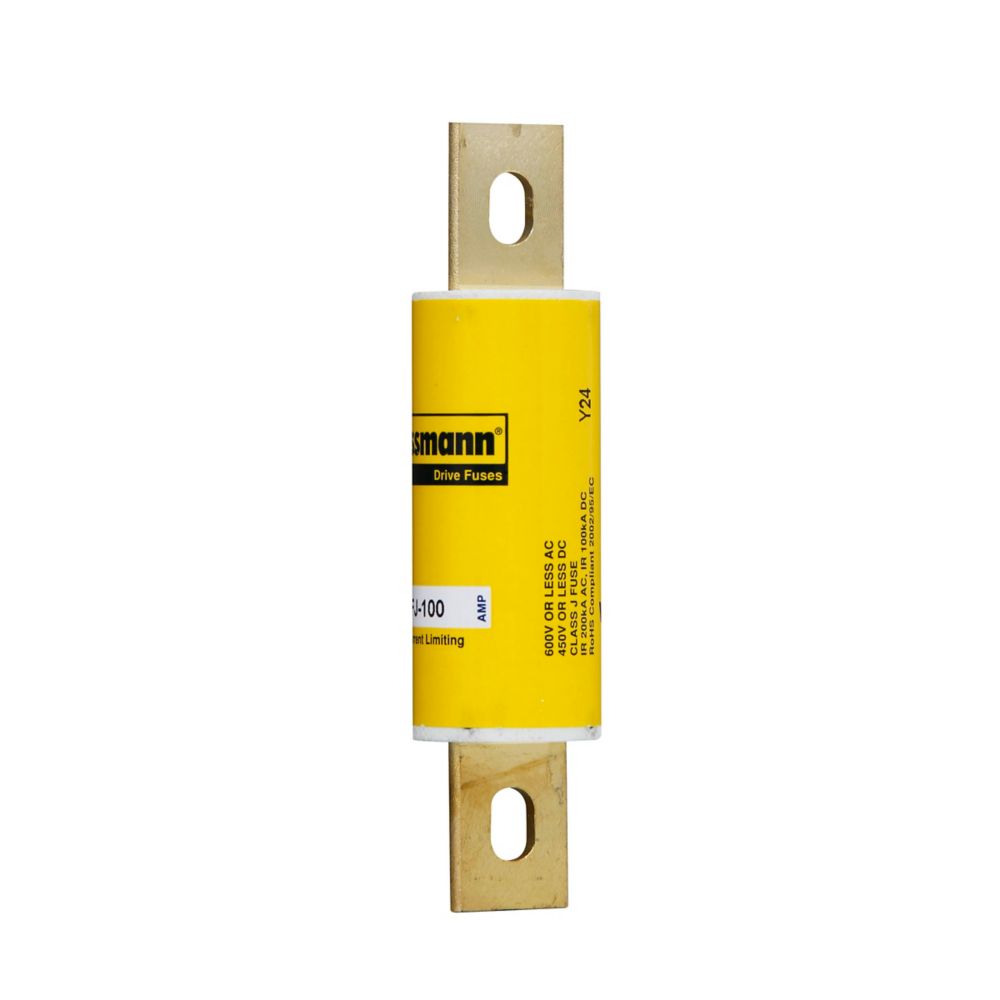

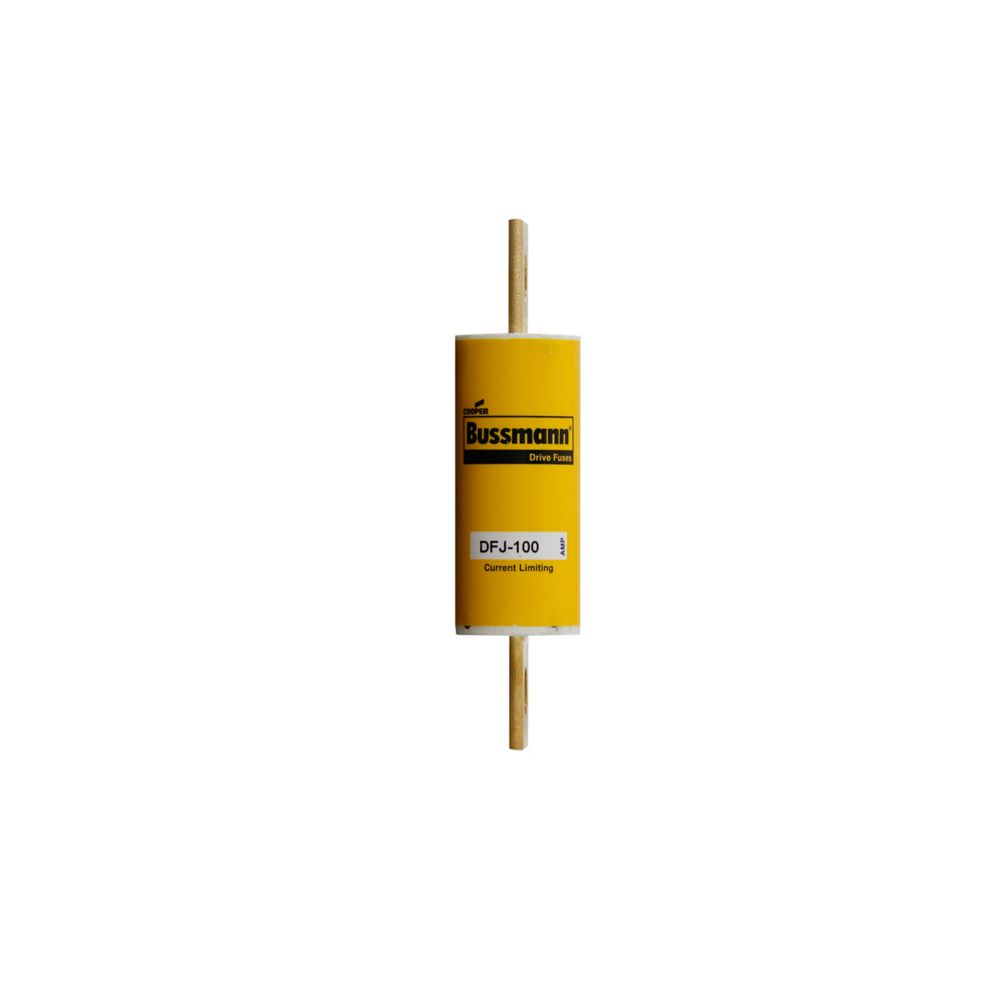

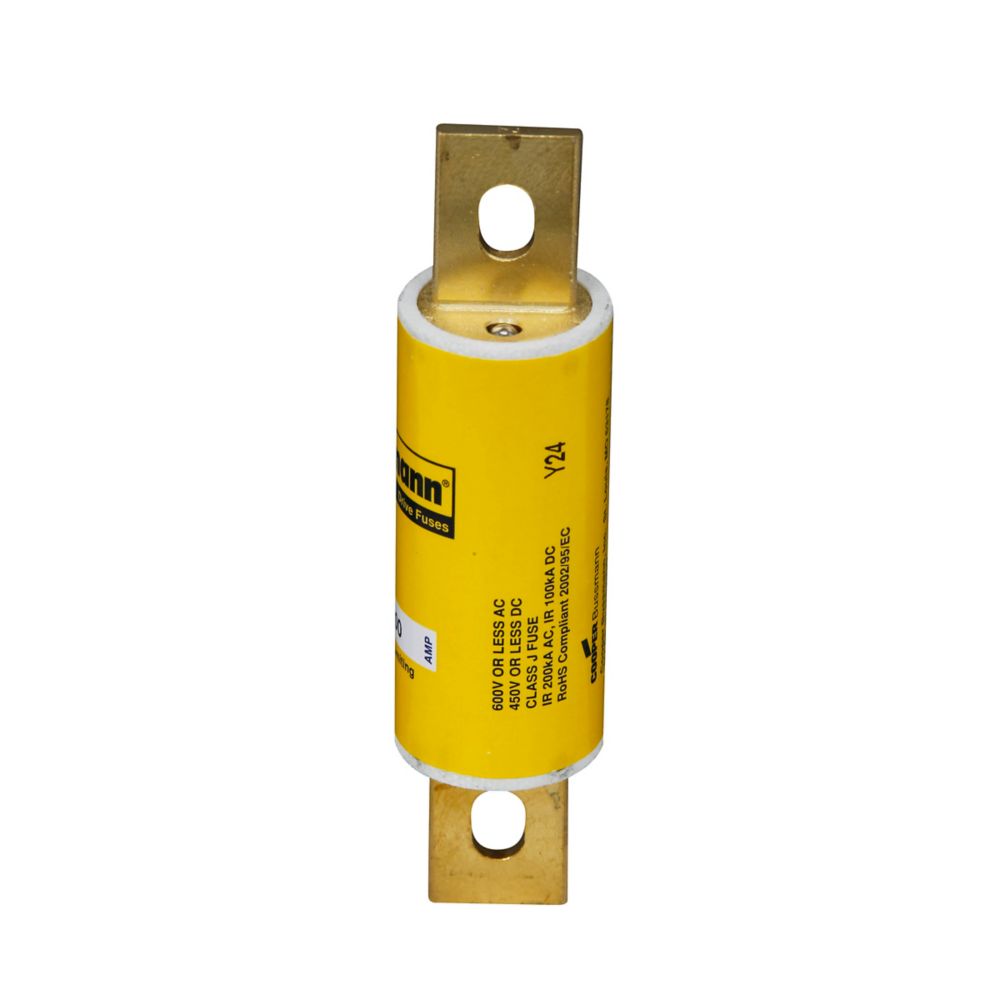

DFJ-100 - Eaton Bussmann 100A 600V AC 450V DC Class J High Speed Fuse

DFJ-100

DFJ-100 is an Eaton Bussmann series Class J high speed fuse designed for protection of AC and DC drives.This 100 amp fuse features a voltage rating of 600 Vac or less and 450 Vdc or less, with a high interrupt rating of 200 kAIC at 600 Vac and 100 kAIC at 450 Vdc. It has a ferrule end x ferrule end connection and is constructed with a durable melamine tube. The fuse is non-indicating and complies with CE, RoHS, CSA, and UL certifications.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 Vac / 450 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac, 100 kAIC at 450 Vdc
• Class: J
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non Indicating
• Material: Melamine tube
• Mounting Style: Stud
• Certifications: CE Marked, RoHS Compliant, CSA Certified, UL Listed
• Body Style: Cartridge Blade
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DFJ-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : DFJ Series
• Type : DFJ
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 051712653411
• GTIN : 00051712653411
• Country of Origin : Mexico
• Dimensions : 4.83 in x 1.19 in x 1.18 in (Length/Depth x Height x Width)
• Weight : 0.31
• Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
