Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
DFJ-10

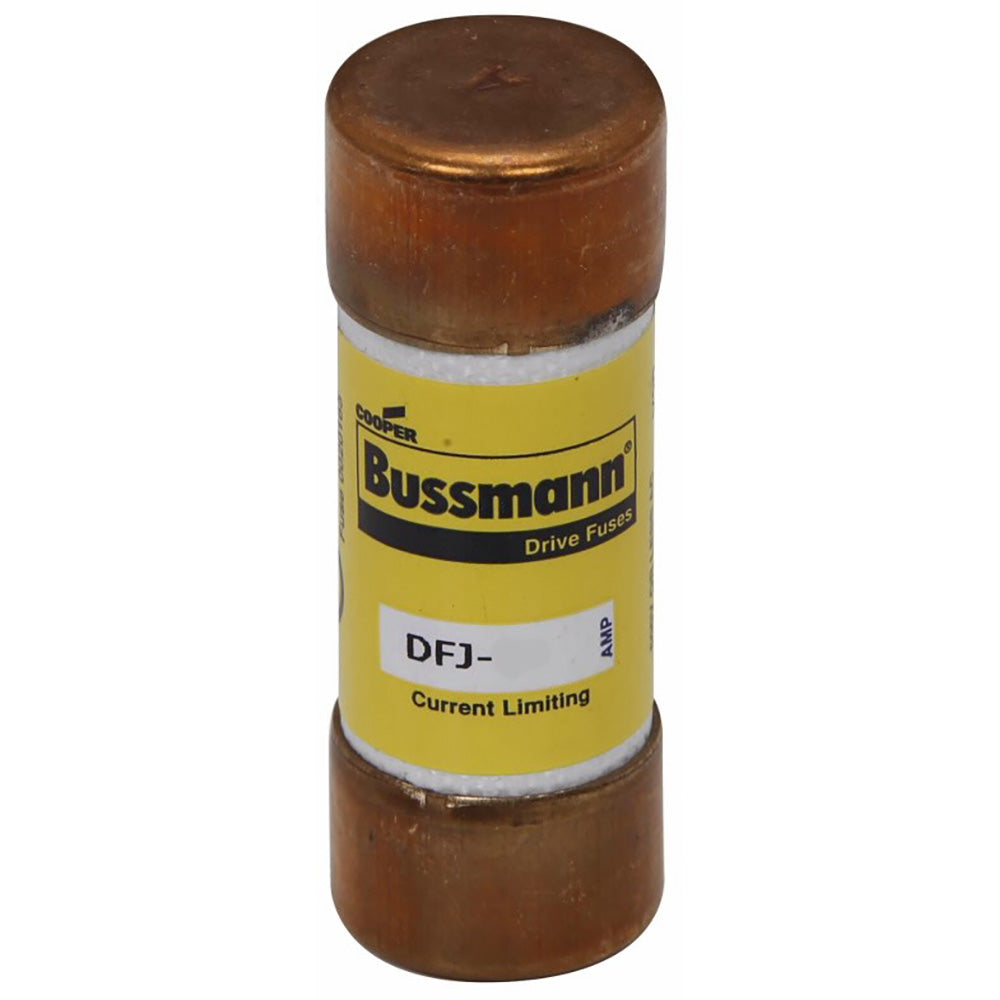

DFJ-10 is a high speed, current-limiting, non-indicating fuse from Eaton Bussmann Series DFJ, designed for maximum protection in AC and DC drive applications.
This Class J fuse features a melamine tube construction, blade end connections, and is rated for 10A, 600VAC or less, and 450VDC or less. It offers high interrupt capacity and is suitable for demanding industrial environments where reliable circuit protection is critical.
-
Key Specifications
- Part Number: DFJ-10
- Manufacturer: Eaton
- Amperage: 10A
- Voltage: 600VAC or less, 450VDC or less
- Poles: Single
- Mounting Type: Cartridge, blade end x blade end
- Interrupt Rating: 200 kAIC at 600VAC, 100 kAIC at 450VDC
- Series/Frame: DFJ, Class J
- Trip Unit: Not applicable (fuse)
- Certifications: CSA Certified, UL Listed, CE Marked, RoHS Compliant
- Body Material: Melamine tube
- Indicator: Non-indicating
- Dimensions: 0.74 in x 2.27 in x 0.74 in (approximate)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DFJ-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 05171265326
- GTIN : 00051712653268
- Country of Origin : Mexico
- Dimensions : 0.74 in x 2.27 in x 0.74 in (Length/Depth x Height x Width)
- Weight : 0.9
- Certification : CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
