Product Info
- Manufacturer:WEG
- Sub-Category:Contactor
Description
CWM250-22-30E21

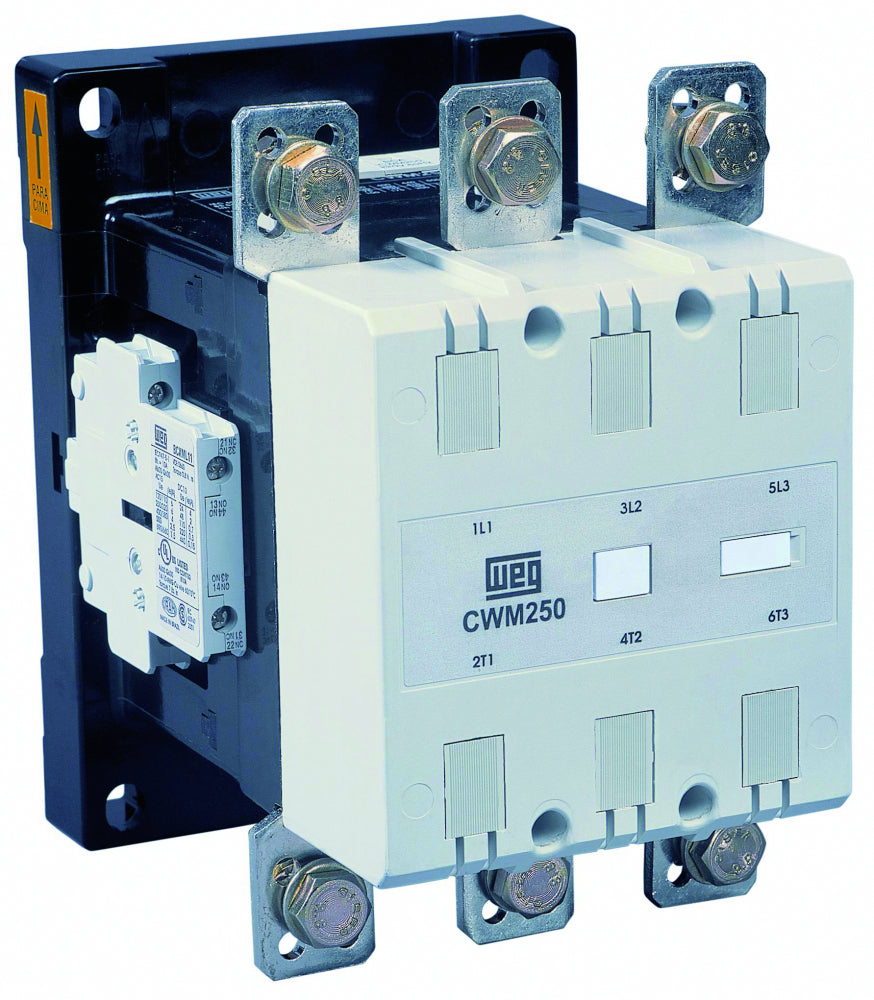

CWM250-22-30E21 is a WEG CWM Series 3 pole contactor rated for 250 amps and designed for motor control applications with a 430-500V AC/DC coil. This contactor provides reliable switching for industrial equipment and features a robust design for demanding environments. The WEG CWM250-22-30E21 contactor is built for IEC standards and offers easy installation with protected terminals. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for control circuit flexibility. The device is suitable for use in a variety of industrial and commercial motor control systems.
- Part Number: CWM250-22-30E21
- Manufacturer: WEG
- Series: CWM
- Rated Current: 250 Amps
- Coil Voltage: 430-500V AC/DC
- Number of Power Poles: 3 Pole
- Main Contacts: 3 NO
- Auxiliary Contacts: 2 NO, 2 NC
- Motor Control Type: IEC Contactor
- Horsepower Rating: 200 HP @ 460V
- Mounting Type: Panel Mount
- Certifications: UL Approved
Specifications
- Part Number: CWM250-22-30E21
- Manufacturer : WEG
- Brand : WEG
- Category : Motor Control
- Item Subcategory : Contactor
- Family : CWM Series
- Type : CWM
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 500
Product Data
- Weight : 3
- Certification : UL
