Product Info
- Manufacturer:WEG
- Sub-Category:Contactor
Description
CWM180-22-30E21

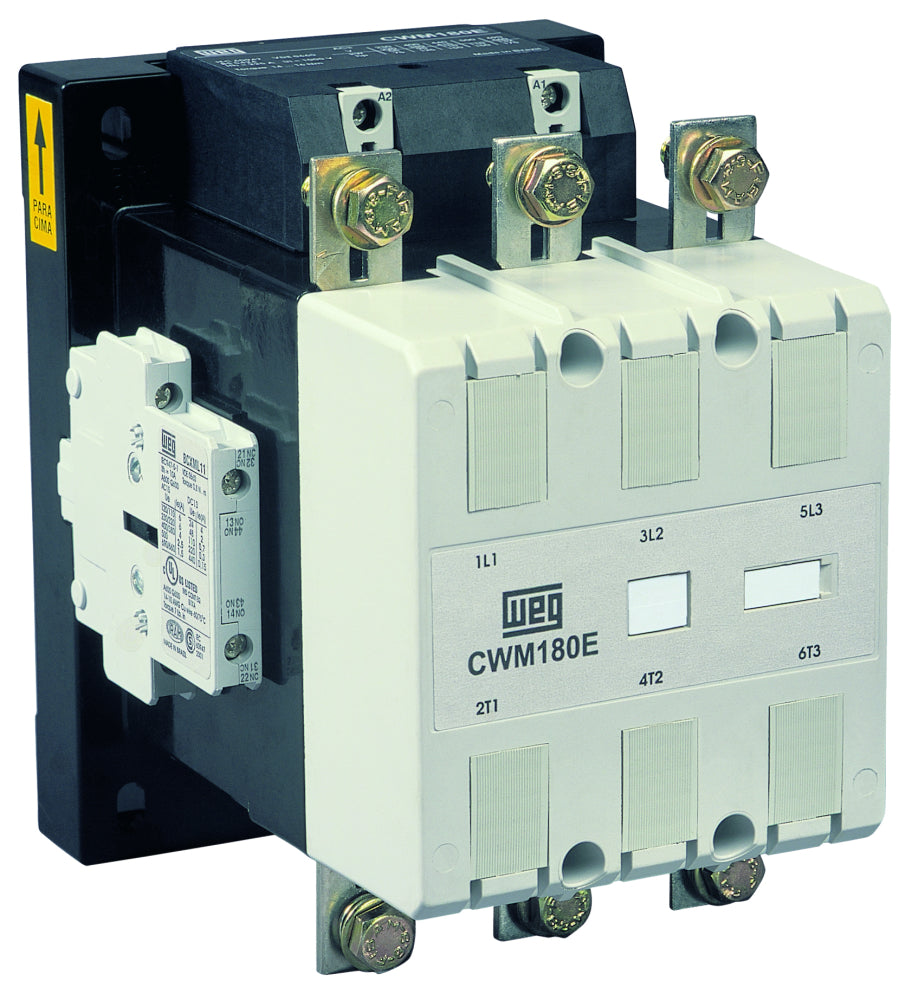

CWM180-22-30E21 is a 180 amp, 3 pole IEC rated contactor designed for industrial motor control applications with a 430-500V AC/DC coil voltage. This magnetic contactor features robust construction suitable for panel mounting or 35mm DIN rail installation up to the CWM105 Series, with front and side mounting auxiliary contact options. The unit is equipped with screw terminal connections and bolt-on terminals, providing flexible installation configurations for demanding industrial environments. Key Specifications
- Part Number: CWM180-22-30E21
- Manufacturer: WEG Electric Corp
- Rated Current: 180 Amp
- Number of Poles: 3 Pole
- Coil Voltage: 430-500V AC/DC
- Frequency: 50/60Hz
- Auxiliary Contacts: 2 NO 2 NC
- Terminal Connection: Screw
- Mounting Type: Frontal and Side
- Certifications: UL, IEC, CSA
- Protection Rating: IP20
- Horsepower Rating: 150 HP at 460V
Specifications
- Part Number: CWM180-22-30E21
- Manufacturer : WEG
- Brand : WEG
- Category : Motor Control
- Item Subcategory : Contactor
- Family : CWM Series
- Type : CWM
- Voltage : 600
- Amperage : 180
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 500
Product Data
- Weight : 3
- Certification : UL, IEC, CSA
