Product Info
- Manufacturer:WEG
- Sub-Category:Contactor
Description

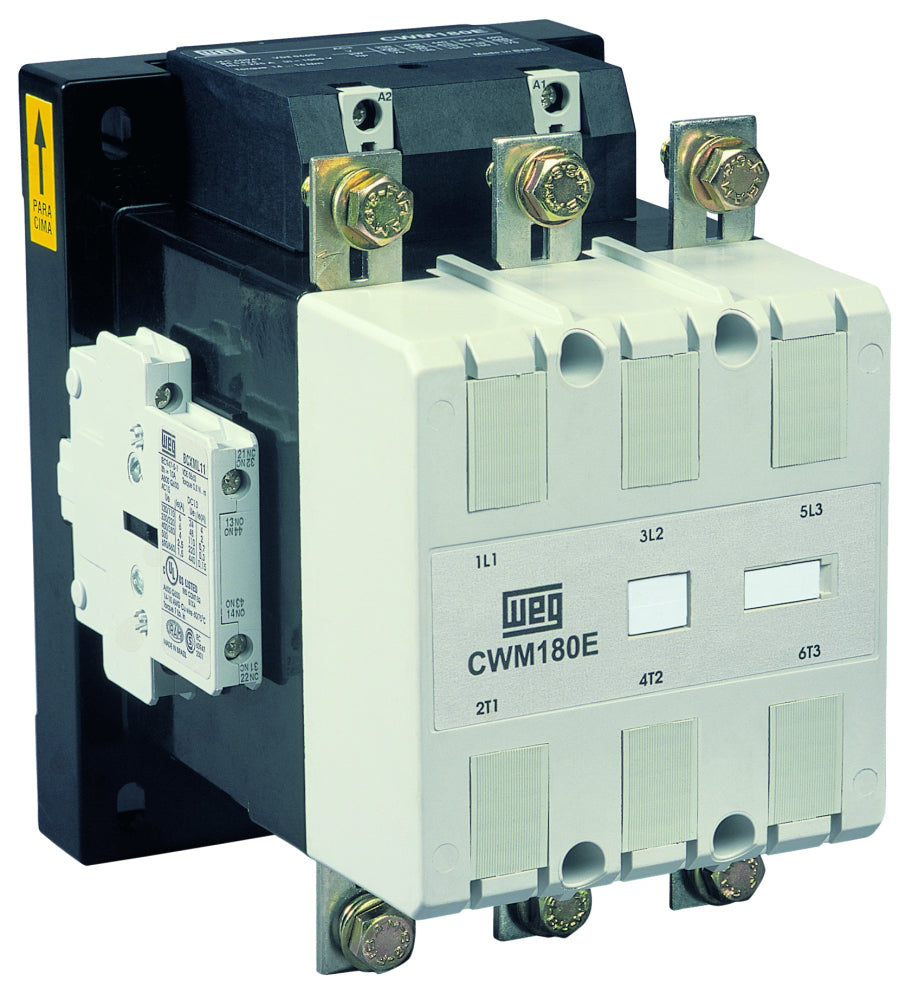

CWM180-22-30E13
CWM180-22-30E13 is a WEG motor control contactor designed for reliable switching of motors and other loads.
This contactor features a rated current of 180 amps with 3 normally open main contacts, suitable for 3-phase applications. It operates with a control coil voltage of 208-250V AC/DC at 50/60 Hz and uses screw terminals for secure wiring connections. The contactor complies with IEC and UL standards, supporting a rated utilization voltage of up to 600V (UL) and 1000V (IEC). It includes 2 normally open and 2 normally closed auxiliary contacts for control circuit flexibility.
- Rated current: 180 A
- Main contacts: 3 normally open (3 NO)
- Control voltage: 208-250 V AC/DC, 50/60 Hz
- Poles: 3
- Rated utilization voltage: 600 V UL / 1000 V IEC
- Terminal type: Screw terminals
- Auxiliary contacts: 2 NO / 2 NC
- Standards: UL 508, IEC 60947-4-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CWM180-22-30E13
- Manufacturer : WEG
- Brand : WEG
- Category : Motor Control
- Item Subcategory : Contactor
- Family : CWM Series
- Type : CWM
- Voltage : 600
- Amperage : 180
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 250
Product Data
- Weight : 3
