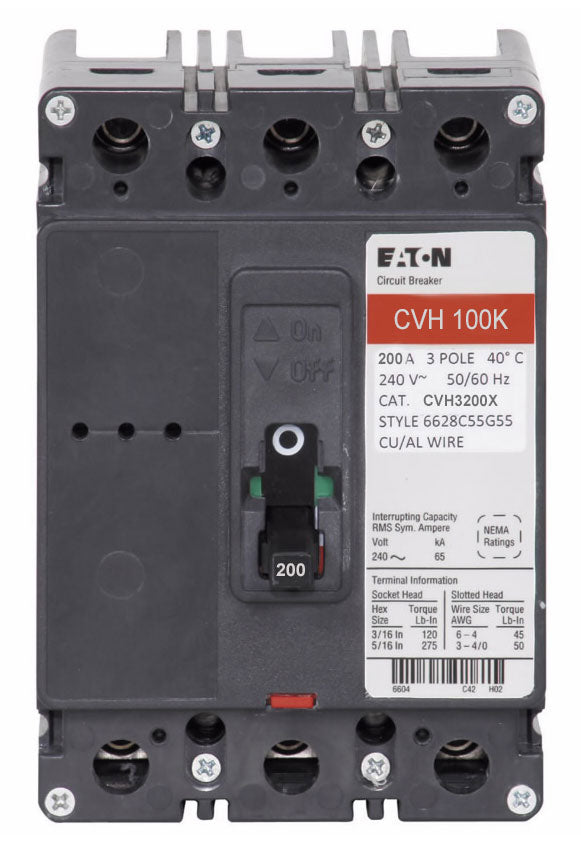

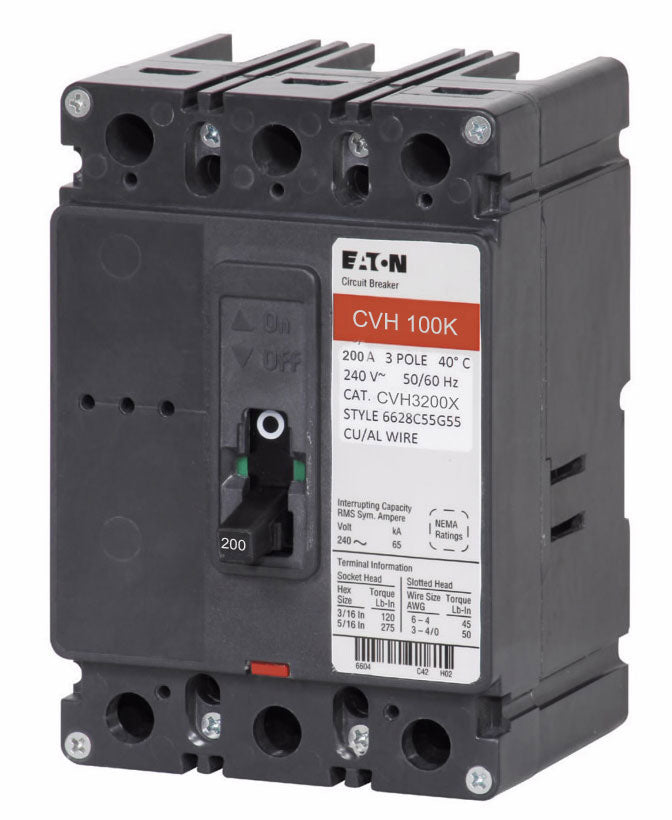

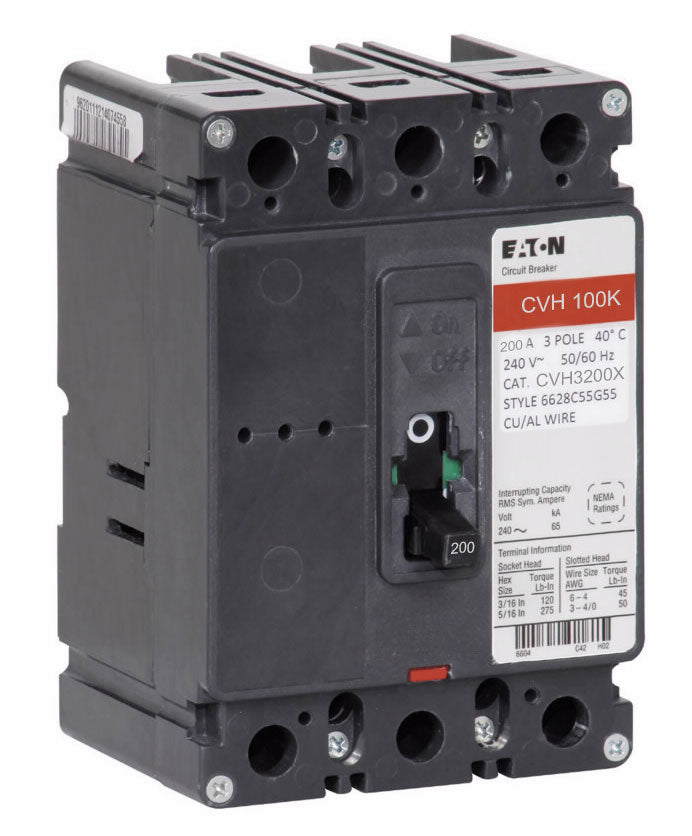

CVH3200X - Cutler Hammer 200A 240V 3 Pole Bolt-On Circuit Breaker 100kAIC

CVH3200X

CVH3200X is a 3 pole, 200A, 240V bolt-on molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Cutler Hammer CVH Series breaker features a 100kA interrupting capacity and thermal magnetic protection for dependable circuit safety. The CVH3200X is built with a bolt-on mounting design for secure installation and includes load side lug terminals for easy wiring. It is rated for 200A continuous current and 240VAC, making it suitable for a wide range of power distribution needs. The breaker provides long-time and instantaneous trip functions for comprehensive circuit protection.

• Part Number: CVH3200X
• Manufacturer: Cutler Hammer
• Series/Frame: CVH
• Poles: 3
• Amperage: 200A
• Voltage: 240VAC
• Mounting Type: Bolt-On
• Interrupt Rating: 100kAIC @ 240V
• Protection Type: Thermal Magnetic
• Terminal Type: Load Side Lug
• Trip Unit: LI (Long-Time and Instantaneous)
• Standards: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CVH3200X
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CVH Series
• Type : CVH
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685705149
• GTIN : 00786685705149
• Country of Origin : Dominican Republic
• Dimensions : 7.7 in x 4.9 in x 4.9 in (Length/Depth x Height x Width)
• Weight : 4.25
• Certification : UL 489,CSA Std. C22.2 No. 5
• Wire Size : #6 to 4/0 AWG CU/AL
