CV3200X - Cutler Hammer 200A 3-Pole Molded Case Circuit Breaker, 240V, 65kAIC, Type CV, Bolt-On, Thermal/Magnetic Trip

CV3200X

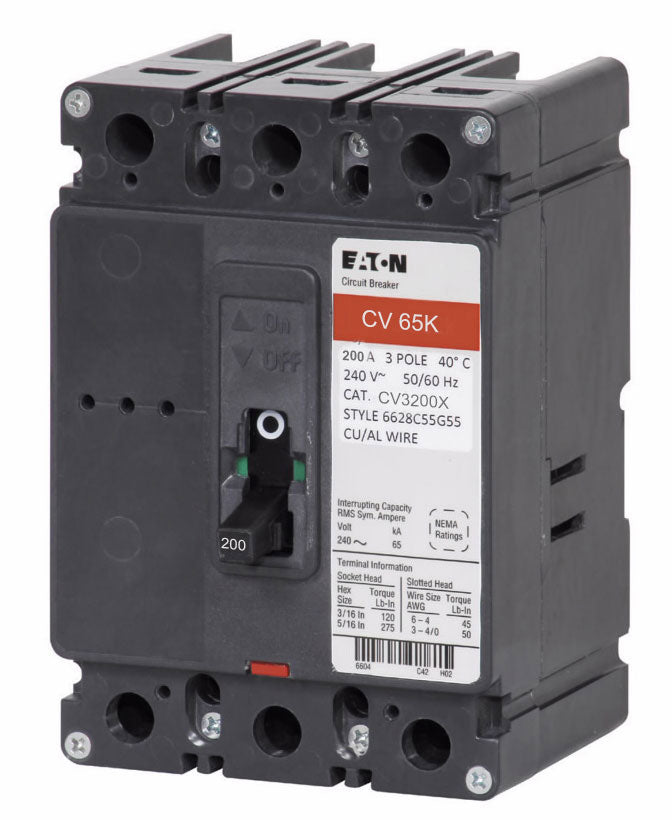

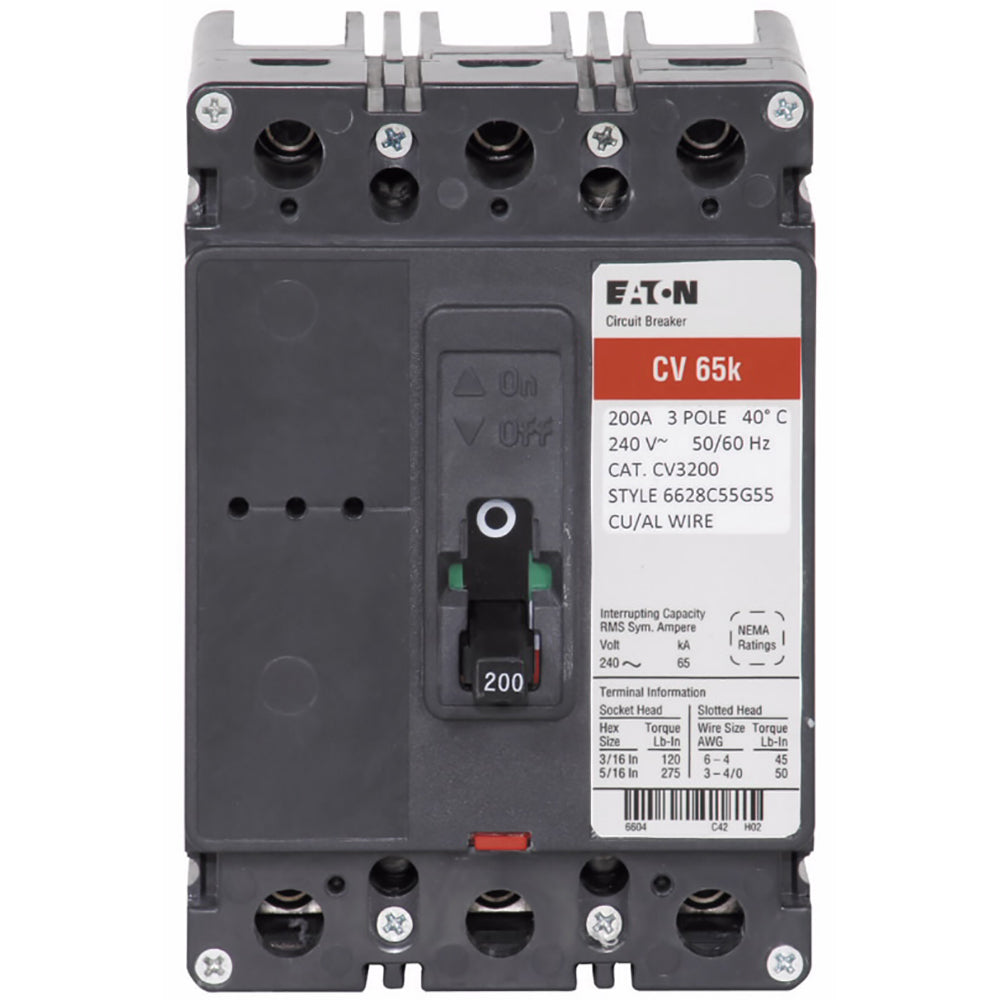

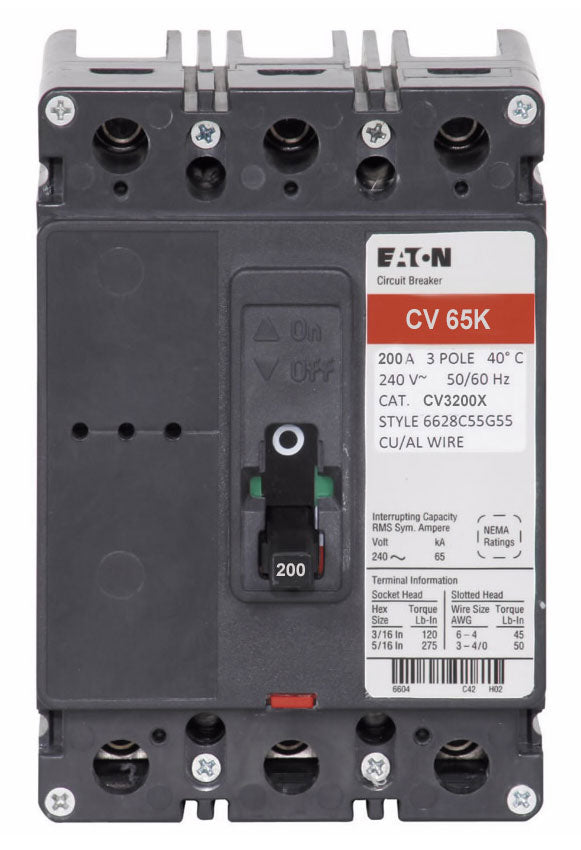

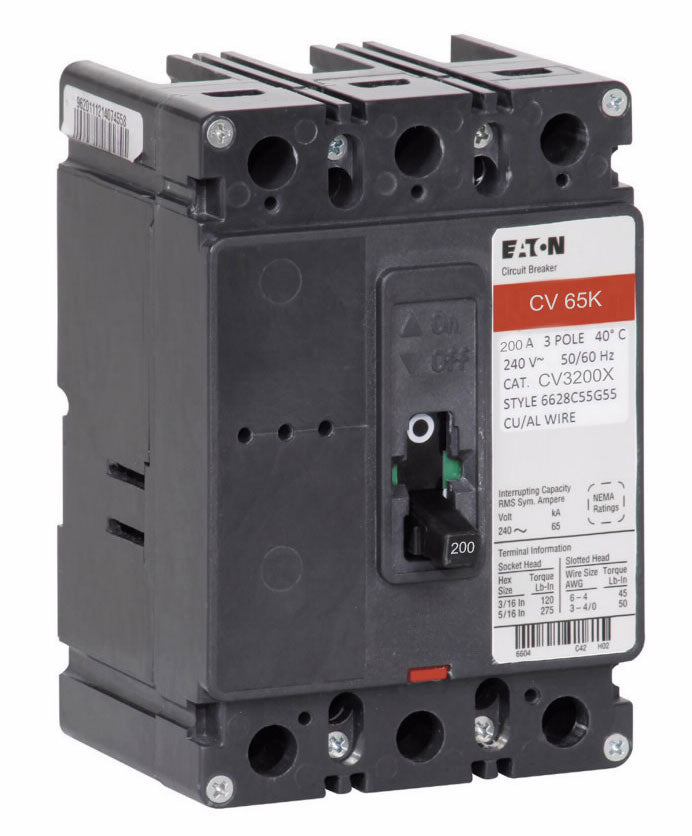

CV3200X is a Cutler Hammer (Eaton) molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This three-pole, bolt-on breaker features a thermal/magnetic trip unit, 200A amperage rating, and a maximum voltage of 240VAC. It is part of the Type CV series and offers a high interrupting capacity of 65 kAIC, making it suitable for demanding electrical environments. The breaker accepts #6-4/0 AWG copper or aluminum conductors and is rated for a maximum load of #4/0 kcmil.

Key Specifications

• Part Number: CV3200X
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 200A
• Voltage: 120/240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kAIC
• Series/Frame: Type CV
• Trip Unit: Thermal/Magnetic
• Wire Size: #6-4/0 AWG Cu/Al
• Max Load: #4/0 kcmil
• Certifications: Standard interrupting capacity, suitable for commercial/industrial use

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CV3200X
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CV Series
• Type : CV
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668570470
• GTIN : 00786685704708
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.4
• Certification : UL 489,CSA Std. C22.2 No. 5
• Wire Size : 6 to 4/0 AWG
