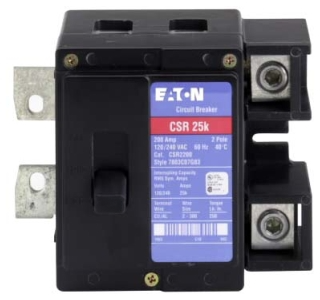

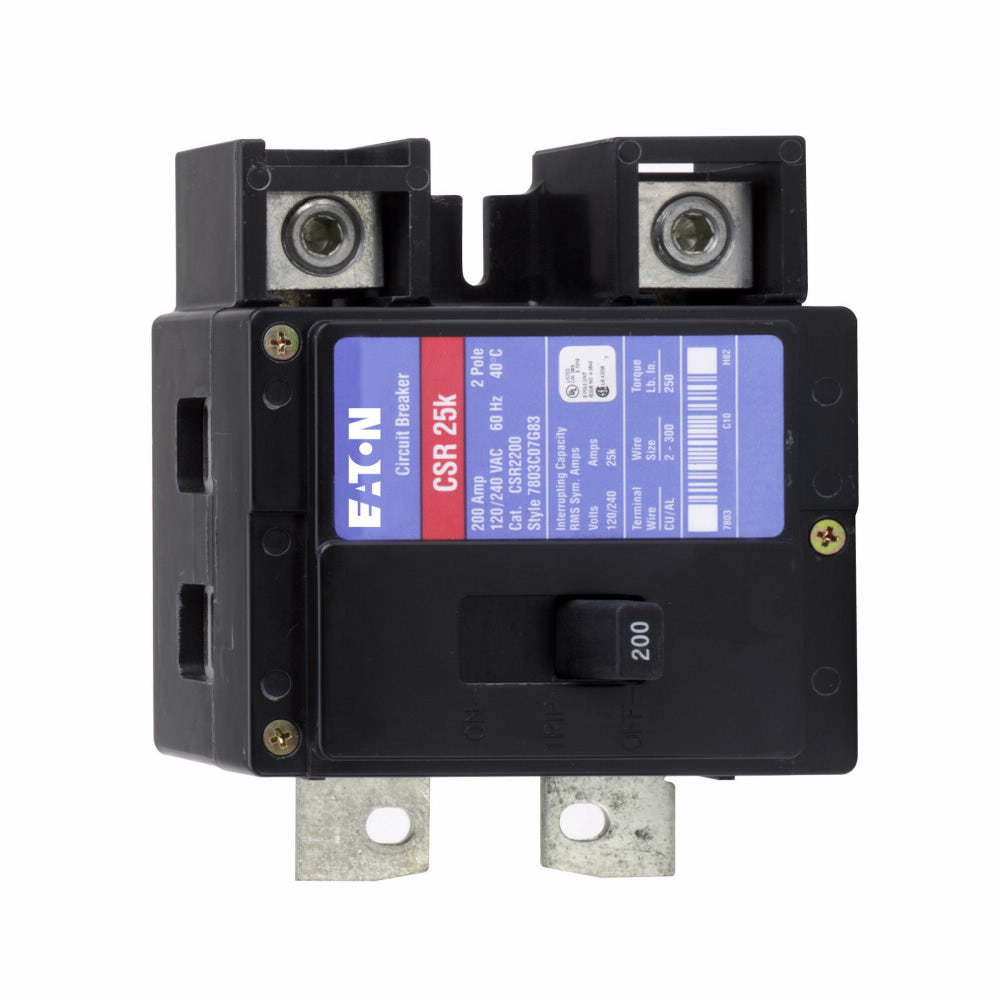

CSR2200N - Cutler Hammer 200A 240V 2-Pole Thermal Magnetic Circuit Breaker Plug-On CSR Frame

CSR2200N

CSR2200N is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 200 amps and 120/240 volts AC with a plug-on mounting type.This Eaton Cutler Hammer CSR2200N circuit breaker features a 25 kA interrupting rating at 240V, long time and instantaneous trip functions, and is designed for use in Type ECC unit enclosures. It supports wire sizes from #2 AWG to 300 kcmil and meets UL 489 certification standards.

• Amperage: 200 A
• Voltage: 120/240 V AC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 25 kAIC at 240 V
• Frame Type: CSR
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Wire Size Range: #2 AWG to 300 kcmil
• Certifications: UL 489
• Phase: Single-phase
• For Use With: Type ECC Unit Enclosures
• Dimensions (LxWxH): 5.3 x 4.2 x 3.52 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CSR2200N
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CSR Series
• Type : CSR
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 78211309846
• GTIN : 00782113098463
• Country of Origin : United States
• Dimensions : 5.3 in x 3.52 in x 4.2 in (Length/Depth x Height x Width)
• Weight : 2.5
• Certification : UL 489
• Wire Size : AWG 2 to 300KCmil
