Product Info
- Manufacturer:Hubbell
- Sub-Category:California Standard locking device
Description
CS8465C

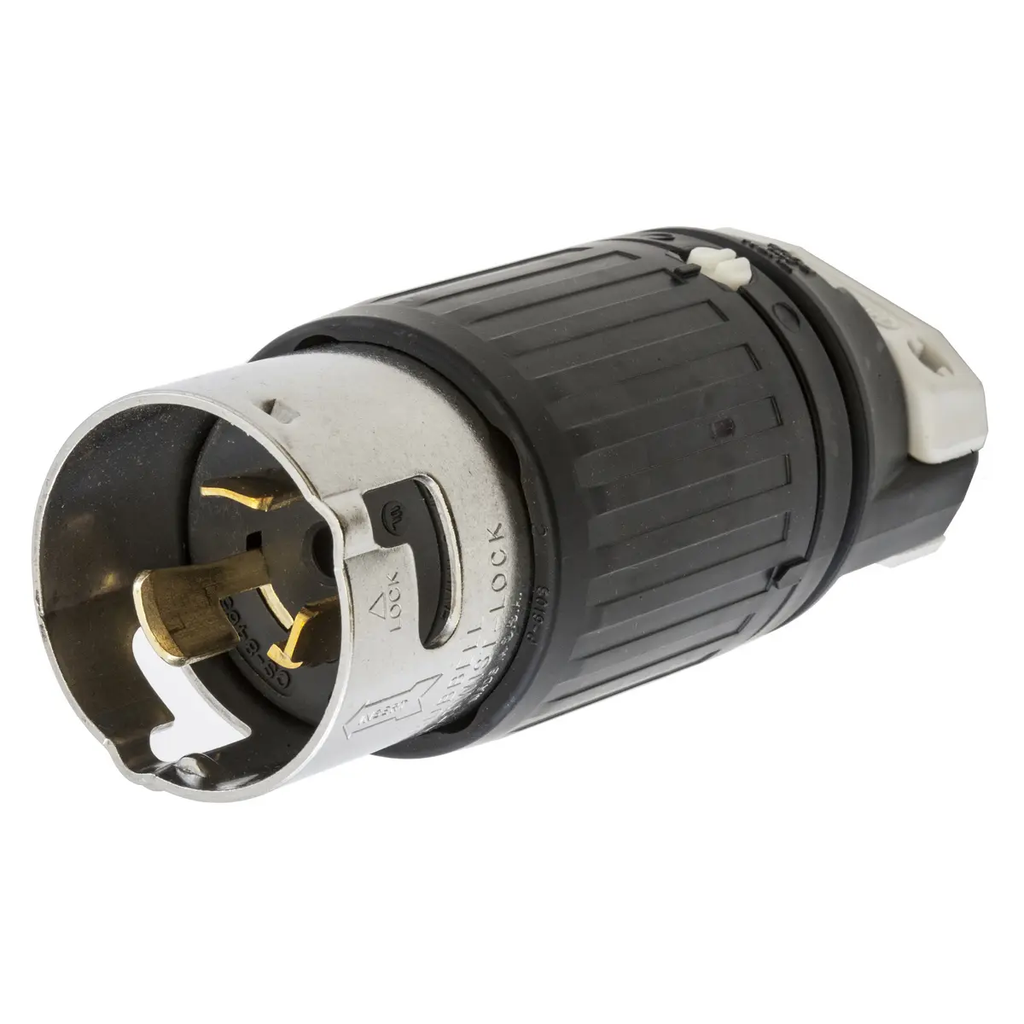

CS8465C is a Hubbell 50A 480V AC 2-Pole 3-Wire Twist-Lock industrial male plug with a non-NEMA screw terminal design, built for heavy-duty applications and impact resistance. This locking plug features a super-tough nylon housing, secure offset cord grip, and is suitable for single-phase power distribution in demanding environments. The device is designed for cord-mounted installation and offers reliable grounding and strain relief for portable cables. Hubbell's CS8465C is engineered for durability and safety, with a robust construction that prevents contact distortion and ensures compatibility with matching Twist-Lock receptacles. The plug is rated for continuous operation at 75°C and can withstand temperatures as low as -40°C. It features pressure terminal screws for secure wire connections and is suitable for use with conductors ranging from #10 AWG to #6 AWG. The device is UL and CSA certified, and complies with RoHS standards.
- Part Number: CS8465C
- Manufacturer: Hubbell
- Amperage Rating: 50 A
- Voltage Rating: 480 VAC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Cord Mounted
- Terminal Type: Screw Terminal
- Conductor Size: #10 AWG to #6 AWG
- Cord Diameter Range: 0.830" - 1.250"
- Material: Nylon
- Certifications: UL, CSA, RoHS
Additional Information
High-current locking plug/connector
Specifications
- Part Number: CS8465C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : California Standard locking device
- Family : CS Series
- Voltage : 480 480
Product Data
- UPC : 783585829166
- GTIN : 00783585829166
- Country of Origin : Mexico
- Dimensions : 6.37 in L x 2.56 in W x 2.56 in H 6.37 x 2.56 x 2.56 6.37 x 2.56 x 2.56 in
- Weight : 1.25 lb
- Certification : CSA C22.2 No. 42 File E152105, NOM 057 Certified, RoHS Compliant, UL 498 File E13399
