CS8364C - Hubbell 50A 250VAC 3-Pole 4-Wire Female Twist-Lock Connector, Insulgrip, Non-NEMA

CS8364C

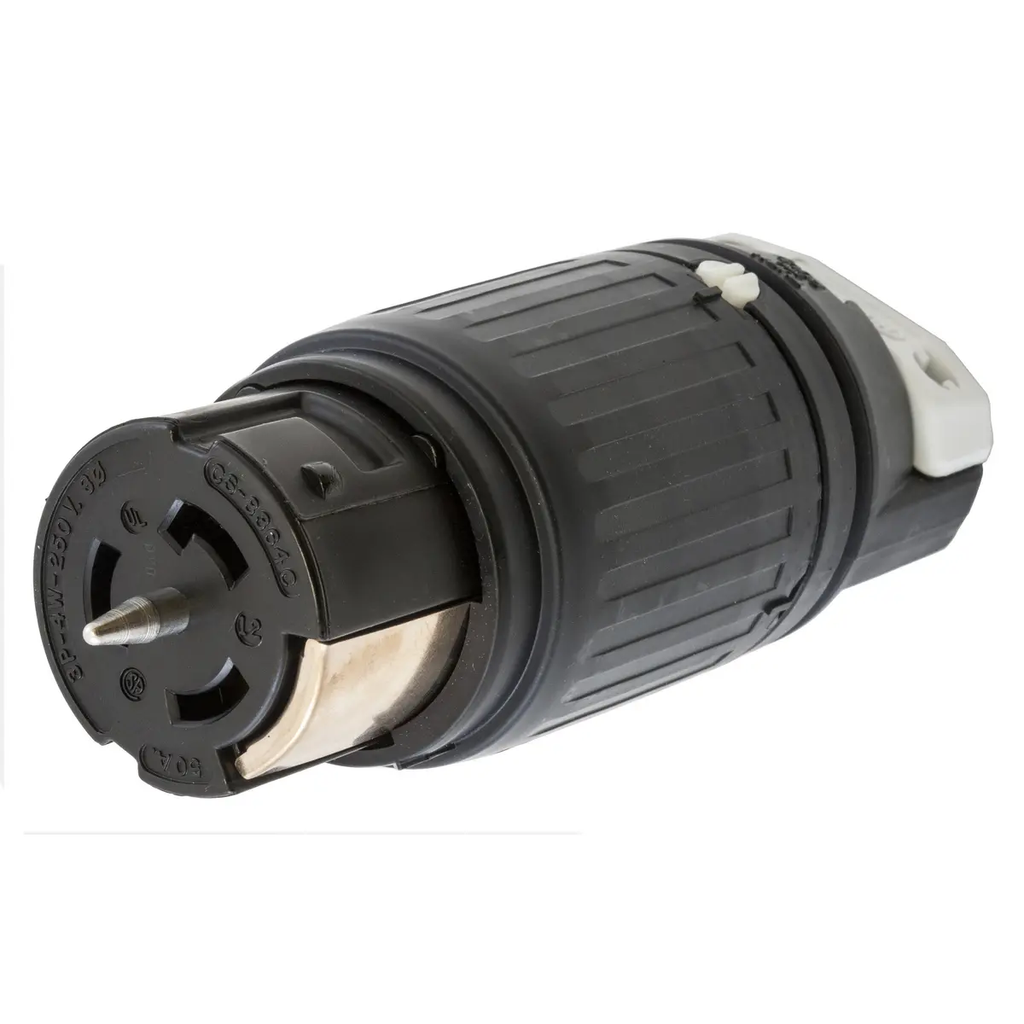

CS8364C is a Hubbell 50 Amp, 250 Volt AC, 3-Pole 4-Wire Female Twist-Lock Connector designed for heavy-duty industrial applications.This Insulgrip® connector features a super-tough nylon body with a thermoplastic polyester interior for heat resistance and impact strength. It supports 3-phase delta wiring with a 50A amperage rating and 250VAC voltage rating. The device includes pressure screw terminals compatible with #10 to #6 AWG stranded copper wire and a heavy-duty two-piece external cord clamp for maximum strain relief. Certified to UL 498 and CSA C22.2 No.42 standards, it withstands dielectric voltage of 2,000V minimum and operates in temperatures from -40°C to 75°C.

Key Specifications
• Amperage Rating: 50 A
• Voltage Rating: 250 VAC, 3-Phase Delta
• Poles: 3-Pole, 4-Wire Grounding
• Connector Type: Female Twist-Lock, Insulgrip®
• Mounting Type: Cord
• Terminal Type: Pressure Screw
• Cord Range: 0.830" - 1.250"
• Wire Size: #10 AWG to #6 AWG
• Material: Nylon Body with Thermoplastic Polyester Interior
• Certifications: UL 498, CSA C22.2 No.42
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C to 75°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

High-current locking plug/connector




Specifications

• Part Number: CS8364C
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : California Standard locking device
• Voltage : 250 250



Product Data

• UPC : 783585829104
• GTIN : 00783585829104
• Country of Origin : Mexico
• Dimensions : 6.34 in L x 2.59 in W 6.5 x 2.56 x 2.5 in
• Weight : 1.1 lb
• Certification : CSA C22.2 No. 42 File E152105, NOM 057 Certified, RoHS Compliant, UL 498 File E13399
