Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
CS8269

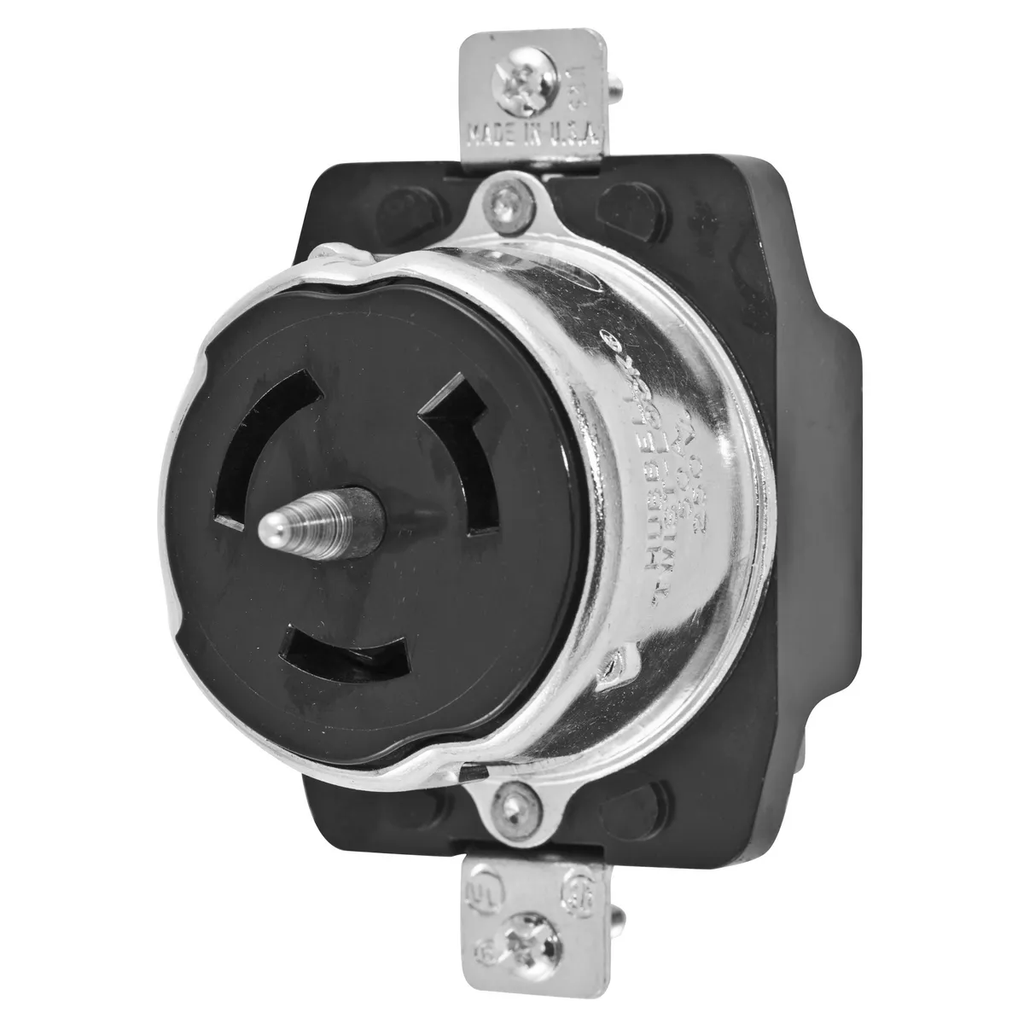

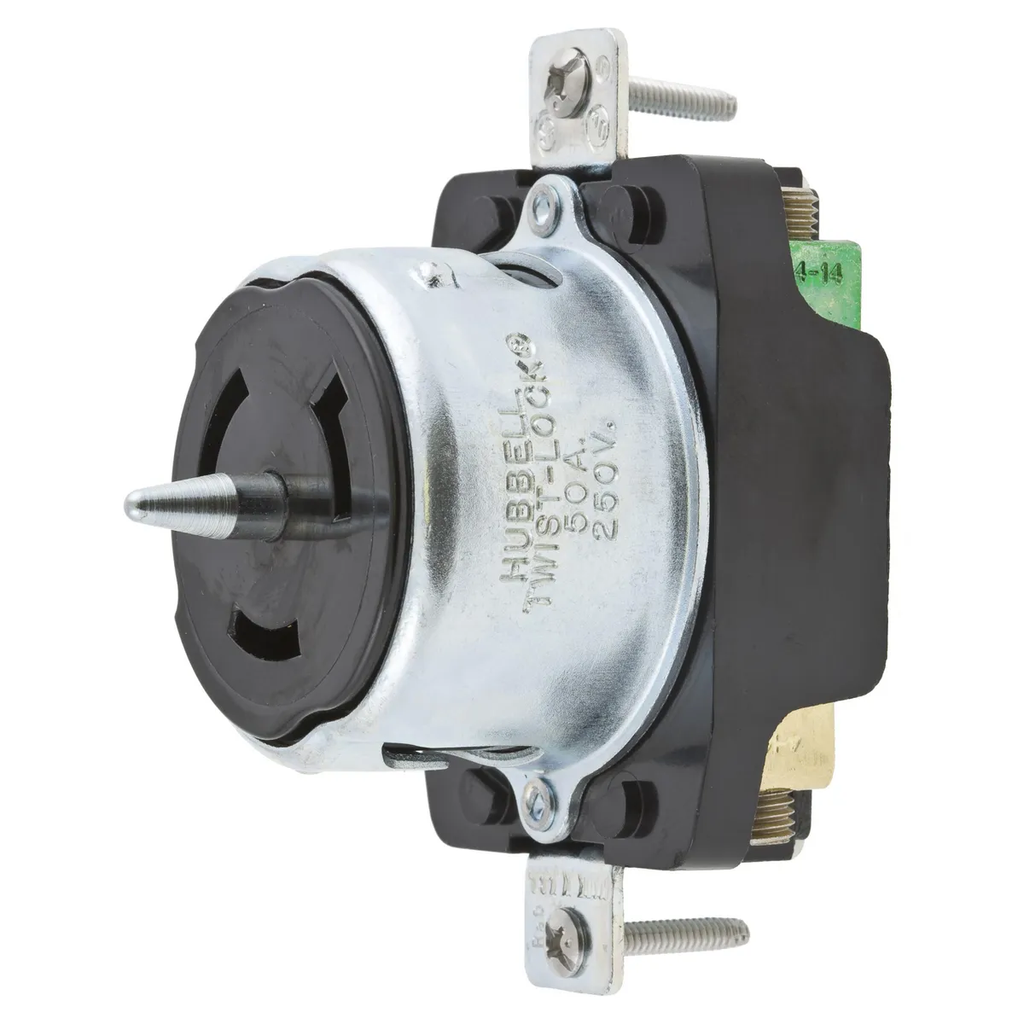

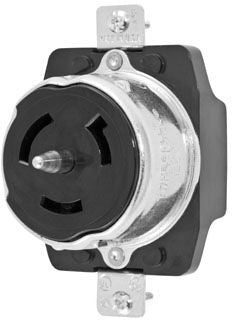

CS8269 is a Hubbell 50 Amp, 250 Volt, 2-Pole 3-Wire Twist-Lock® industrial receptacle designed for heavy-duty applications.CS8269 features a phenolic body and face with screw mounting hardware, providing excellent impact resistance and durability. It supports #10 AWG to #6 AWG wire sizes with screw terminals and is certified to UL 498 and CSA C22.2 No.42 standards. Rated for single-phase use, it withstands a dielectric voltage of 2,000V minimum and operates reliably from -40°C to 75°C continuous without impact. The device is non-NEMA locking type with offset cord grip jaws for superior strain relief.
- Key Specifications
- Amperage Rating: 50 A
- Voltage Rating: 250 V AC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Material: Phenolic Body and Face
- Mounting Type: Screw Mount
- Connectivity: Screw Terminals
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL 498 Listed, CSA C22.2 No.42 Certified
- Wire Size Accommodation: #10 AWG to #6 AWG
- Phase: Single Phase
Specifications
- Part Number: CS8269
- Manufacturer : Hubbell
- Brand : Legrand-Pass & Seymour
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Family : CS Series
- Voltage : 250 250
Product Data
- UPC : 785007826906
- GTIN : 00078477326084
- Country of Origin : Mexico
- Dimensions : 3.3 in Dia x 3.28 in H x 1.08 in W x 1.98 in D
- Weight : 0.8 lb
- Certification : cULus
