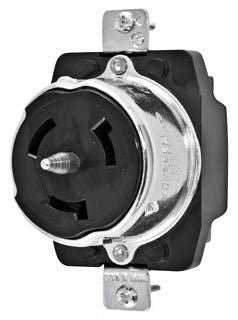

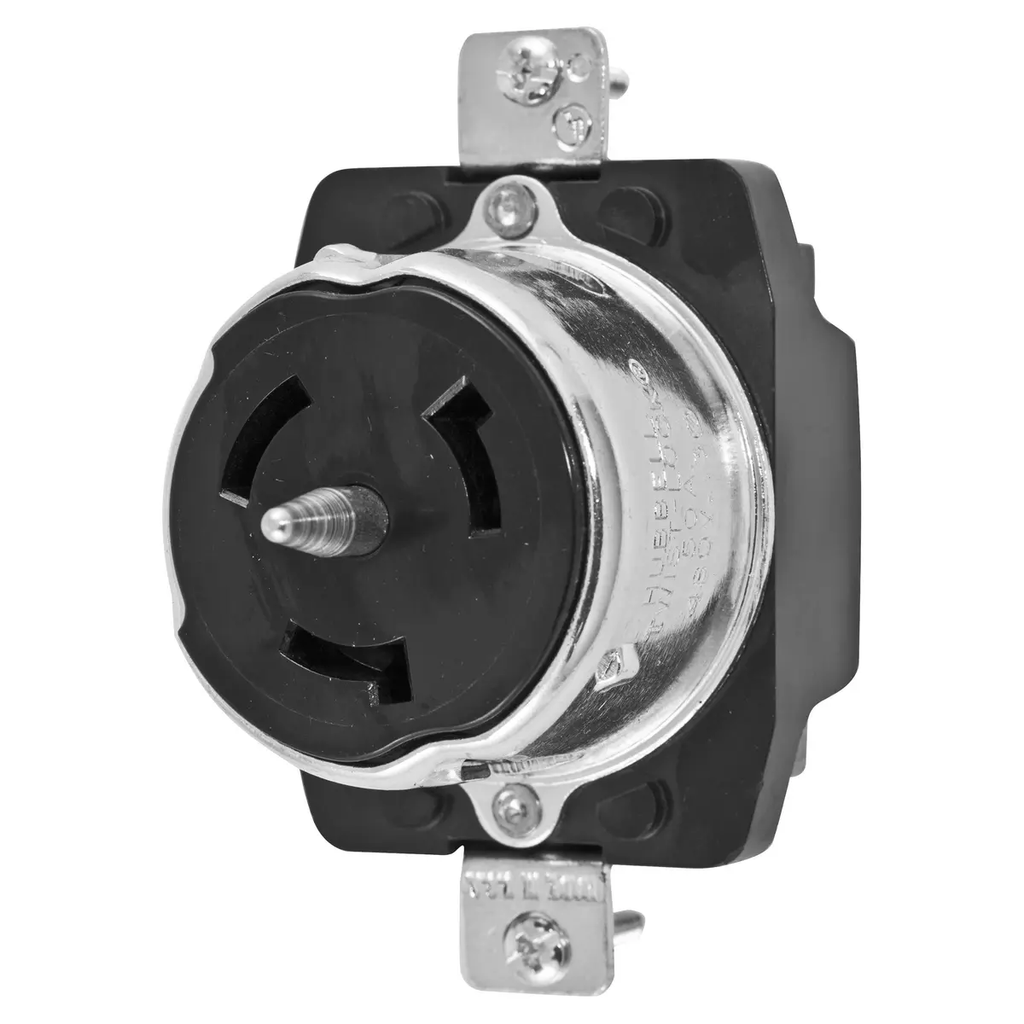

CS8169 - Hubbell 50 Amp 480 VAC 3-Phase 3-Pole 4-Wire Locking Receptacle Phenolic Screw Mount

CS8169

CS8169 is a 50 Amp, 480 VAC, 3-Phase, 3-Pole, 4-Wire locking receptacle from Hubbell designed for heavy-duty industrial applications.This receptacle features a durable phenolic body with screw mounting hardware, rated for 50 amps and 480 volts AC in a 3-phase delta configuration. It includes screw terminal connectivity and supports wire sizes from #10 AWG to #6 AWG. The device withstands a minimum dielectric strength of 2000V and operates reliably in temperatures from -40°C to 75°C continuous. Its rigid construction minimizes contact distortion and provides excellent strain relief with offset gripping jaws. The product is UL 498 and CSA C22.2 certified and BABA compliant.

Key Specifications
• Amperage: 50 A
• Voltage: 480 VAC 3-Phase Delta
• Poles: 3-Pole
• Wires: 4-Wire
• Material: Phenolic
• Mounting Type: Screw Mount
• Connectivity: Screw Terminals
• Dielectric Strength: 2000 V minimum
• Operating Temperature: -40°C to 75°C continuous
• Certifications: UL 498, CSA C22.2, BABA Compliant
• Color: Black
• Dimensions: 2.69 x 2.11 x 2.36 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CS8169
• Manufacturer : Hubbell
• Brand : LEVITON
• Category : Wiring Devices
• Item Subcategory : Plugs Recep
• Voltage : 480 480

Product Data

• UPC : 78477326367
• GTIN : 00783585828503
• Country of Origin : Mexico
• Dimensions : 3.69 in H x 2.13 in W x 1.14 in D
• Weight : 5.19
• Certification : cULus
