Product Info
- Manufacturer:Hubbell
- Sub-Category:California Standard locking device
Description
CS6375

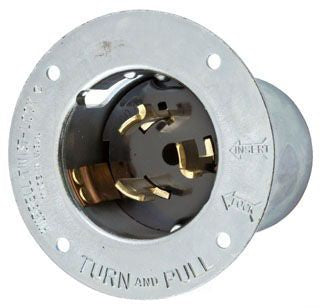

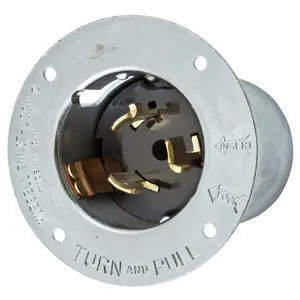

CS6375 is a Hubbell 50 Amp, 125/250 VAC, 3-Pole 4-Wire Twist-Lock® Flanged Inlet with screw mounting designed for heavy-duty industrial applications.CS6375 features a steel zinc-plated housing with pressure terminal screws for secure wiring. It supports #10 to #6 AWG wire sizes and operates reliably from -40°C to 75°C. Certified to CSA C22.2 No.42 and UL 498, it withstands dielectric strength of 2,000V minimum. The device offers excellent strain relief with offset gripping jaws and resists contact distortion for durable, safe connections.
- Key Specifications
- Amperage: 50 A
- Voltage: 125/250 VAC
- Poles: 3
- Wires: 4 (including grounding)
- Mounting Type: Screw Mount
- Material: Steel, Zinc Plated
- Terminal Type: Pressure Terminal Screws
- Operating Temperature: -40°C to 75°C
- Wire Size Range: #10 AWG to #6 AWG
- Certifications: CSA C22.2 No.42, UL 498 Listed
- Dielectric Strength: 2,000V minimum
- Dimensions: 2.17 x 3.50 x 2.62 inches
Additional Information
High-current locking plug/connector
Specifications
- Part Number: CS6375
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : California Standard locking device
- Family : CS Series
- Voltage : 125/250 125/250
Product Data
- UPC : 783585828206
- GTIN : 00078477326312
- Country of Origin : Mexico
- Dimensions : 2.17 x 3.5 x 2.62 in 3-1/2 in Dia x 2-5/8 in L
- Weight : 0.4
- Certification : cULus
