Product Info
- Manufacturer:Leviton
- Sub-Category:Plugs Recep
Description
CS6369

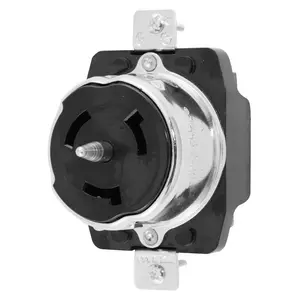

CS6369 is a Leviton 50 Amp, 125/250 Volt, 3-Pole 4-Wire Non-NEMA locking receptacle designed for industrial-grade applications.This locking device features a rugged impact-modified nylon body and face, rated for 2000V dielectric voltage withstand per UL 498 standards. It supports #10 to #6 AWG wire sizes with screw terminal connections and is certified for current interrupting at full rated current. The device offers a maximum 30°C temperature rise at full load and operates reliably from -40°C to 75°C. It includes a nickel-plated steel shroud and stainless steel mounting hardware for durability. The receptacle is California-style, black and white colored, and UL, CSA, NOM, and RoHS compliant.
- Key Specifications
- Amperage: 50 Amps
- Voltage: 125/250 Volts AC
- Poles: 3
- Wires: 4 (including ground)
- Mounting Type: Flush Mount
- Interrupt Rating: Certified for full rated current interrupting
- Series/Frame: Non-NEMA, California Style
- Material: Impact Modified Nylon Body and Face
- Terminal Accommodation: #10 to #6 AWG
- Dielectric Voltage Withstand: 2000V minimum
- Operating Temperature: -40°C to 75°C
- Certifications: UL 498, CSA C22.2 No. 42, NOM, RoHS Compliant
- Part Number: CS6369
- Manufacturer : Leviton
- Brand : LEVITON
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125/250
- UPC : 78477326282
- GTIN : 00783585828107
- Country of Origin : Mexico
- Dimensions : 3.69 in H x 2.13 in W x 1.14 in D
- Weight : 0.8 lb
- Certification : cULus
