Product Info
- Manufacturer:General Electric
- Sub-Category:Contactor
Description
CR463LB0AJA10A0

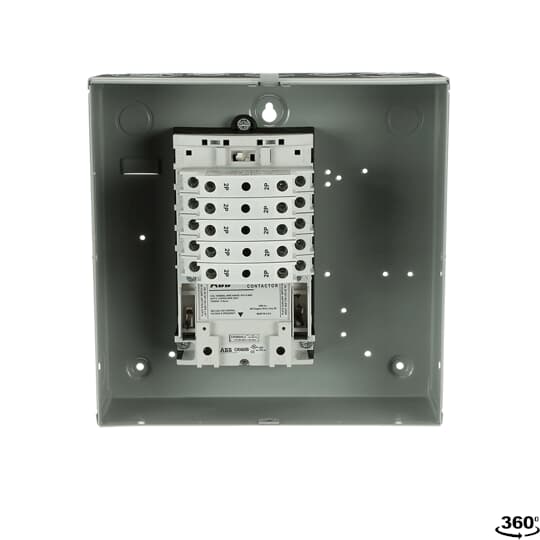

CR463LB0AJA10A0 is a General Electric CR460 Series electrically held lighting contactor designed for reliable motor control applications. This contactor features a 30A rated contact, 15A motor rating, and A600 pilot duty rating, making it suitable for a wide range of industrial and commercial uses.Engineered for durability and performance, the CR463LB0AJA10A0 offers easy-to-read rating labels and auxiliary contacts rated A600. The unit provides contact position indication and is assembled in standard forms for straightforward installation and maintenance.
- 30A rated contact
- 15A motor rated
- A600 pilot duty rated
- 600V maximum voltage
- 3-pole configuration
- 110V coil voltage
- Electrically held operation
- CR460 Series frame
- Standard mounting type
- Contact position indication
- Auxiliary contacts included
- Easy-to-read rating label
Additional Information
This Electrically Held includes a 110 VAC coil.
Specifications
- Part Number: CR463LB0AJA10A0
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : CR460 Series
- Type : CR463
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 10
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
- Aux Contacts : 10 NO
- Coil Voltage Maximum : 120
- Full Load Amps : 30 A
- Coil Voltage Minimum : 110
- Frequency : 50 Hz
Product Data
- UPC : 783166620878
- GTIN : 00783166620878
- Country of Origin : United States
- Dimensions : 10.0 in x 10.0 in
- Weight : 15
- Certification : CE, cUL, E1811 Vol 19, UL 508
