Product Info
- Manufacturer:General Electric
- Sub-Category:Contactor
Description
CR463L20AJA10A0

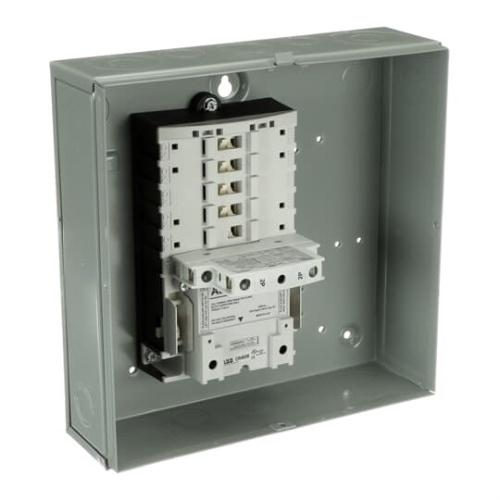

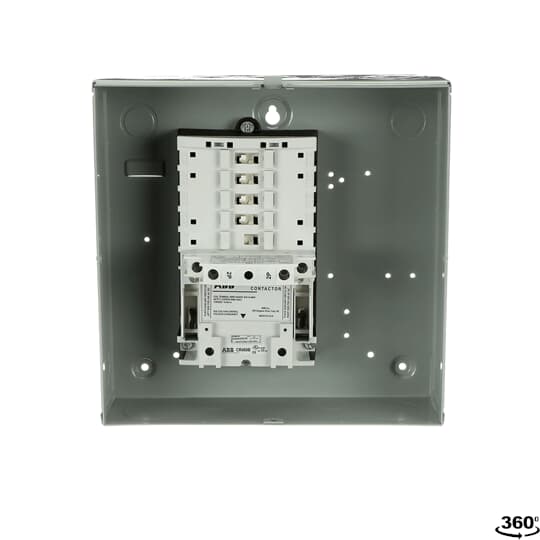

CR463L20AJA10A0 is a General Electric 30 Amp, 600 Volt, 2 Pole electrically held lighting contactor designed for reliable motor control applications.This contactor features a coil voltage of 110-120 VAC and is part of the CR460 series. It supports standard assembled forms with contact position indication, showing when the contact is closed. The device is suitable for lighting and motor control circuits with a 30 Amp current rating and 2 poles, providing robust performance in industrial environments.
- Amperage: 30 Amps
- Voltage Rating: 600 Volts
- Poles: 2
- Coil Voltage: 110-120 VAC
- Type: Electrically Held Lighting Contactor
- Series: CR460
- Contact Position Indication: Yes
- Standard Assembled Forms
- Application: Motor Control and Lighting
- Interrupt Rating: Pilot Duty A600
Additional Information
This Electrically Held includes a 110 VAC coil.
Specifications
- Part Number: CR463L20AJA10A0
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : CR460 Series
- Type : CR463
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 120
- Full Load Amps : 30 A
- Coil Voltage Minimum : 110
- Frequency : 50 Hz
Product Data
- UPC : 783166620779
- GTIN : 00783166620779
- Country of Origin : United States
- Dimensions : 10.0 in x 10.0 in
- Weight : 15
- Certification : CE, cUL, E1811 Vol 19, UL 508
