Product Info
- Manufacturer:General Electric
- Sub-Category:Motor Starter
Description
CR306C004

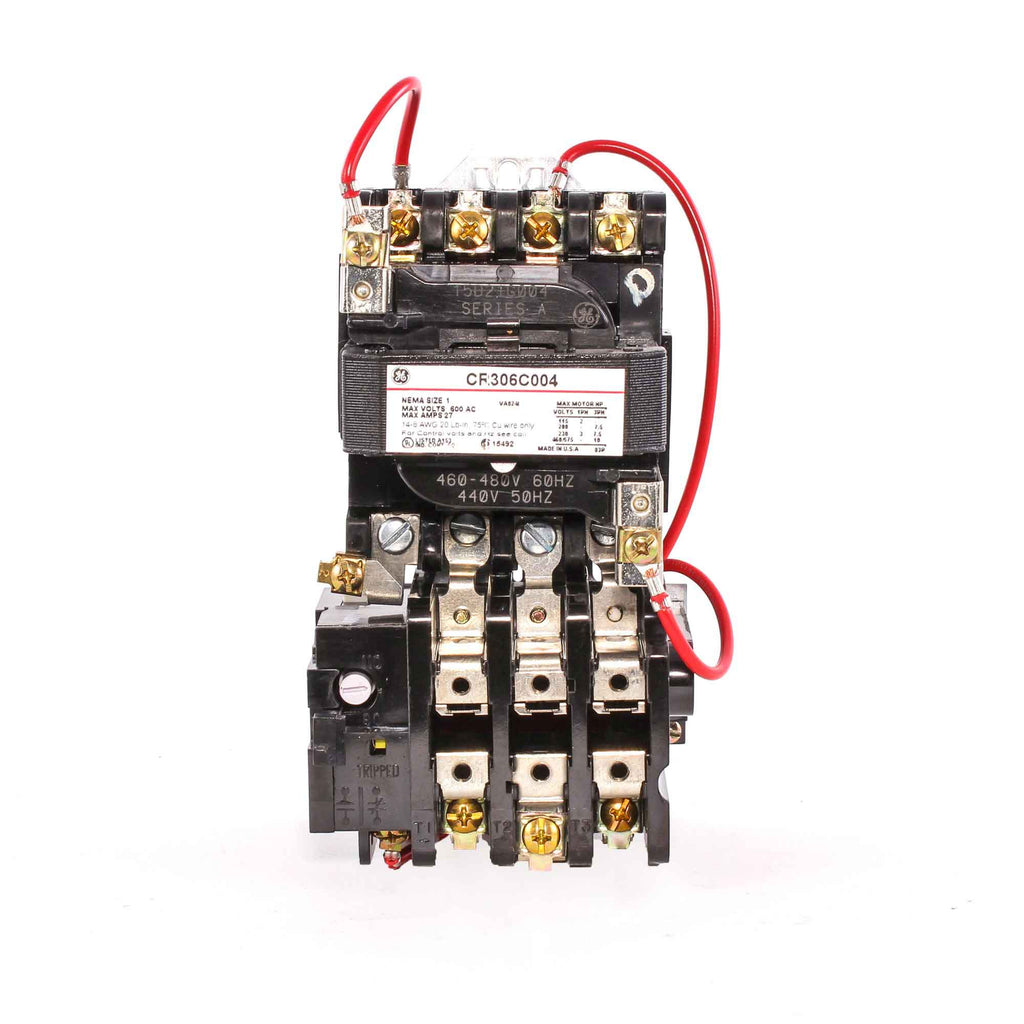

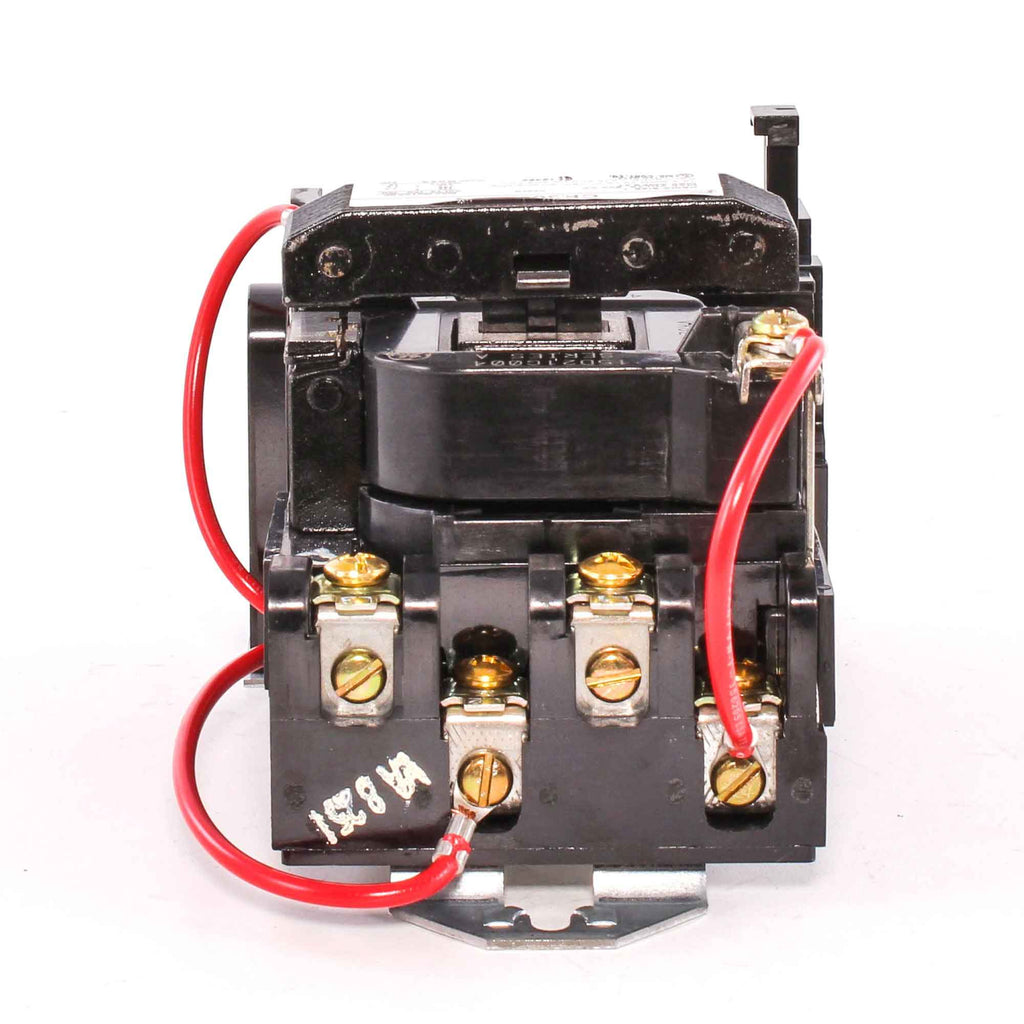

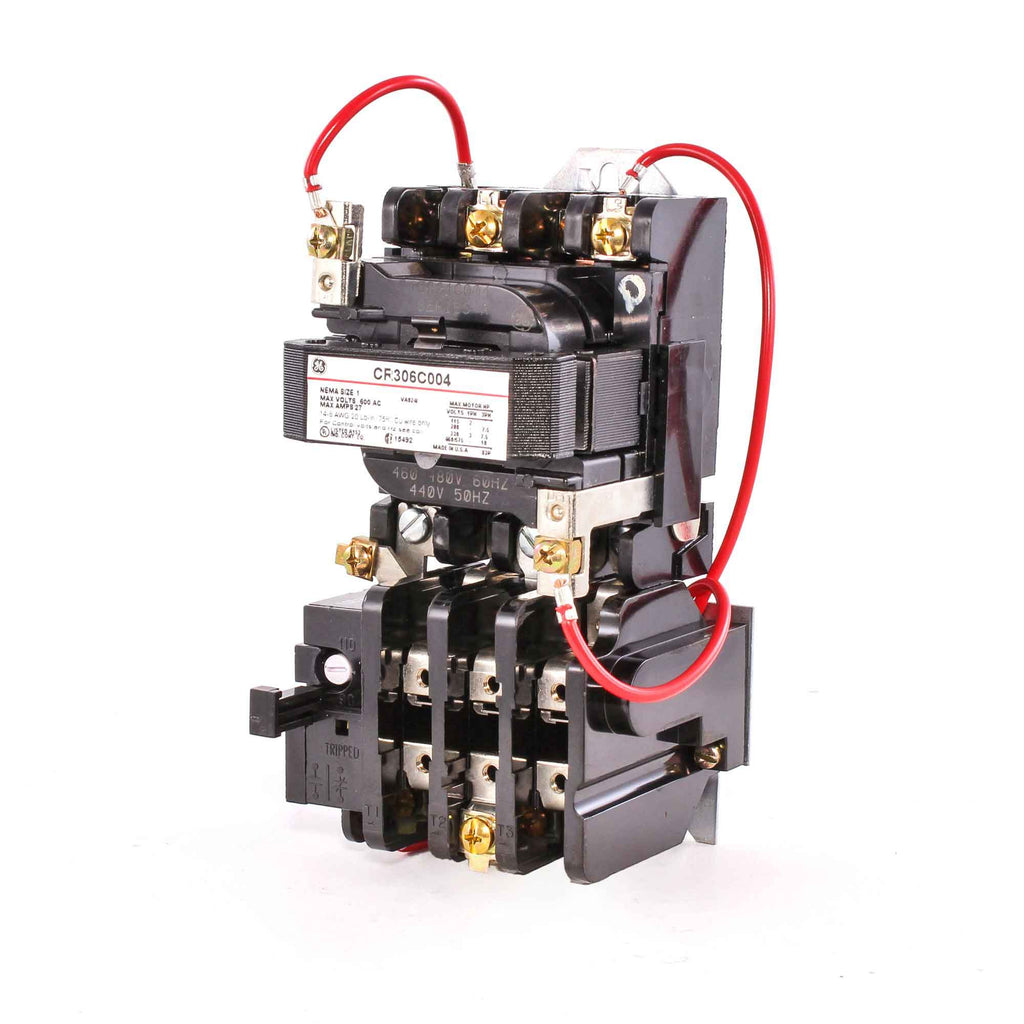

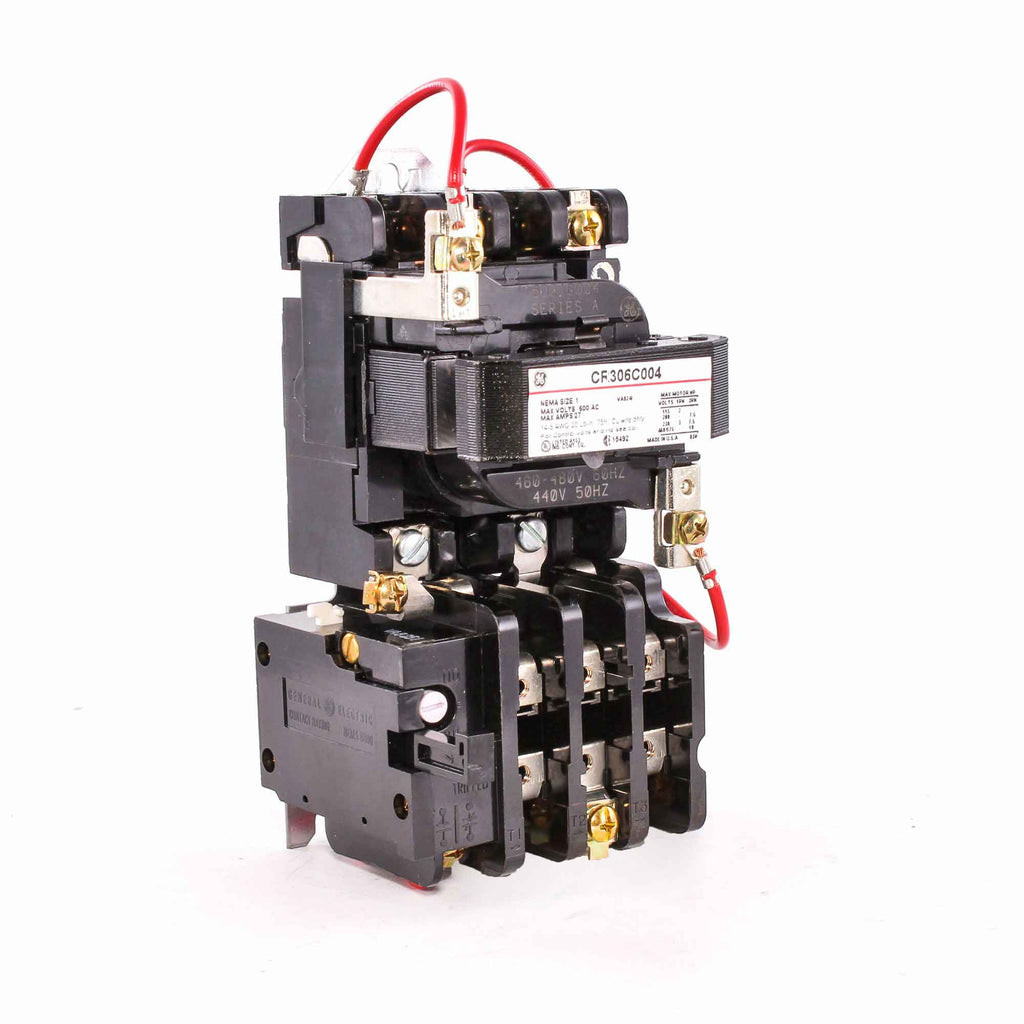

CR306C004 is a General Electric 300-Line full voltage magnetic motor starter designed for CR306 motor control systems. This NEMA Size 1 open-type starter features a 3-pole, 3-phase configuration with an encapsulated coil and 3-leg overload relay protection for comprehensive phase protection. The unit is rated for 27 amperes at 600V maximum system voltage with a 460V-480V 50/60Hz AC coil, delivering 10 horsepower at 460-480V and 7.5 horsepower at 230V. Non-reversing and non-combination design makes this starter ideal for straightforward motor control applications requiring full voltage starting without reversing capability.
- Part Number: CR306C004
- Manufacturer: General Electric
- Series: CR306 (300 Line)
- NEMA Rating: Size 1
- Amperage: 27A
- Voltage: 600V
- Poles: 3
- Phase: 3-Phase
- Coil Voltage: 460V-480V 50/60Hz AC
- Horsepower: 10 HP at 460-480V, 7.5 HP at 230V
- Enclosure Type: Open
- Overload Protection: 3-Leg Relay
Specifications
- Part Number: CR306C004
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : 300-Line
- Type : CR306
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 460
- Nema Rating : 1
- Nema Starter Size : 1
Product Data
- UPC : 783166356579
- GTIN : 40783166356577
- Country of Origin : United States
- Dimensions : 3.71 in x 7.8 in
- Weight : 8
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, UL Listed
