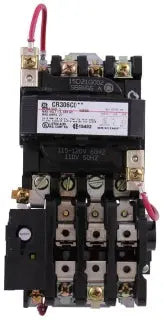

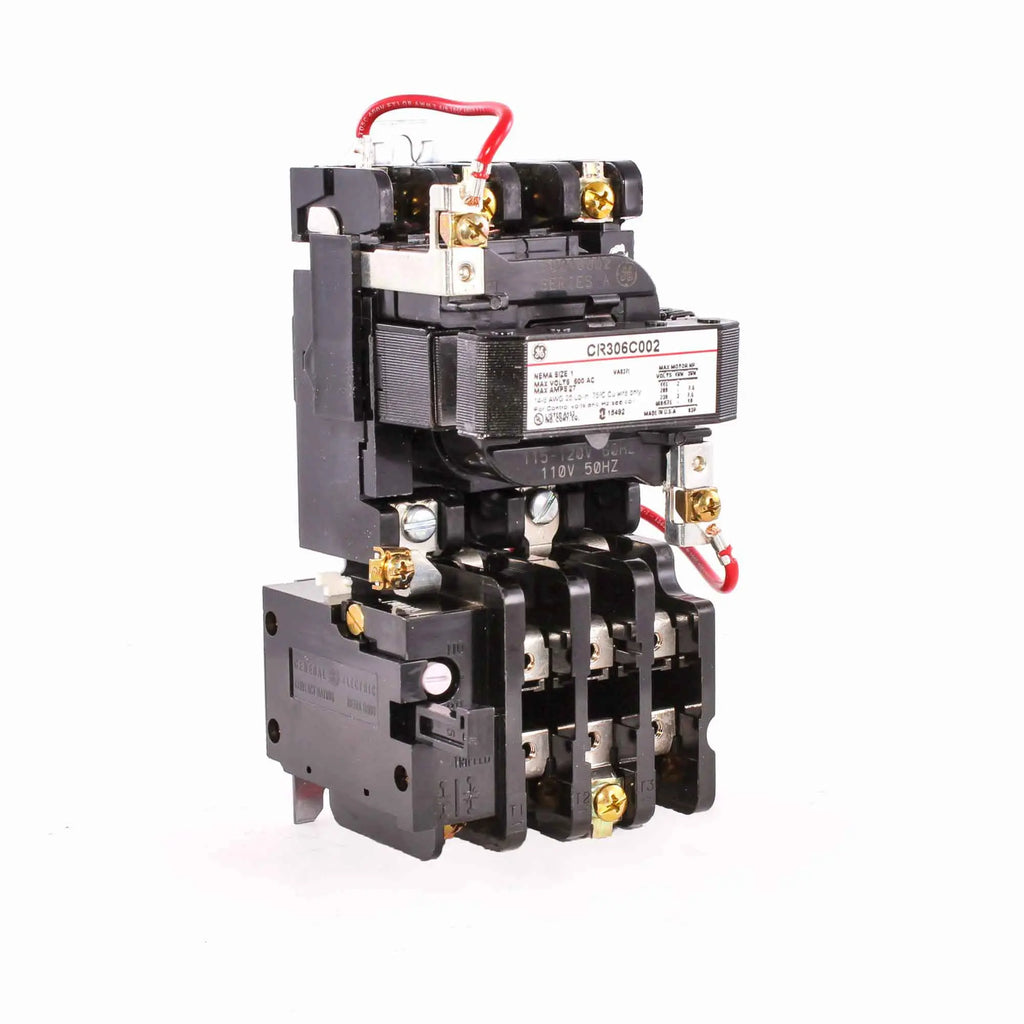

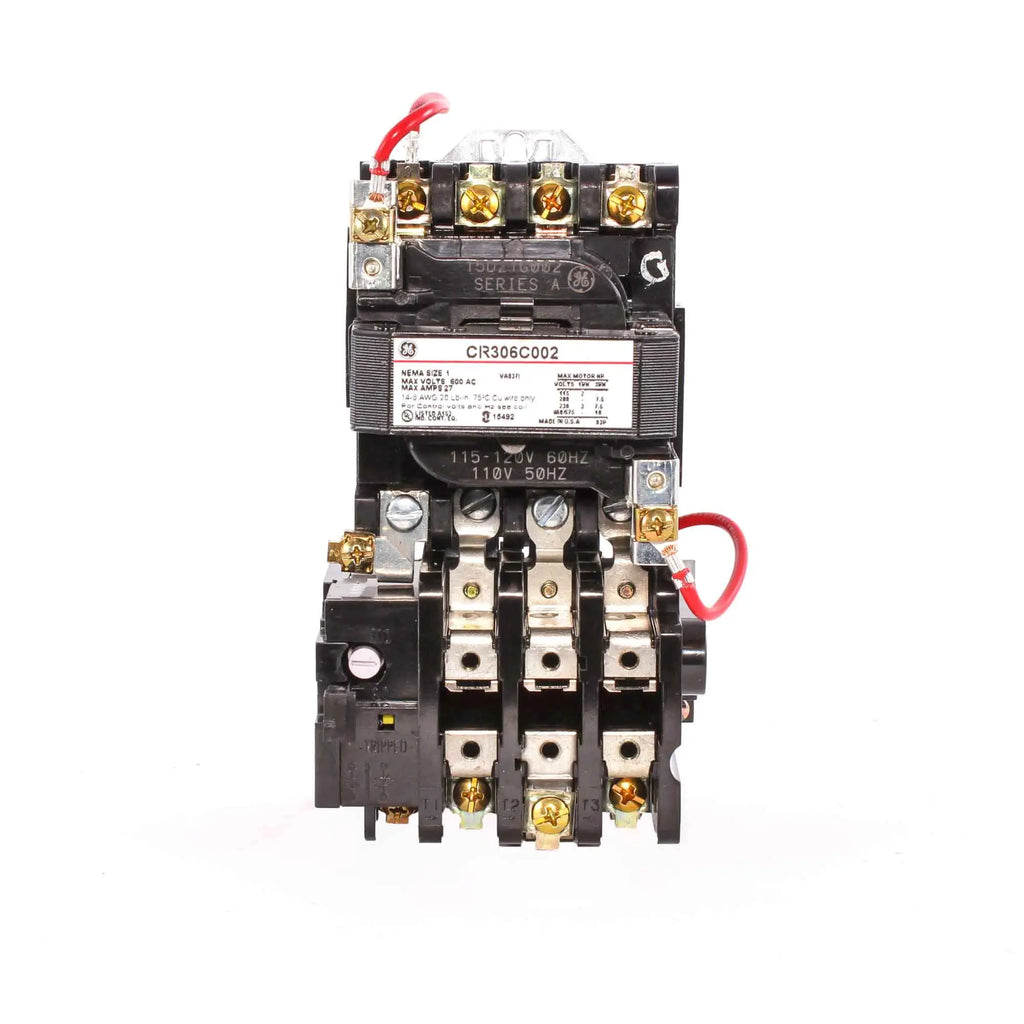

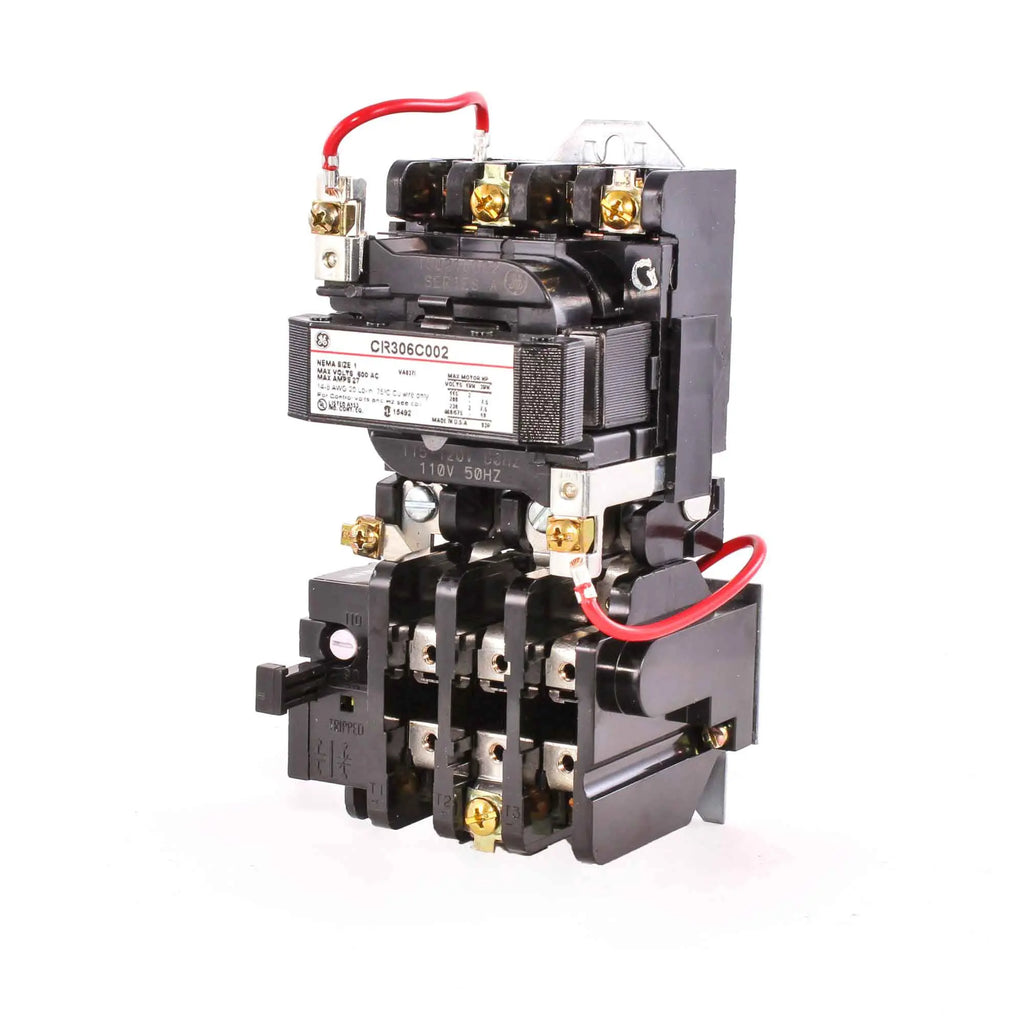

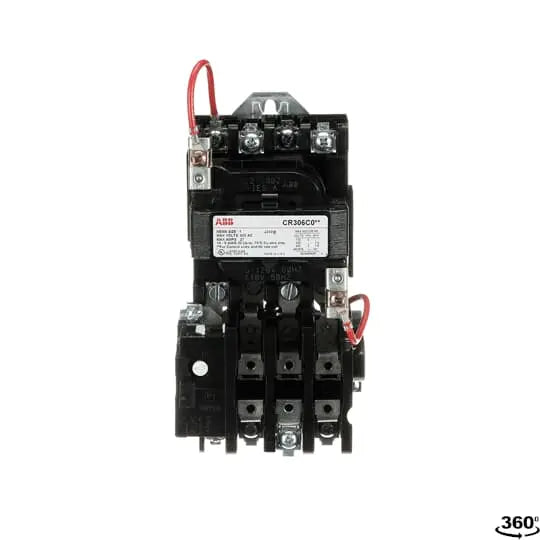

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Motor Starter
- Series
- 300-Line
- Frame
- CR306
- Rated current
- 27
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 115–120 V
- NEMA rating
- 1
- Country of origin
- United States
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Coil Voltage Maximum
- 120
Show all specifications (7 more)
- Coil Voltage Minimum
- 115
- Nema Starter Size
- 1
- UPC
- 783166356005
- GTIN
- 40783166356003
- Dimensions
- 3.71 in x 7.8 in
- Weight
- 8
- Certification
- UL 508
Product description & additional details
CR306C002
CR306C002 is a General Electric NEMA 1 magnetic motor starter designed for reliable three-phase motor control.
This full voltage, non-reversing starter features a 120V AC encapsulated coil, 3-pole contactor, and a 3-leg thermal overload relay for comprehensive phase protection. It is surface mounted in an open enclosure and is compatible with a wide range of industrial applications.
-
Key Specifications
- Manufacturer: General Electric
- Part Number: CR306C002
- Series/Frame: CR306, NEMA Size 1
- Amperage: 27 A continuous
- Voltage: 600V maximum, 3 phase
- Coil Voltage: 120V AC (50/60 Hz)
- Poles: 3
- Mounting Type: Surface, open enclosure
- Interrupt Rating: Not specified in available data
- Trip Unit: Thermal, bimetallic overload relay, manual reset, Class 10/20/30
- Certifications: NEMA construction standard
- Maximum HP: 7.5 HP @ 230V, 10 HP @ 460V, 3 phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CR306C002
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : 300-Line
- Type : CR306
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 115
- Nema Rating : 1
- Nema Starter Size : 1
Product Data
- UPC : 783166356005
- GTIN : 40783166356003
- Country of Origin : United States
- Dimensions : 3.71 in x 7.8 in
- Weight : 8
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : UL 508
