CQD325 - Siemens 3 Pole 25A 480/277V CQD Series DIN Rail Mount Molded Case Circuit Breaker, 14kA Interrupt Rating, Thermal Magnetic Trip

CQD325

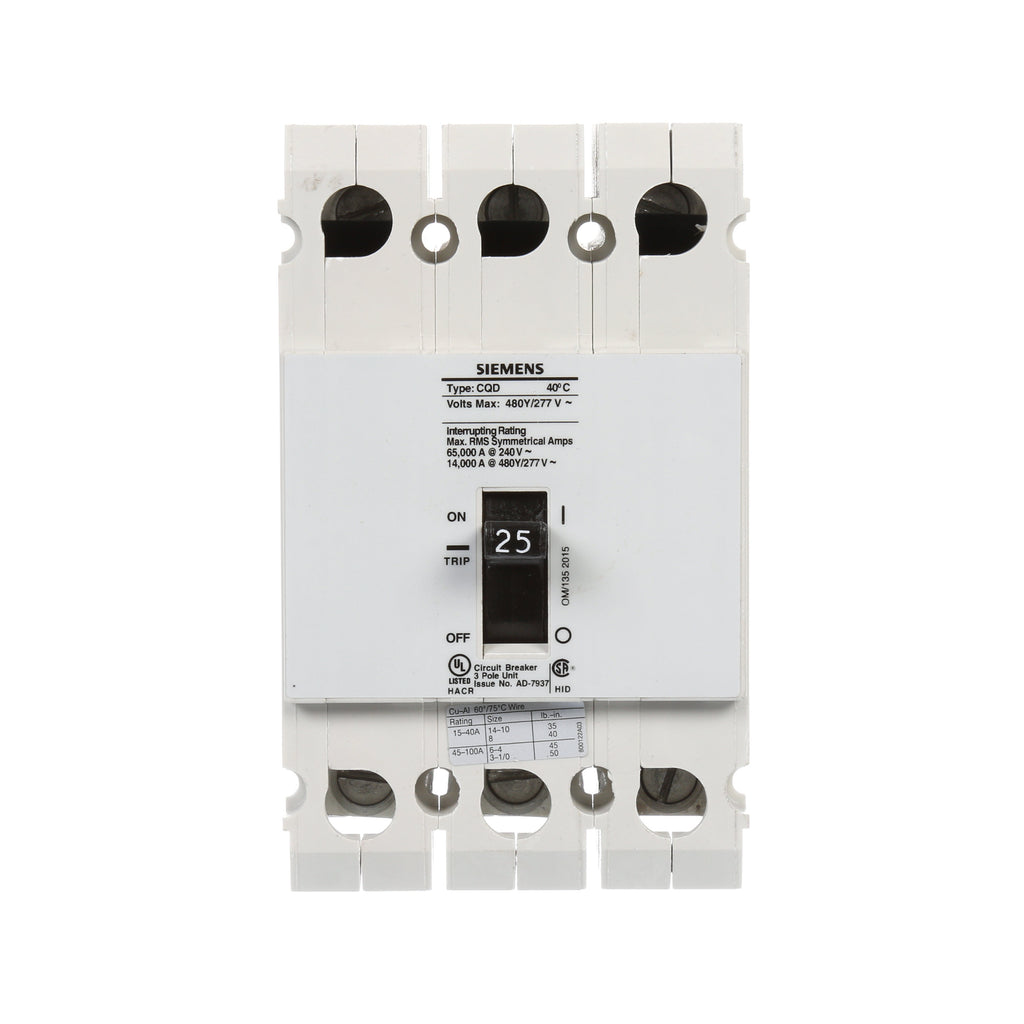

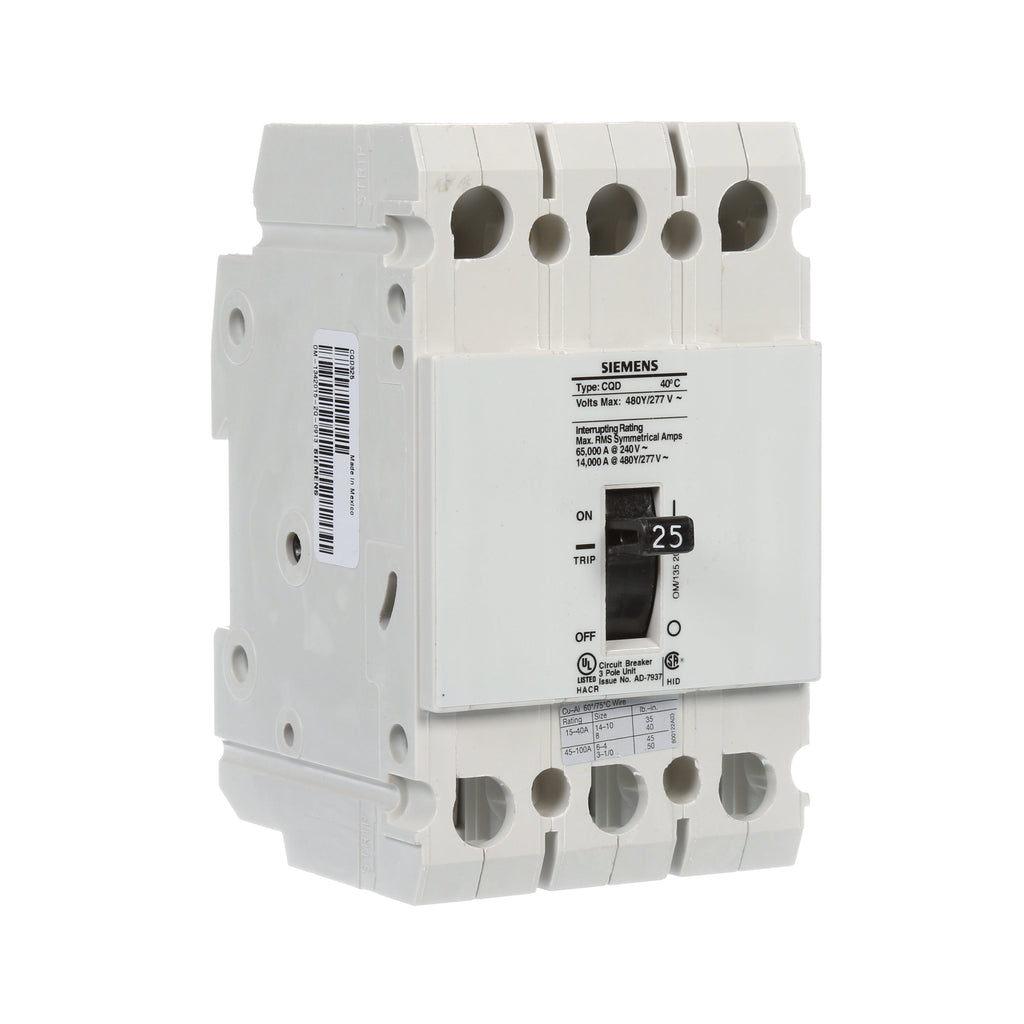

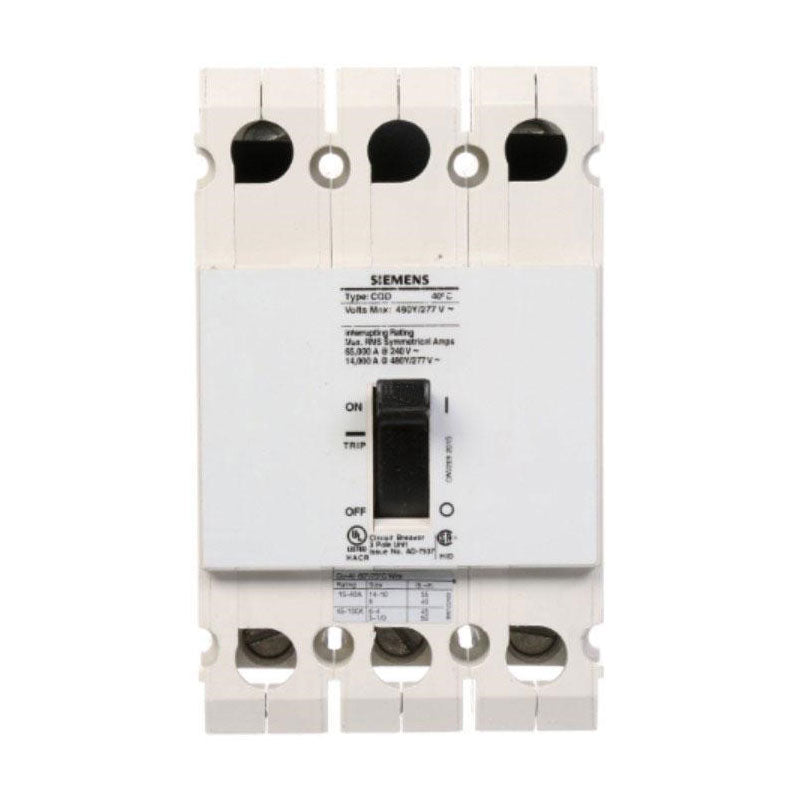

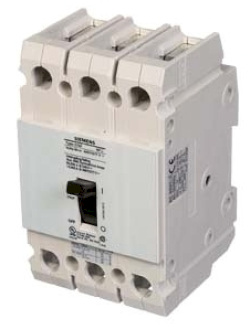

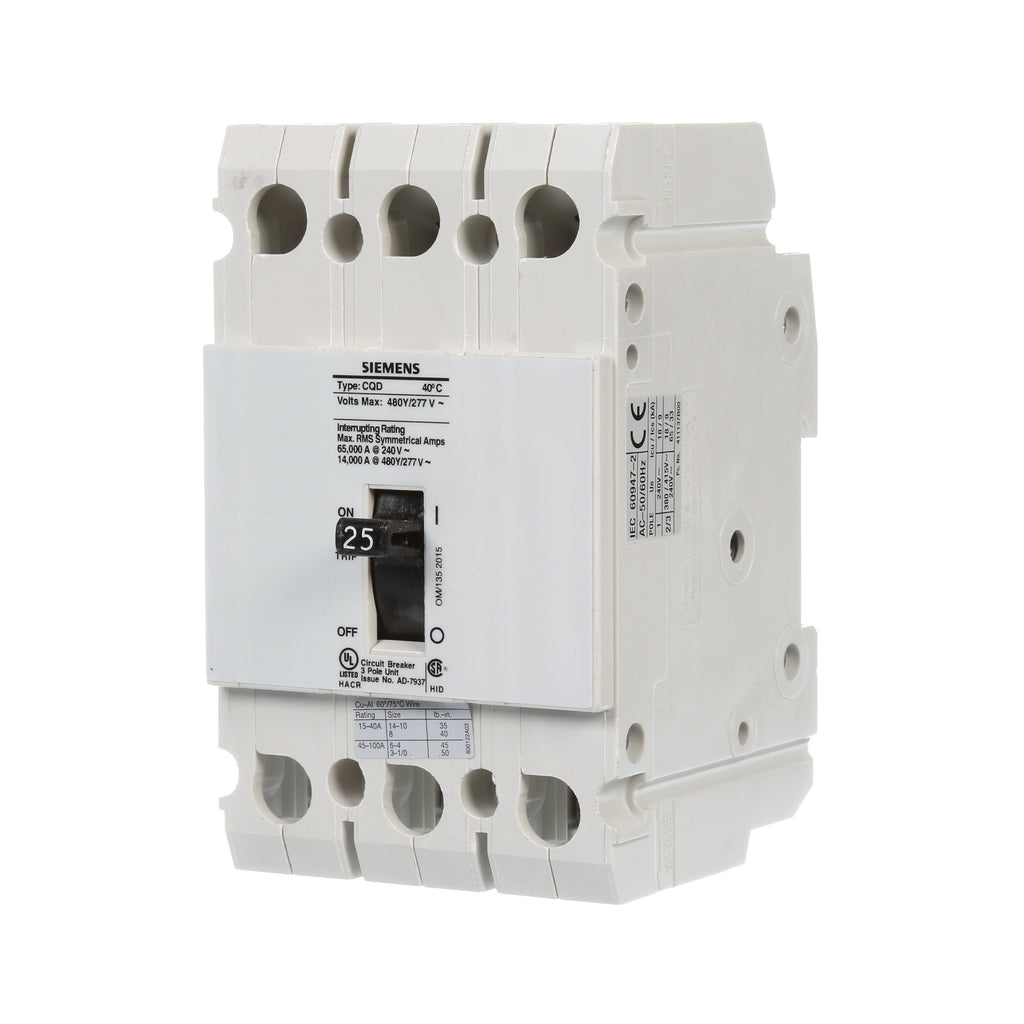

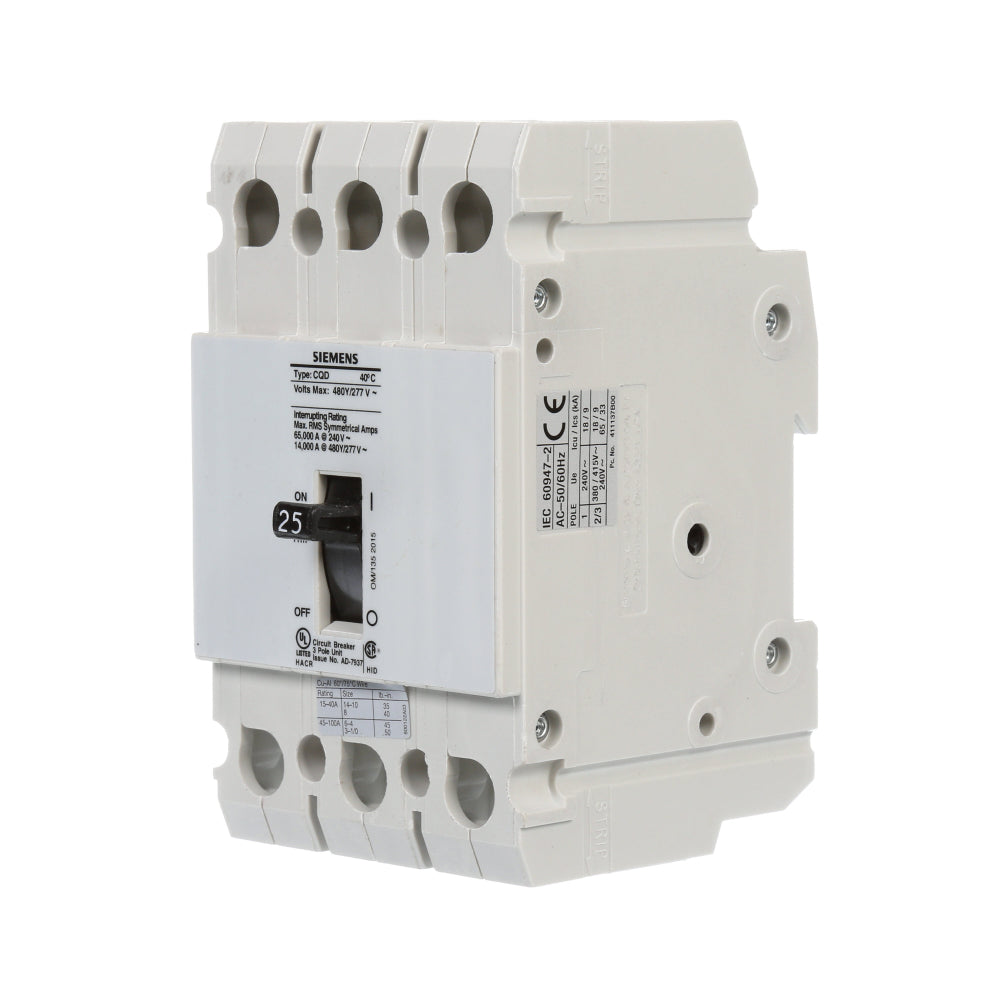

CQD325 is a Siemens 3-pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.

This thermal magnetic circuit breaker features a 25A current rating, 480/277V voltage rating, and 14kA interrupting capacity at 480V. It is part of the CQD series, offers both long-time and instantaneous trip functions, and is UL-listed for safety and compliance. The CQD325 is DIN rail mountable, includes line and load side lug terminals, and accepts 14–6 AWG copper or 12–6 AWG aluminum wire. It is rated for operation at up to 40°C ambient temperature.

Key Specifications
• Part Number: CQD325
• Manufacturer: Siemens
• Amperage: 25A
• Voltage: 480/277V AC
• Poles: 3

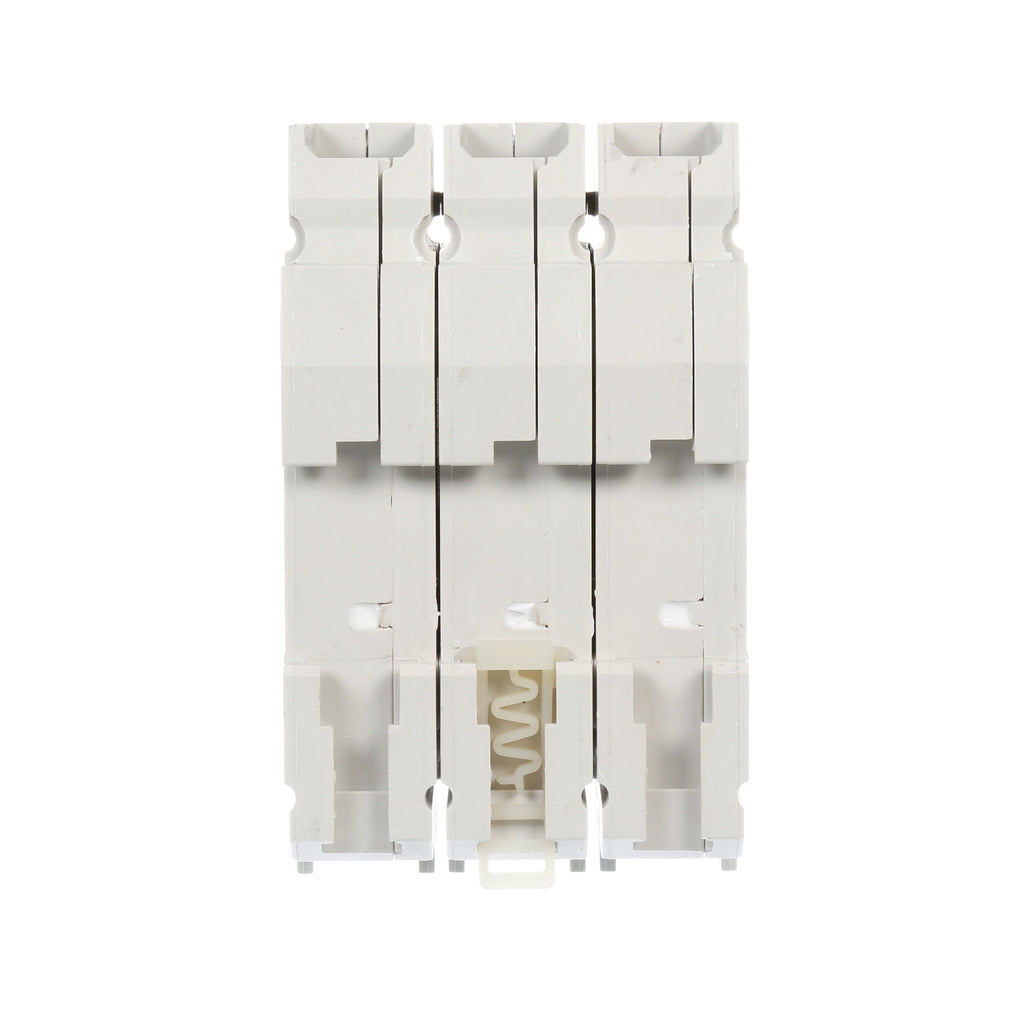

• Mounting Type: DIN Rail
• Interrupt Rating: 14kA at 480V
• Series/Frame: CQD
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Connection: Feed-Thru, Line & Load Side Lug Terminals
• Wire Range: 14–6 AWG Copper, 12–6 AWG Aluminum
• Certifications: UL Listed
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CQD325
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CQD Series
• Type : CQD
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277755
• GTIN : 00783643277755
• Country of Origin : Mexico
• Weight : 2.072
• Wire Size : 14 to 6 AWG Copper, 12 to 6 AWG Aluminum
