2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD320

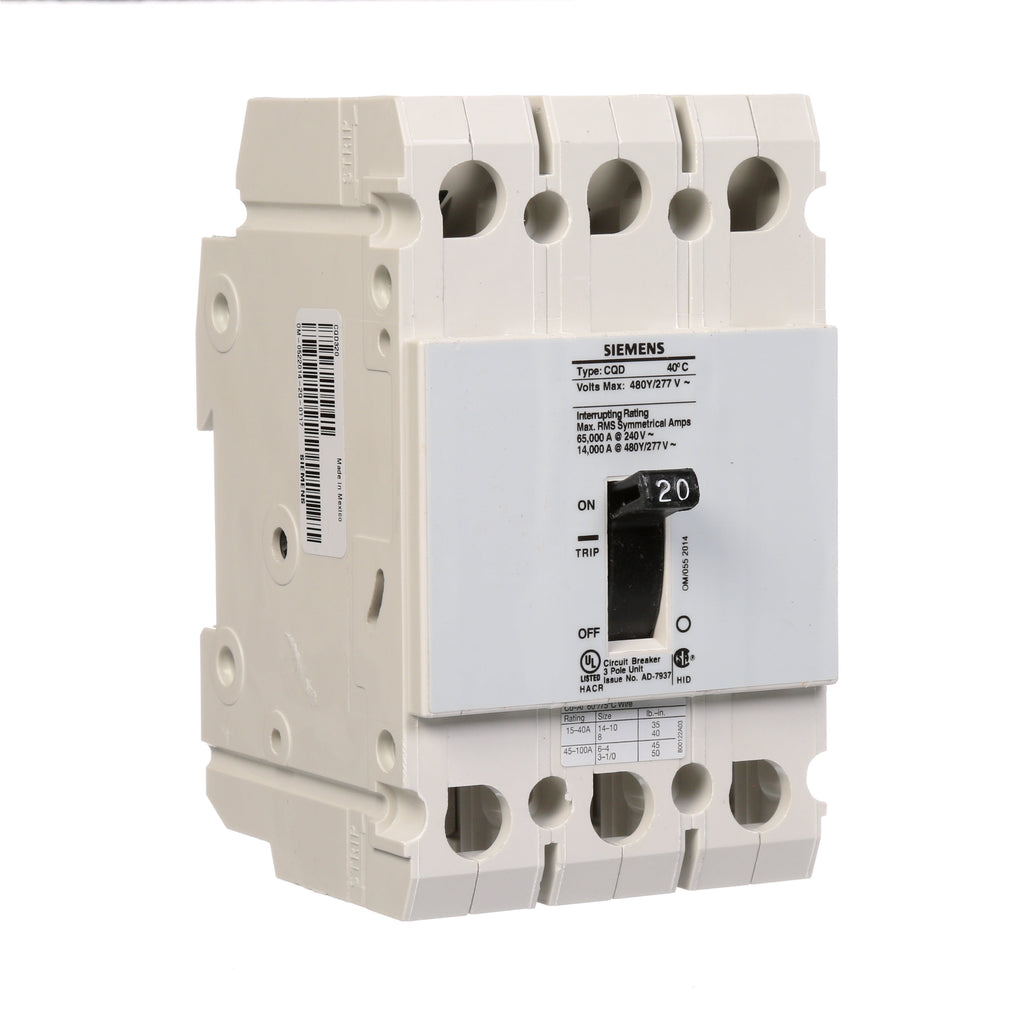

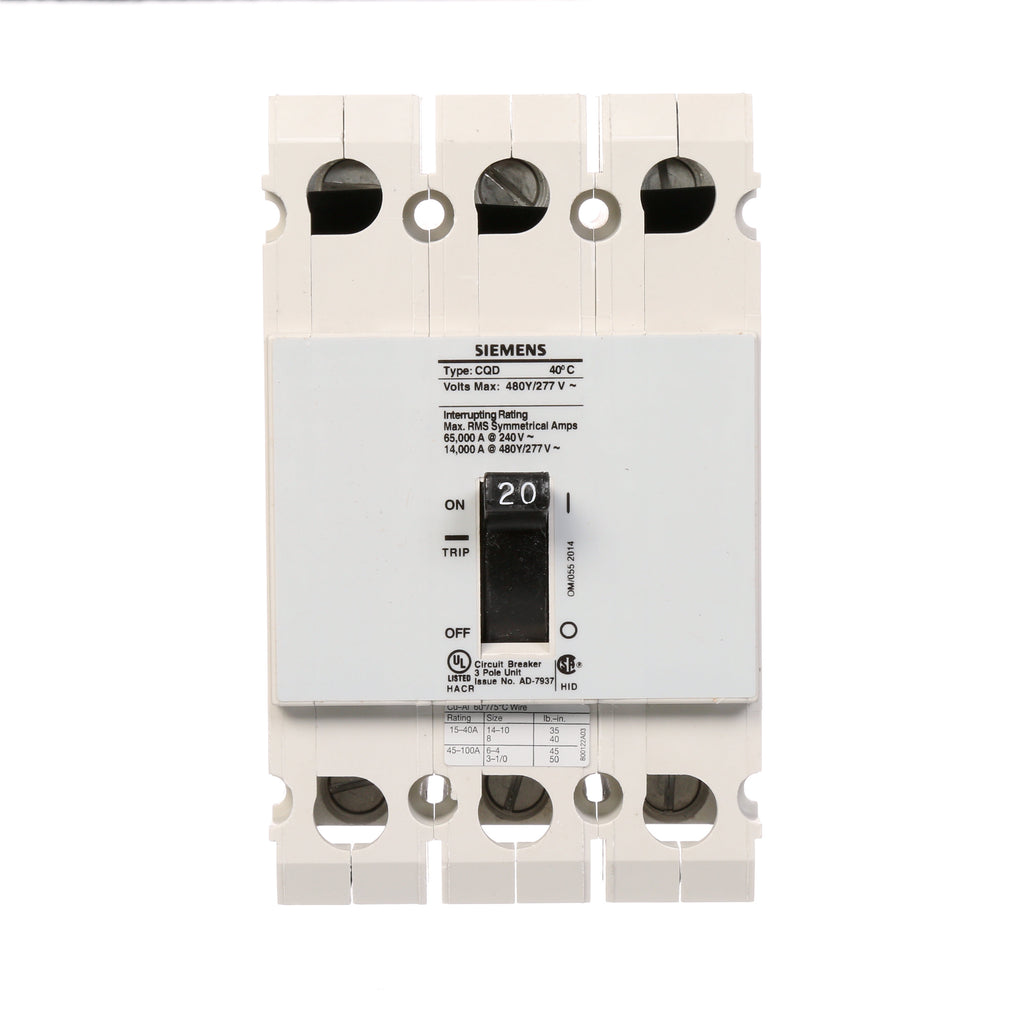

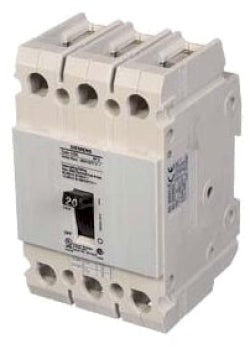

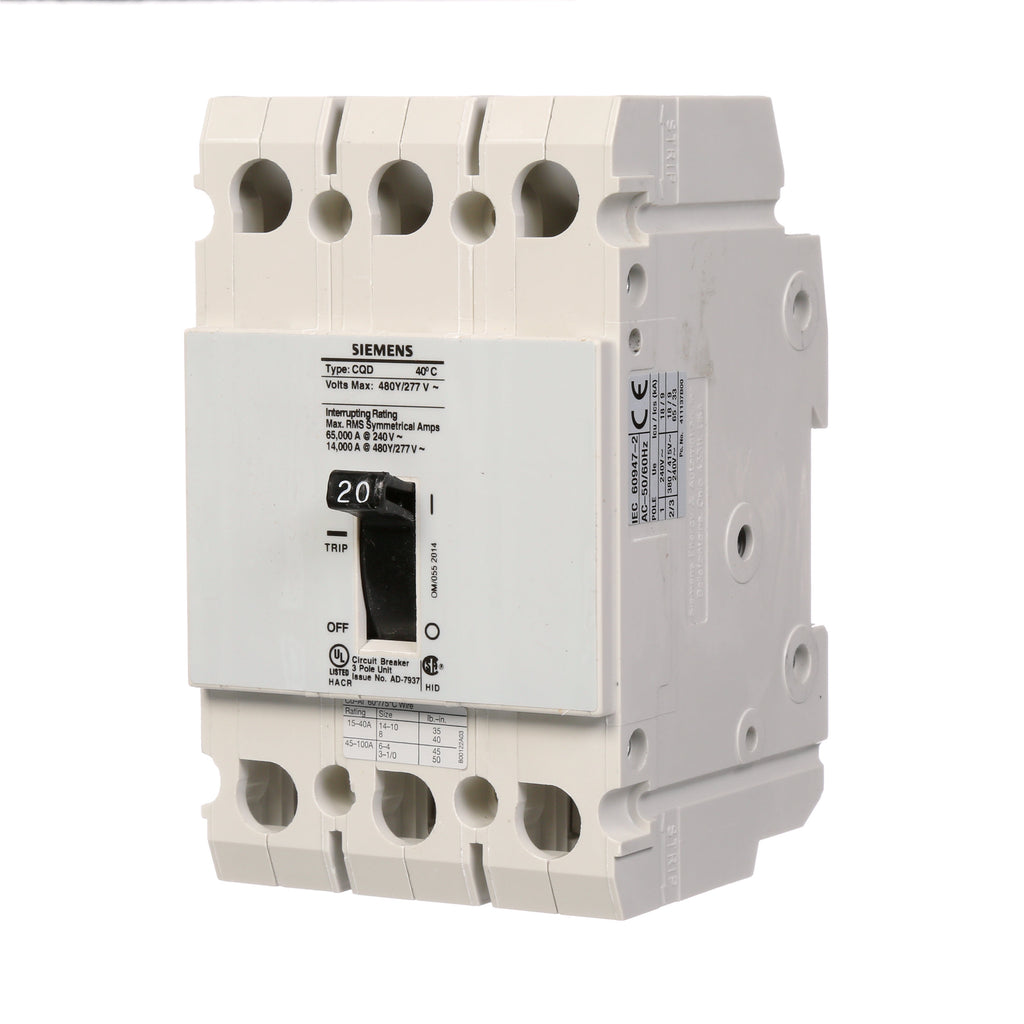

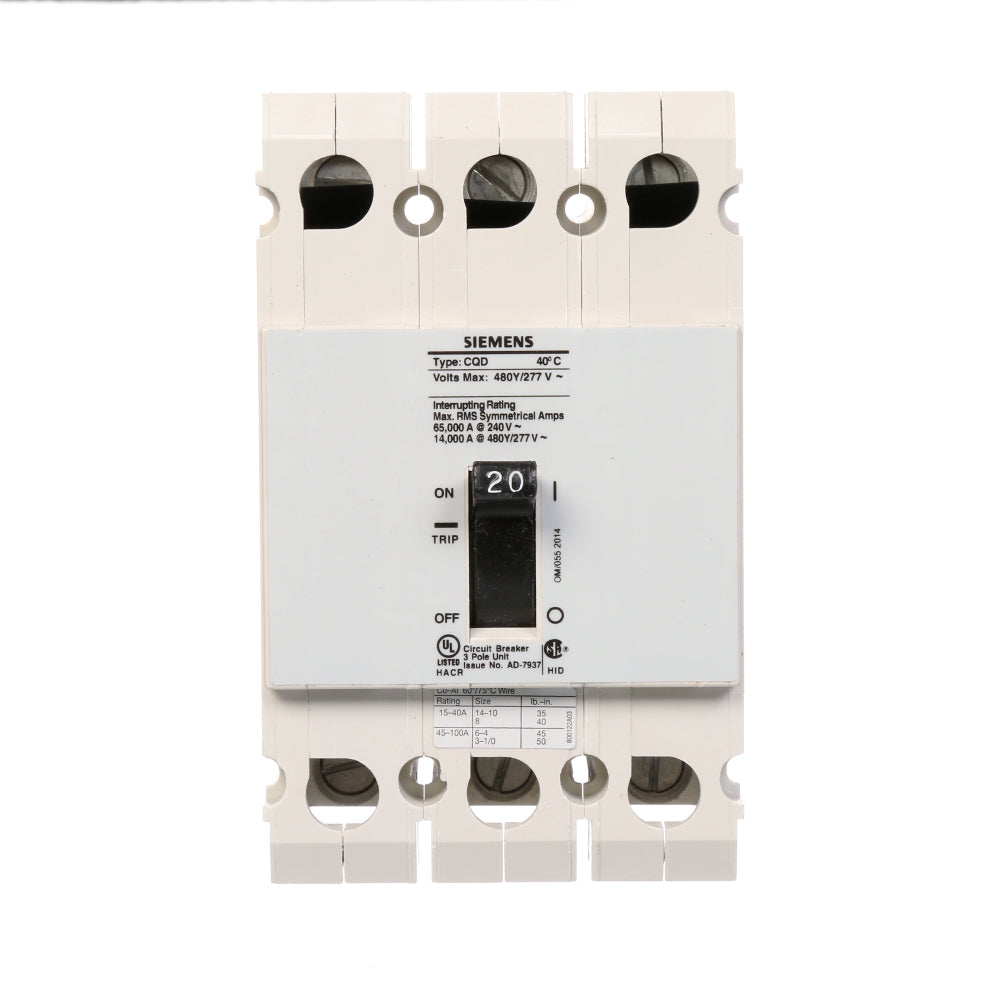

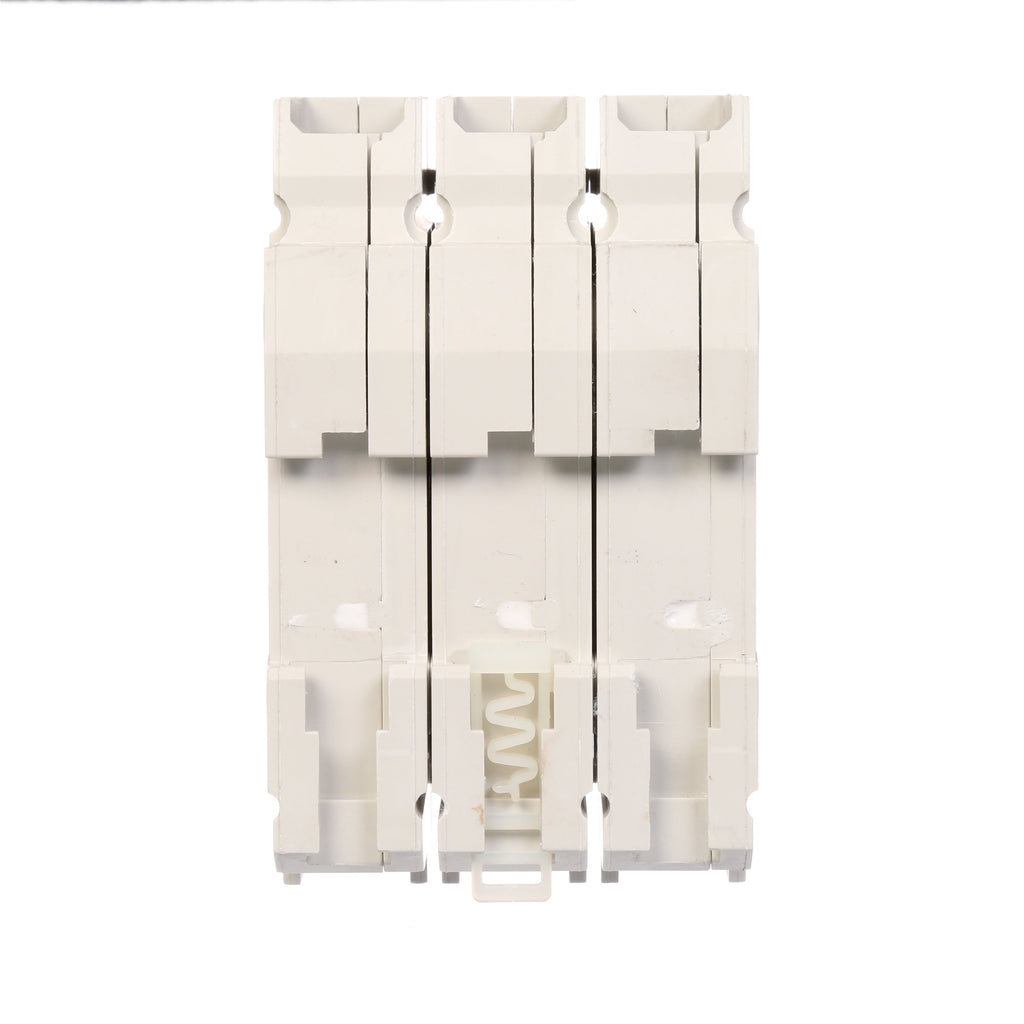

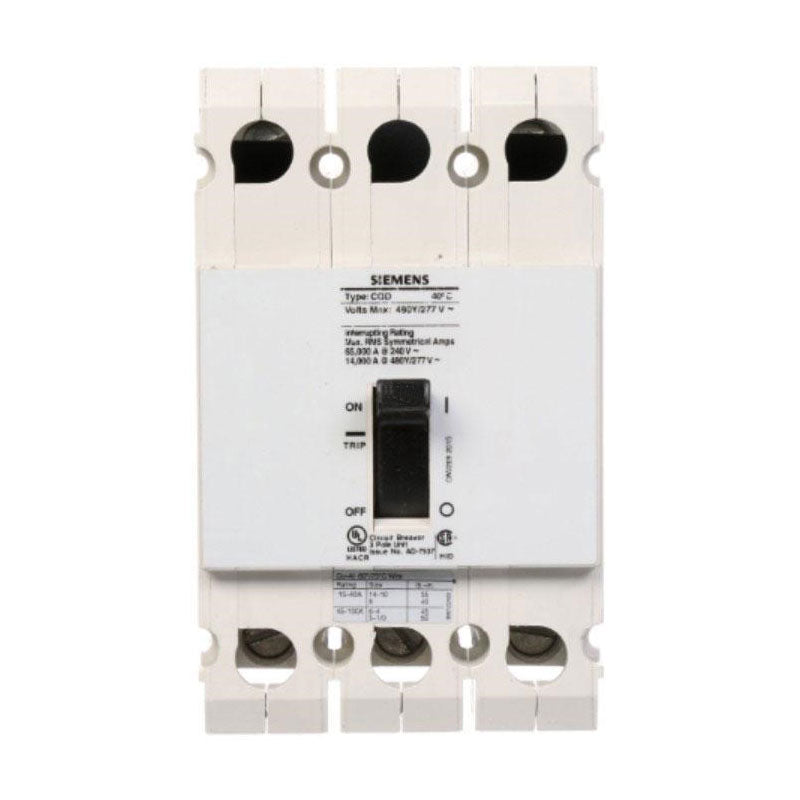

CQD320 is a Siemens 3-pole molded case circuit breaker designed for reliable low voltage circuit protection.
This CQD Series breaker features a thermal magnetic trip unit, 20A current rating, and 480V/277V voltage rating, with a 14kA interrupting capacity. It is engineered for din rail mounting and offers both long-time and instantaneous protection functions, making it suitable for a wide range of commercial and industrial applications.
-
Key Specifications
- Part Number: CQD320
- Manufacturer: Siemens
- Category: Molded Case Circuit Breaker
- Amperage: 20A
- Voltage: 480V/277V AC
- Poles: 3
- Mounting Type: Din Rail
- Interrupt Rating: 14kA at 480V
- Series/Frame: CQD
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Connection: Feed Thru
- Certifications: Standard industrial certifications (exact standards not specified in available data)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CQD320
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277748
- GTIN : 00783643277748
- Country of Origin : Mexico
- Weight : 2.103
- Certification : Ul Listed Csa Certified Ce Marked
- Wire Size : 12 To 6 Awg Aluminum 14 To 6 Awg Copper
