Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD280

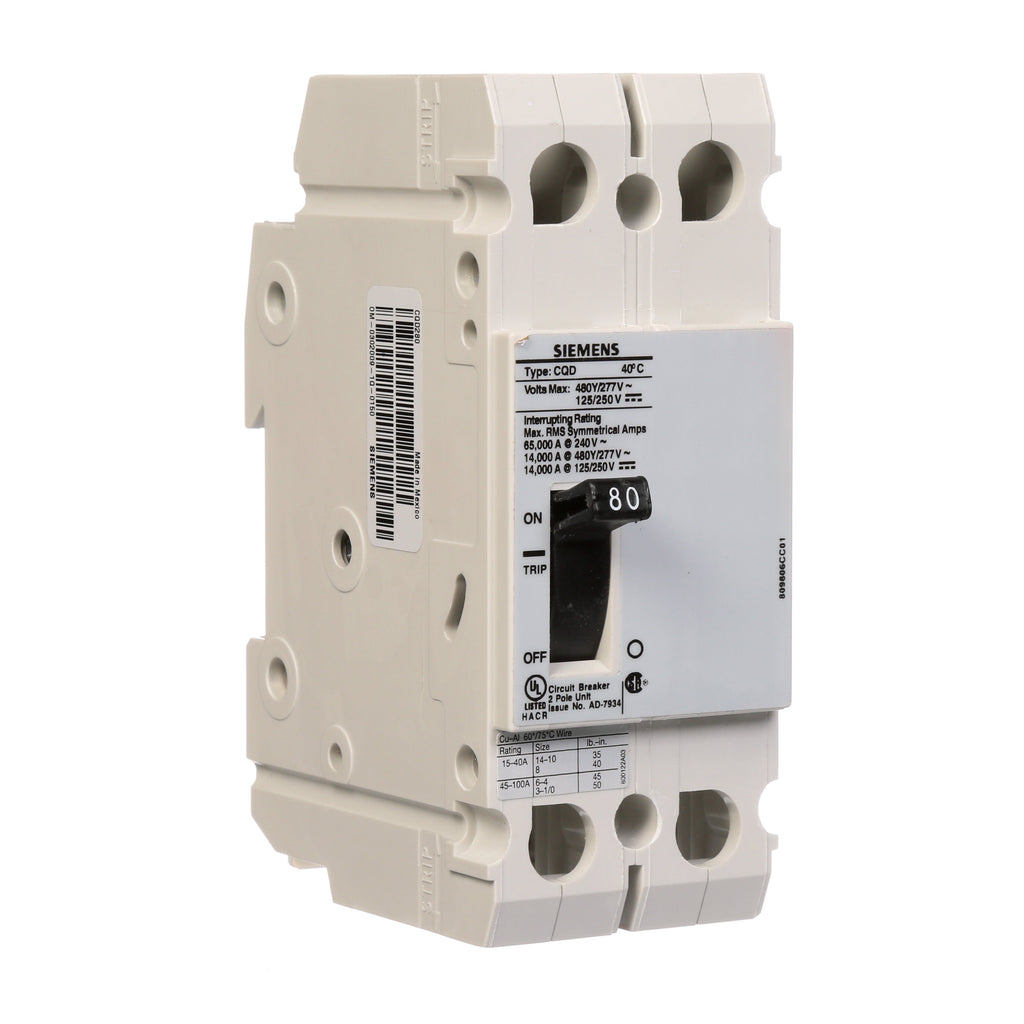

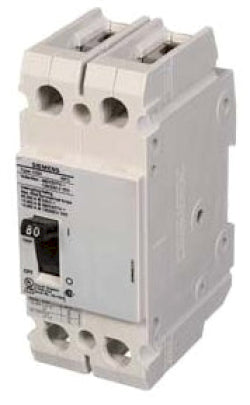

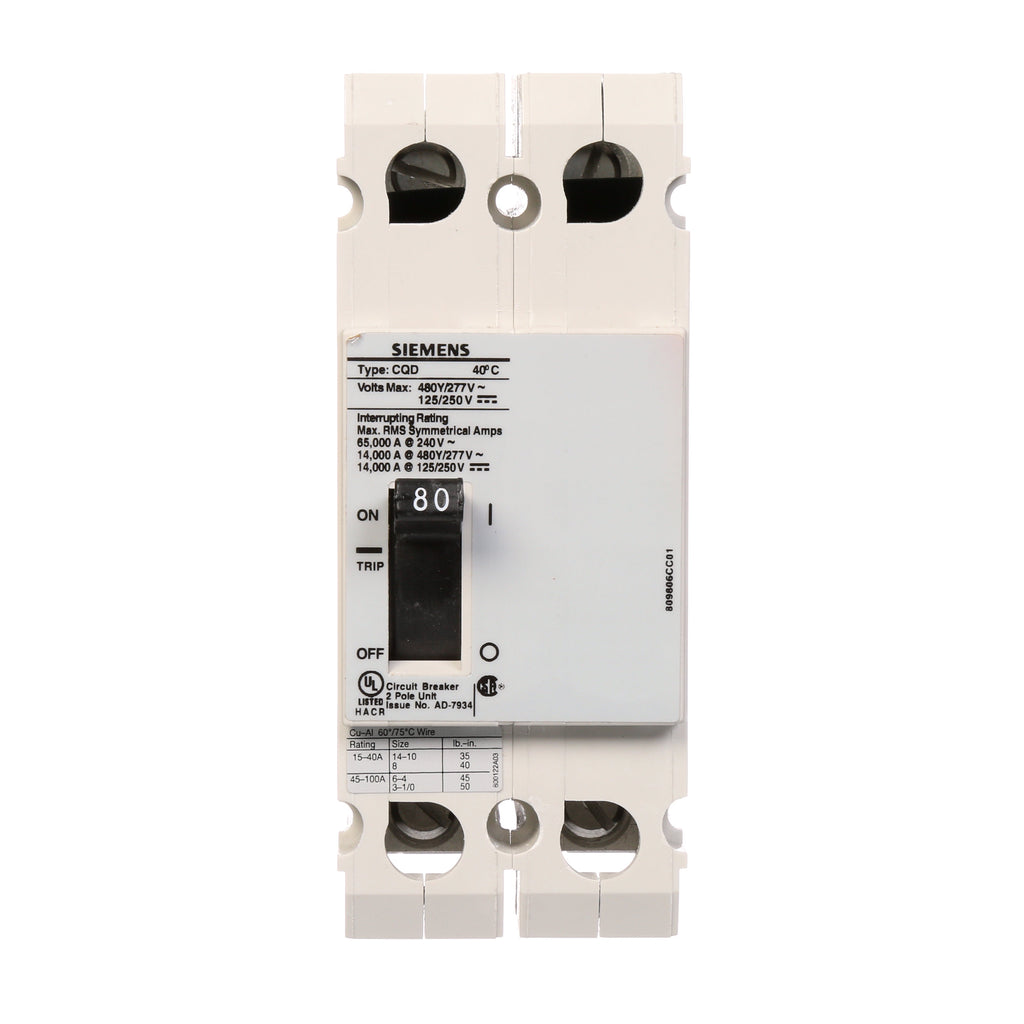

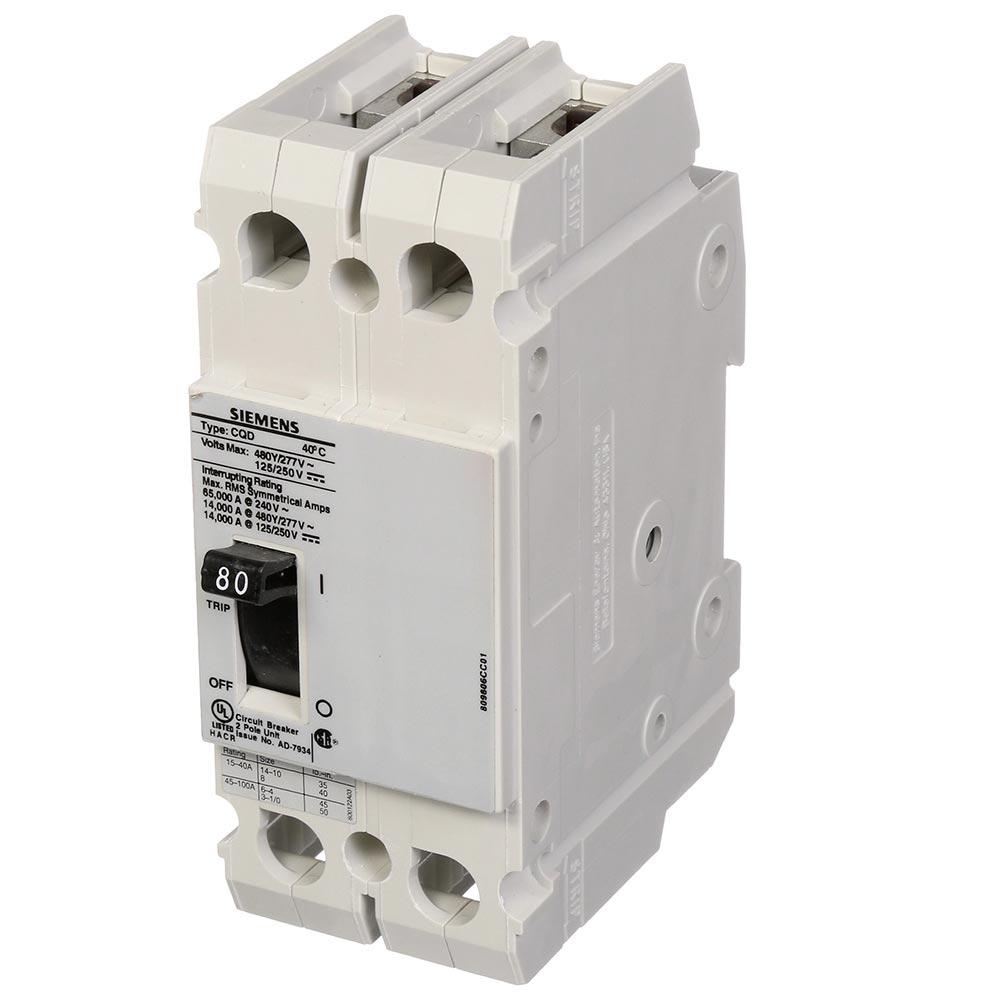

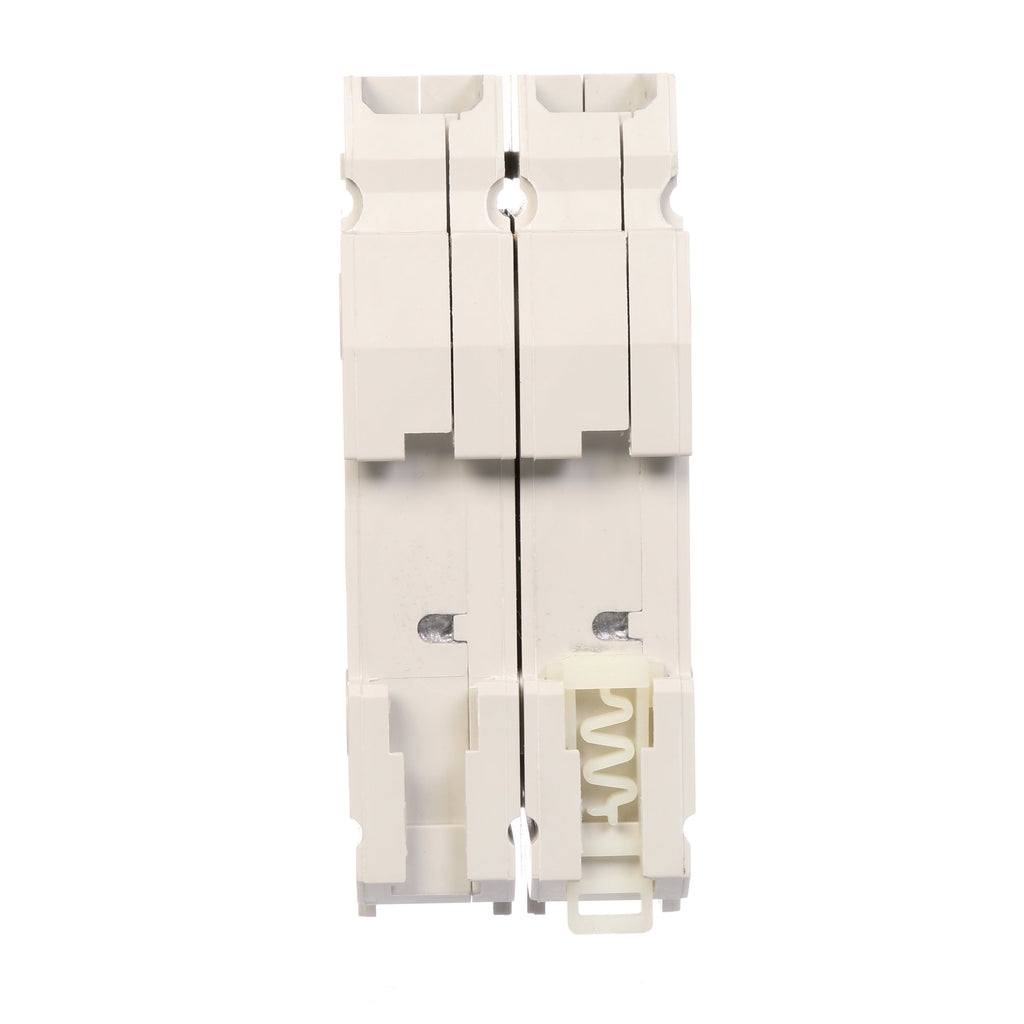

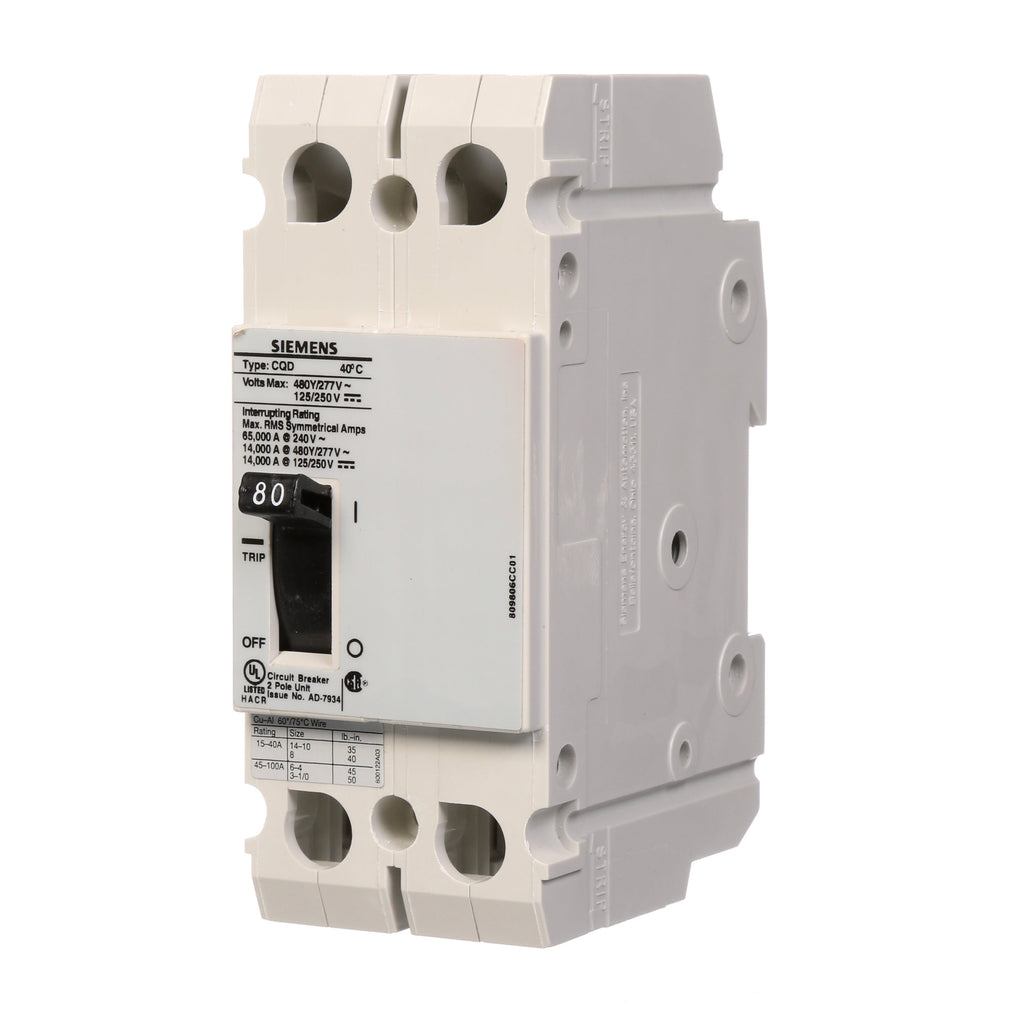

CQD280 is an 80 Amp, 2 Pole molded case circuit breaker from Siemens designed for low voltage power distribution.This Siemens CQD280 circuit breaker features a thermal magnetic trip unit, suitable for 277/480VAC and 125/250VDC applications. It has a high interrupt rating of 65kA at 240VAC and 14kA at 277/480VAC, ensuring reliable protection. The breaker mounts on a DIN rail and belongs to the CQD series, providing robust performance in industrial and commercial electrical systems.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 277/480VAC, 125/250VDC
- Poles: 2
- Mounting Type: DIN Rail
- Interrupt Rating: 65kA at 240VAC, 14kA at 277/480VAC
- Trip Unit: Thermal Magnetic
- Series/Frame: CQD
- UPC/GTIN: 783643277700
- Certifications: UL 489 Listed
Specifications
- Part Number: CQD280
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277700
- GTIN : 00783643277700
- Country of Origin : Mexico
- Weight : 1.601
- Certification : UL, CSA
- Wire Size : 6 to 1/0 AWG Aluminum, 8 to 1 AWG Copper
