Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
CP500C1

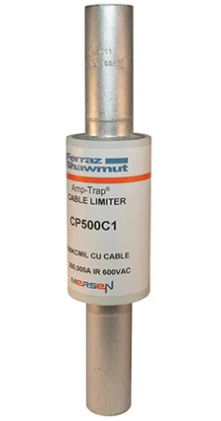

CP500C1 is a Mersen cable fuse designed for high interrupting capacity applications with a 600V AC rating and 200kA interrupt rating.
This CP Series Type C1 fuse features a cylindrical body with crimp mounting, suitable for protecting cables in industrial and electrical distribution systems. It is rated for 600VAC with an interrupting rating of 200kA at 600V, ensuring reliable current limiting protection. The fuse is constructed with tin-plated copper terminals and designed for 500 MCM conductor size. It complies with industry standards for safety and performance.
- Voltage Rating: 600VAC
- Interrupting Rating: 200kA at 600V
- Mounting Type: Crimp
- Series: CP Series Type C1
- Body Style: Cylindrical
- Connection Material: Tin-Plated Copper
- Conductor Size: 500 MCM
- AC Only (Not rated for DC)
- Frequency: 50/60 Hz
- Current Limiting Fuse
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CP500C1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : CP
- Voltage : 600
- AIC rating : 200kA@600V
- Connection : Tubular
- Temp Rating : -13–158 °F (-25–70 °C)
- Class Rating : Cable Protector
Product Data
- UPC : 782001931636
- GTIN : 00782001931636
- Country of Origin : Mexico
- Dimensions : x 9.38 in x
- Weight : 5
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL listed to File E305297
